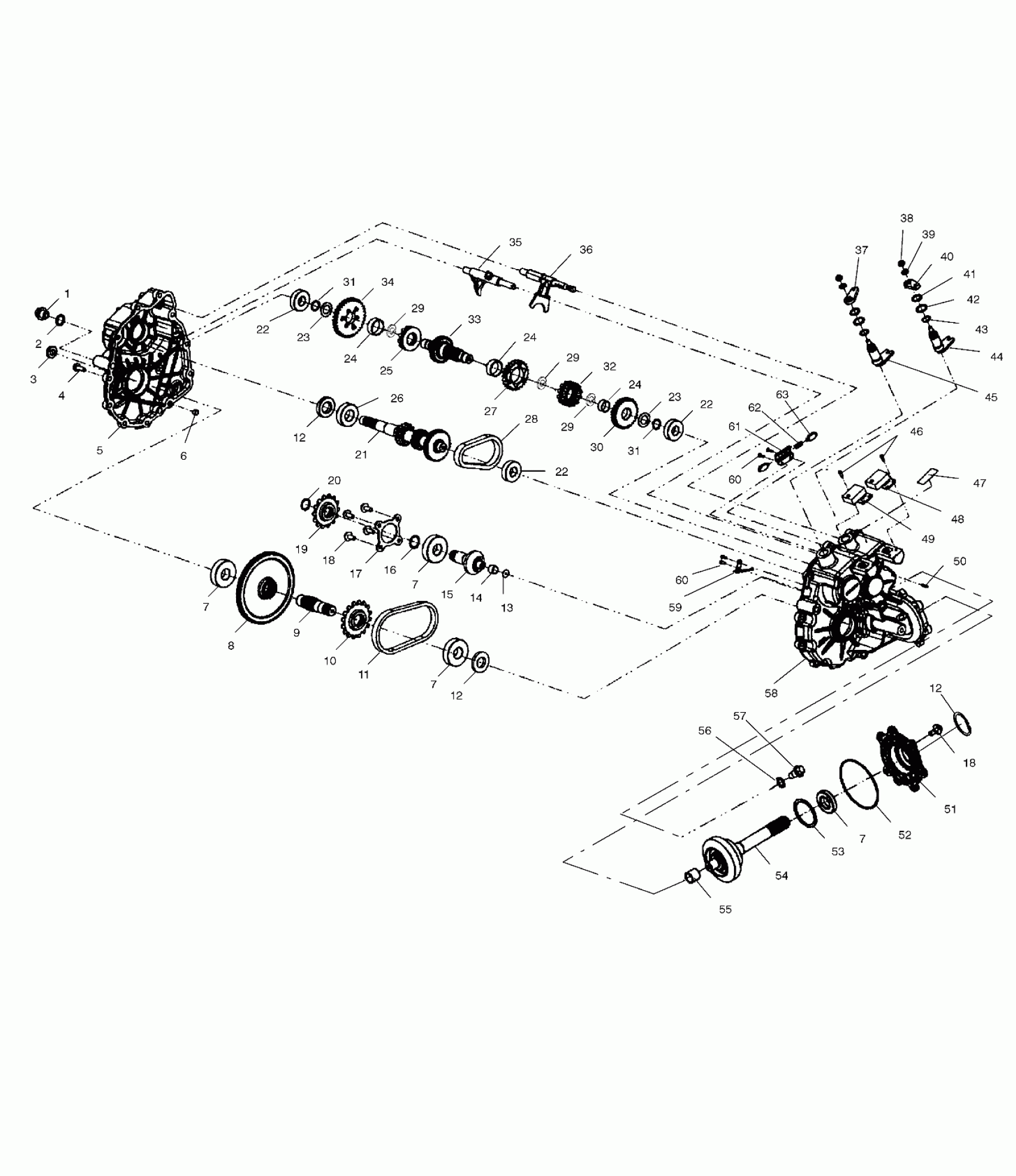

Polaris SPORTSMAN 6X6 - A00CL50AA GEARCASE - A00CL50AA (4954815481D001) Diagram

#

Description
Price

-

GEARCASE,HLR,HYBRID,6X6 (Incl. 1-63)

1341291

Unavailable

1

Plug

3233448

$23.81

2

Washer

3233035

Unavailable

3

BUSHING,PIVOT

3233527

$39.99

4

Screw

3233252

$5.69

5

GEARCASE-LH

3233632

$354.99

6

PIPE,KNOCK

3233529

$10.99

7

BEARING

3233020

$47.62

7

BEARING

3233020

$47.62

7

BEARING

3233020

$47.62

7

BEARING

3233020

$47.62

8

GEAR,O/P,100T,HCR

3233360

Unavailable

9

SHAFT,OUTPUT

3233544

$174.99

10

SPROCKET,15/26T

3233729

$97.13

11

CHAIN,ROLLER

3233546

$68.79

12

Seal

3233248

$32.37

12

Seal

3233248

$32.37

12

Seal

3233248

$32.37

13

WASHER,THRUST

3233542

$11.32

14

BUSHING,GARLOCK

3233541

$23.81

15

SHAFT,PINION,13T

3233540

$158.73

16

RING,RETAINING

3233306

$4.76

17

COVER,CTR.DRIVE BRG.

3233263

Unavailable

18

Screw

3233539

Unavailable

18

Screw

3233539

Unavailable

19

SPROCKET,15/22T

3233730

Unavailable

20

RING,RETAINING

3233537

$6.99

21

SHAFT-INPUT HIGH/LOW/REVERSE

3233704

Unavailable

22

BEARING-BALL,6307 C3,35X80X21

3233018

$27.78

22

BEARING-BALL,6307 C3,35X80X21

3233018

$27.78

22

BEARING-BALL,6307 C3,35X80X21

3233018

$27.78

23

Washer

3233176

$9.52

23

Washer

3233176

$9.52

24

BEARING,NDL,SPLIT CAGE

3233718

$35.71

24

BEARING,NDL,SPLIT CAGE

3233718

$35.71

24

BEARING,NDL,SPLIT CAGE

3233718

$35.71

25

DOG,ENGAGEMENT,LOW

3233732

$178.08

26

BEARING, BALL, 6205 C3 25X52X15

3233019

$31.75

27

SPROCKET,24T

3233719

$109.27

28

CHAIN,SILENT,34P

3233036

Unavailable

29

RING,RET-RING,EXTERNAL

3233720

$9.52

29

RING,RET-RING,EXTERNAL

3233720

$9.52

29

RING,RET-RING,EXTERNAL

3233720

$9.52

30

GEAR,30T

3233722

Unavailable

31

RING,RETAINING

3233177

$6.46

31

RING,RETAINING

3233177

$6.46

32

DOG,ENGAGEMENT,HIGH/REV

3233721

Unavailable

33

SHAFT,REVERSE,29T

3233733

Unavailable

34

GEAR,33T

3233731

Unavailable

35

SHIFT FORK-LOW

3233706

$119.05

36

FORK,SHIFT,HIGH/REV

3233633

$141.65

37

Bellcrank

3233547

$56.99

38

Nut

3233055

$3.32

39

Washer

3233054

$6.46

40

Bellcrank

3233153

$32.37

41

RING,RETAINING BASIC,EXTERNAL 0.75

3233045

$4.76

42

Washer

3233040

$9.52

43

O-Ring

3233548

$33.24

44

SHAFT,SHIFT,HIGH/REVERSE

3233737

$71.43

45

SHAFT,SHIFT

3233549

Unavailable

46

SCREW Substituted by 3233749

3233691

$5.65

47

DECAL-SWITCH

3233636

Unavailable

48

SWITCH-H/R,ITW

3233635

$174.99

49

SWITCH,ITW 2 POSITION

3233617

Unavailable

50

Vent

3233037

Unavailable

51

COVER,SNORKEL

3233556

$31.11

52

O-Ring

3233555

$6.06

53

SHIM

3233554

$39.99

54

SNORKEL,SUBASM,SHAFT

3233723

Unavailable

55

BUSHING-GARLOCK

3233552

$23.81

56

Washer

3233324

$8.54

57

PLUG,OIL FILL

3233711

Unavailable

58

GEARCASE,RH,H/L/R

3233799

Unavailable

59

DEFLECTOR,OIL

3233043

$13.10

60

SCREW Substituted by 3233747

3233033

Unavailable

60

SCREW Substituted by 3233747

3233033

Unavailable

61

BRACKET,INTERLOCK

3233309

$20.48

62

Spring

3233032

$13.75

63

PIN,INTERLOCK

3233308

Unavailable
