Description

Price

1

CAP, GAS, (BLACK)

5430725

$24.27

2

GASKET-GAS CAP

5810144

$5.59

3

SEAL-FOAM,21 IN

5811310

Unavailable

4

FUEL LINE,1/8 ID,600 CM.

8360009-600

Unavailable

5

Vent, Tank

5431053

$19.99

6

Bolt

7517451

$5.59

7

LOCK WASHER(10)

7552801

$1.59

8

WASHER(10)

7558301

$1.49

9

BRKT,LH.R.FUELCOVER,BLK.

5222154-067

Unavailable

9

BRKT,RH.R.FUELCOVER,BLK.

5222155-067

Unavailable

10

Spacer

5332457

Unavailable

11

NUTSERT,HEX(10)

7547069

$3.99

12

PAD,FUELTANK BRKT. Substituted by 8360026

5810317

Unavailable

13

FOIL,FLTNK,6X6,9.5X7.125

5812005

$19.30

14

ELBOW, MAIN

7052147

Unavailable

15

FUEL LINE,1/4 ID(600 CM.)

8450040-600

Unavailable

16

HOSE CLAMP, RED

7080003

$1.49

16

HOSE CLAMP, RED

7080003

$1.49

17

FITTING,FUEL OUT,90DEG,RES,Z

7052148

Unavailable

18

SCREW(10)

7517505

$1.59

19

KNOB,FUEL VALVE

5432559

$10.39

20

NUT,FUELVALVE,ATV

5432733

Unavailable

21

VALVE,3-WAY

7052161

$39.99

22

FOIL,FUELTANK,6X6

5812004

Unavailable

23

TANK,FUEL ASM. (Incl. 14,17)

2520166

Unavailable

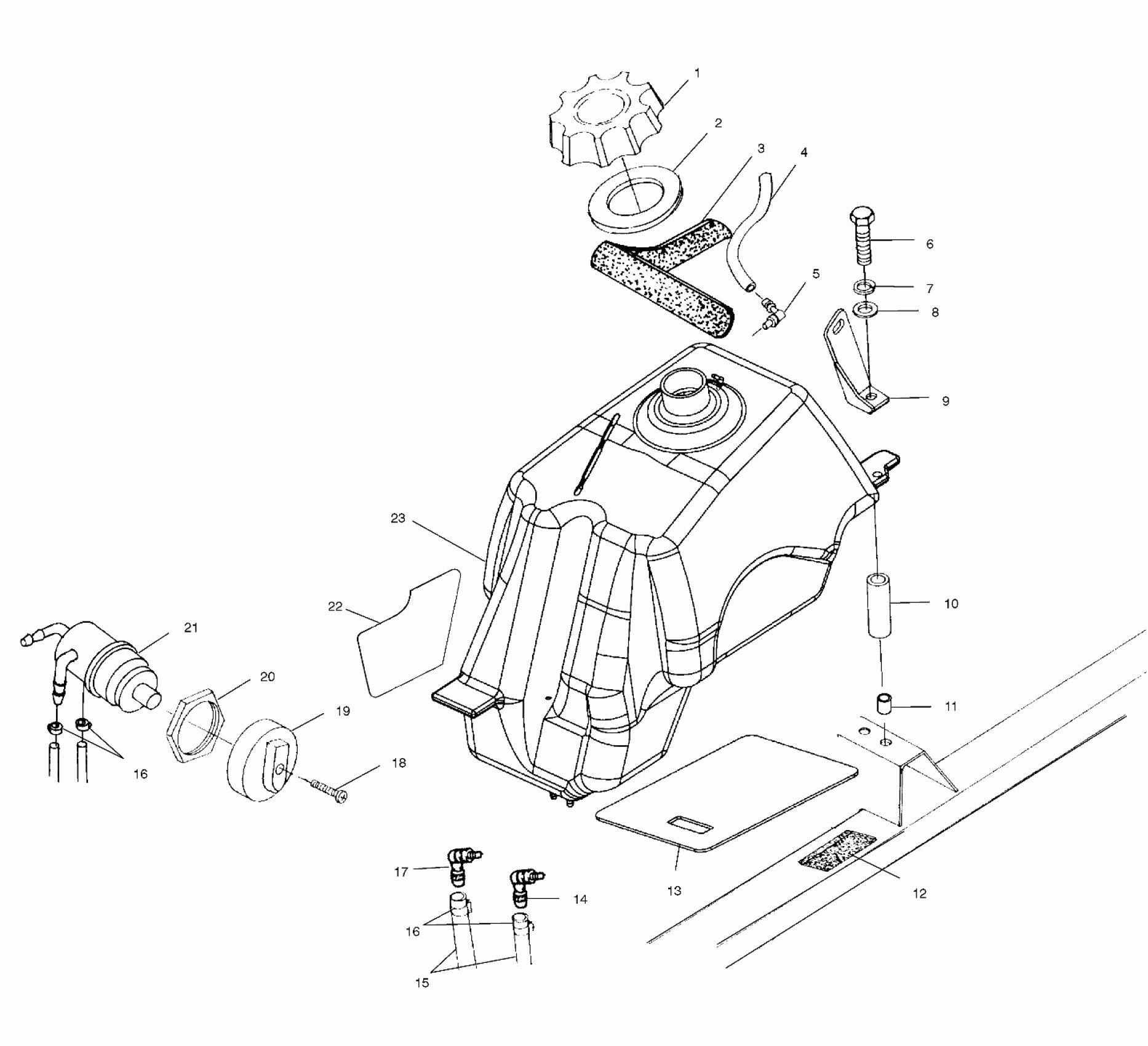

Polaris SPORTSMAN 6X6 - A00CL50AA FUEL TANK - A00CL50AA (4954815481A013) Diagram

CAP, GAS, (BLACK)

GASKET-GAS CAP

SEAL-FOAM,21 IN

FUEL LINE,1/8 ID,600 CM.

Vent, Tank

Bolt

LOCK WASHER(10)

WASHER(10)

BRKT,LH.R.FUELCOVER,BLK.

BRKT,RH.R.FUELCOVER,BLK.

Spacer

NUTSERT,HEX(10)

PAD,FUELTANK BRKT. Substituted by 8360026

FOIL,FLTNK,6X6,9.5X7.125

ELBOW, MAIN

FUEL LINE,1/4 ID(600 CM.)

HOSE CLAMP, RED

HOSE CLAMP, RED

FITTING,FUEL OUT,90DEG,RES,Z

SCREW(10)

KNOB,FUEL VALVE

NUT,FUELVALVE,ATV

VALVE,3-WAY

FOIL,FUELTANK,6X6

TANK,FUEL ASM. (Incl. 14,17)
