Description

Price

1

BOLT(10)

7512325

$2.39

2

DISC,BRAKE

5242935

$89.03

3

SEAL, FR. HUB

3610019

$35.99

4

Plate, Armature

5211148

$23.99

5

CLUTCH,FR HUB E/M

1520281

$354.99

6

BRG,TAPER.ROLL.CONE

3554506

$31.99

6

BRG,TAPER.ROLL.CONE

3554506

$31.99

7

BRG,TAPER,ROLL CUP

3554507

$31.99

7

BRG,TAPER,ROLL CUP

3554507

$31.99

8

STUD(10)

7515523

$3.19

9

HUB ASM,SHRT(3-LOBE)W/BRG RACE (Incl. 3,7,8)

1520243

Unavailable

10

Cage, Roll

3250028

$218.56

11

ROLLS

3250010

$35.99

12

SPRING,GARTER

3250032

$17.59

13

Spacer

1321814

$24.99

14

Cam

3250030

$198.48

15

PLUG,PIPE

7052045

$12.79

16

TIRE,FR(25X8-12) (25x8-12)

5410947

Unavailable

17

WASHER

7556004

$7.19

18

NUT, SLOTTED(10)

7542810

$3.19

19

COTTER PIN(10)

7661401

$1.49

20

O RING

5410470

$2.41

21

CAP,HUB,3-LOBE,AWD

5432611

$14.39

22

SCREW(10)

7512027

$1.49

23

NUT-HXFL-3/8-24 B ZTB P-A

7542459

$1.59

24

RIM,FRONT,(SILVER)

1520269-117

$90.87

25

VALVE-RIM

1525017

$5.59

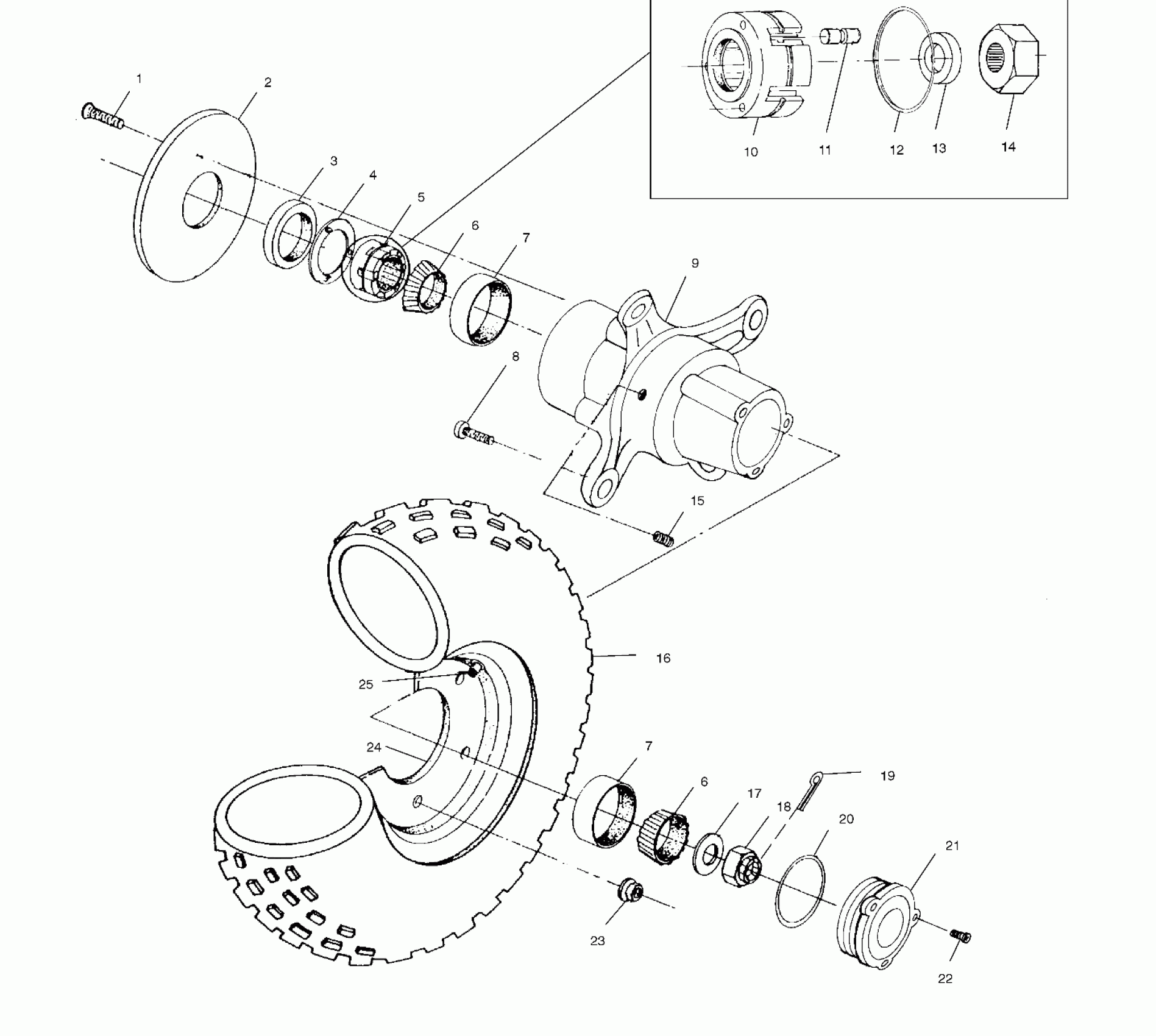

Polaris SPORTSMAN 6X6 - A00CL50AA FRONT WHEEL - A00CL50AA (4954815481B005) Diagram

BOLT(10)

DISC,BRAKE

SEAL, FR. HUB

Plate, Armature

CLUTCH,FR HUB E/M

BRG,TAPER.ROLL.CONE

BRG,TAPER.ROLL.CONE

BRG,TAPER,ROLL CUP

BRG,TAPER,ROLL CUP

STUD(10)

HUB ASM,SHRT(3-LOBE)W/BRG RACE (Incl. 3,7,8)

Cage, Roll

ROLLS

SPRING,GARTER

Spacer

Cam

PLUG,PIPE

TIRE,FR(25X8-12) (25x8-12)

WASHER

NUT, SLOTTED(10)

COTTER PIN(10)

O RING

CAP,HUB,3-LOBE,AWD

SCREW(10)

NUT-HXFL-3/8-24 B ZTB P-A

RIM,FRONT,(SILVER)

VALVE-RIM
