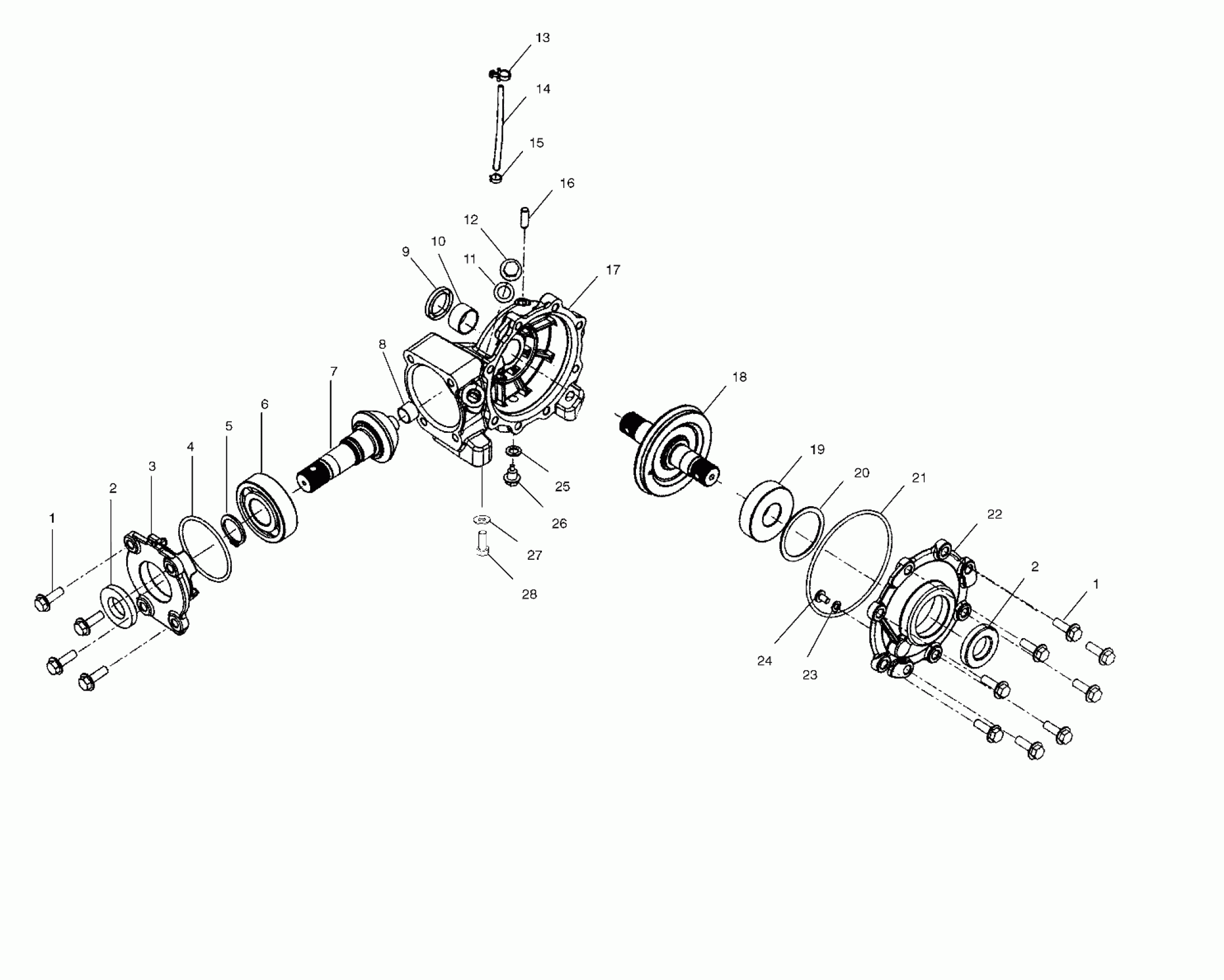

Polaris SPORTSMAN 6X6 - A00CL50AA FRONT HOUSING - A00CL50AA (4954815481B003) Diagram

#

Description
Price

-

GEARCASE ASM,FRONT Substituted by 1341323 (Incl. 1-12,16-26)(If built before 7/1/99)

1341276

$1,204.99

-

GEARCASE,FRONT,ASM. (Incl. 1-12,16-26)(If built after 7/1/99)

1341323

$1,204.99

1

Screw

3233252

$5.27

1

Screw

3233252

$5.27

2

Seal

3233248

$30.88

2

Seal

3233248

$30.88

3

INPUT COVER-FRONT HOUSING

3233701

$39.37

4

O-Ring

3233700

Unavailable

5

RING-RETAINING

3233699

$7.19

6

BEARING,BALL

3233589

$59.99

7

PINION-INPUT (1341276)

3233698

$200.79

7

PINION,INPUT,14T (1341323)

3233726

Unavailable

8

BUSHING,GARLOCK

3233541

$23.99

9

Seal

3233319

$27.99

10

BUSHINHG-GARLOCK

3233697

Unavailable

11

Washer

3233324

$8.99

12

PLUG,OIL FILL

3233711

Unavailable

13

CLIP,SNAP-IN

7080756

$4.79

14

FUEL LINE,1/4 ID(1525 CM.)

8450003-1525

Unavailable

15

CLAMP-HOSE, (LARGE GREEN)

7080307

$1.49

16

TUBE,VENT

3233524

$7.19

17

Gearcase

3233696

Unavailable

18

SUBASM-OUTPUT SHAFT,FRT HSG (1341276)

3233710

$268.91

18

SHAFT,OUTPUT,29T (1341323)

3233725

Unavailable

18

OUTPUT SHAFT-FRONT HOUSING (1341276)

3233694

$107.14

18

GEAR 29T-FRONT HOUSING (1341276)

3233695

$183.19

19

BEARING

3233020

$47.99

20

SHIM

3233554

Unavailable

21

O-Ring

3233693

Unavailable

22

COVER,OUTPUT (1341323)

3233724

Unavailable

22

OUTPUT COVER-FRONT HOUSING (1341276)

3233692

Unavailable

23

SHIM .450 X .265

3233583

Unavailable

24

THRUST BUTTON (1341323)

3233582

$7.91

24

BUTTON-THRUST (1341276)

3233702

Unavailable

25

PLUG, WASHER

3233254

$7.99

26

PLUG, DRAIN Substituted by 3233777

3233253

$34.99

27

WASHER(10)

7552603

$1.49

28

SCREW(10)

7512492

$1.49
