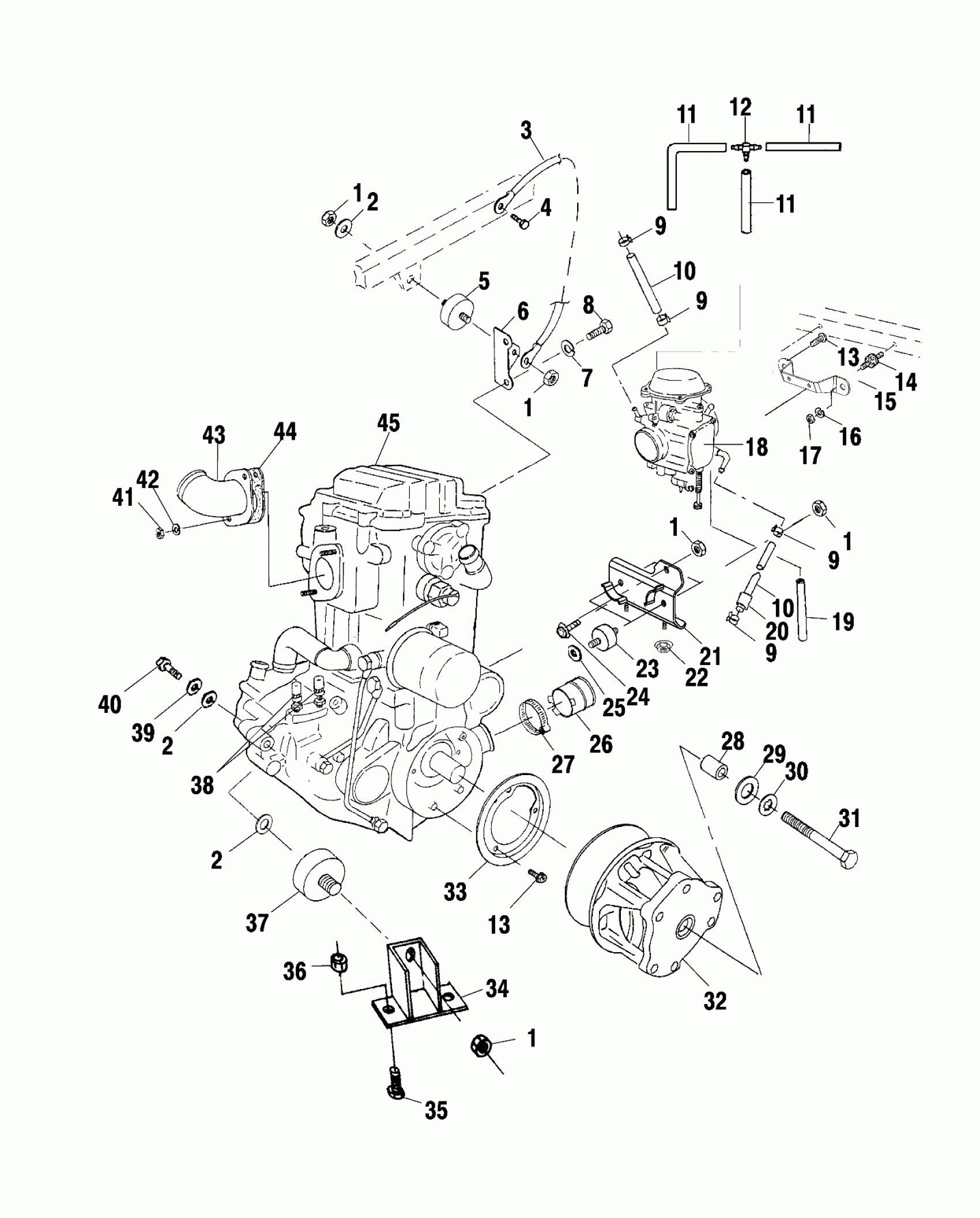

Polaris SPORTSMAN 6X6 - A00CL50AA ENGINE MOUNTING - A00CL50AA (4954815481A011) Diagram

#

Description
Price

1

NUT

7547108

$4.79

1

NUT

7547108

$4.79

1

NUT

7547108

$4.79

1

NUT

7547108

$4.79

1

NUT

7547108

$4.79

2

WASHER(10)

7555801

$3.99

2

WASHER(10)

7555801

$3.99

2

WASHER(10)

7555801

$3.99

3

CABLE,GND-ENGINE

4010132

Unavailable

4

BOLT(10)

7512232

$1.49

5

MOUNT,RUBBER,TOP

3110044

Unavailable

6

BRKT,ENG.MT,TOP,BLK

5242674-067

Unavailable

7

LOCK WASHER(10)

7552901

$1.49

8

BOLT(10)

7512315

$4.79

9

HOSE CLAMP, RED

7080003

$1.49

9

HOSE CLAMP, RED

7080003

$1.49

9

HOSE CLAMP, RED

7080003

$1.49

9

HOSE CLAMP, RED

7080003

$1.49

10

FUEL LINE,1/4 ID(600 CM.)

8450040-600

Unavailable

10

FUEL LINE,1/4 ID(600 CM.)

8450040-600

Unavailable

11

FUEL LINE,1/4 ID(1525 CM.)

8450003-1525

Unavailable

11

FUEL LINE,1/4 ID(1525 CM.)

8450003-1525

Unavailable

11

FUEL LINE,1/4 ID(1525 CM.)

8450003-1525

Unavailable

12

FITTING, TEE

7052075

$9.59

13

SCREW & WASHER(10)

3084205

$3.99

13

SCREW & WASHER(10)

3084205

$3.99

14

Mount, Rubber

3110032

$7.99

15

BRKT,CARB,MOUNT,BLK

5243803-067

Unavailable

16

WASHER(10)

7552605

$5.27

17

NUT HEX(10)

7542105

$3.99

18

Asm., Carburetor (See Carburetor Pg. D10, Ref. 47)

-------

Unavailable

19

FUEL LINE,1/8 ID,600 CM.

8360009-600

Unavailable

20

SHEATH/FOIL,LAM,58CM. Substituted by 8450080-65

8450080-58

$64.75

21

MOUNT,ENGINE,REAR,500,BLK

1012883-067

$19.83

22

NUT-3/8-16 FLG LOCK-Y

7547089

$4.79

23

MOUNT,RUBBER,FRONT

3110046

Unavailable

24

BOLT(10)

7515417

$4.79

25

WASHER, FLAT(10)

7555815

$3.99

26

BOOT,CLUTCH INTAKE

5410421

$11.19

27

CLAMP, NARROW BAND(10)

7080511

$4.79

28

BUSHING-.437 X.770 X.50

5430261

$7.19

29

WASHER-.440X1.25X.190 FL-Y

5210748

$3.99

30

WASHER-7/16-INT LK-(1222)-Z

7575202

$4.79

31

BOLT(10)

7512566

$30.79

32

Asm., Drive Clutch (See Drive Clutch Pg. C5 for Details)

-------

Unavailable

33

Bracket, Retainer, Seal (See Clutch Cover Pg. C8, Ref. 21)

-------

Unavailable

34

MOUNT,FR.ENGINE,BLK.

1040688-067

$14.68

35

SCREW(10)

7515398

$2.39

36

NUT-5/16-18 NYLOK-Y

7542324

$1.49

37

MOUNT,MOTOR

3110067

Unavailable

38

CLAMP-HOSE,.875-SS

7080474

$8.40

39

WASHER(10)

7552603

$1.49

40

BOLT(10)

7515438

$4.79

41

Nut (See Cylinder Pg. D8, Ref. 23)

-------

Unavailable

42

Washer, Lock (See Cylinder Pg. D8, Ref. 22)

-------

Unavailable

43

MANIFOLD,BLK.

1260994-029

$189.99

44

Gasket, Exhaust (See Cylinder Pg. D8, Ref. 20)

-------

Unavailable

45

ENG.(S.B.)EH50PLE-01 (EH50PLE010) NOTE: The Short Block assembly contains a crankcase assembly, cylinder and cylinder head assembly, and a piston & crankshaft assembly. Prior authorization required

3085556

Unavailable
