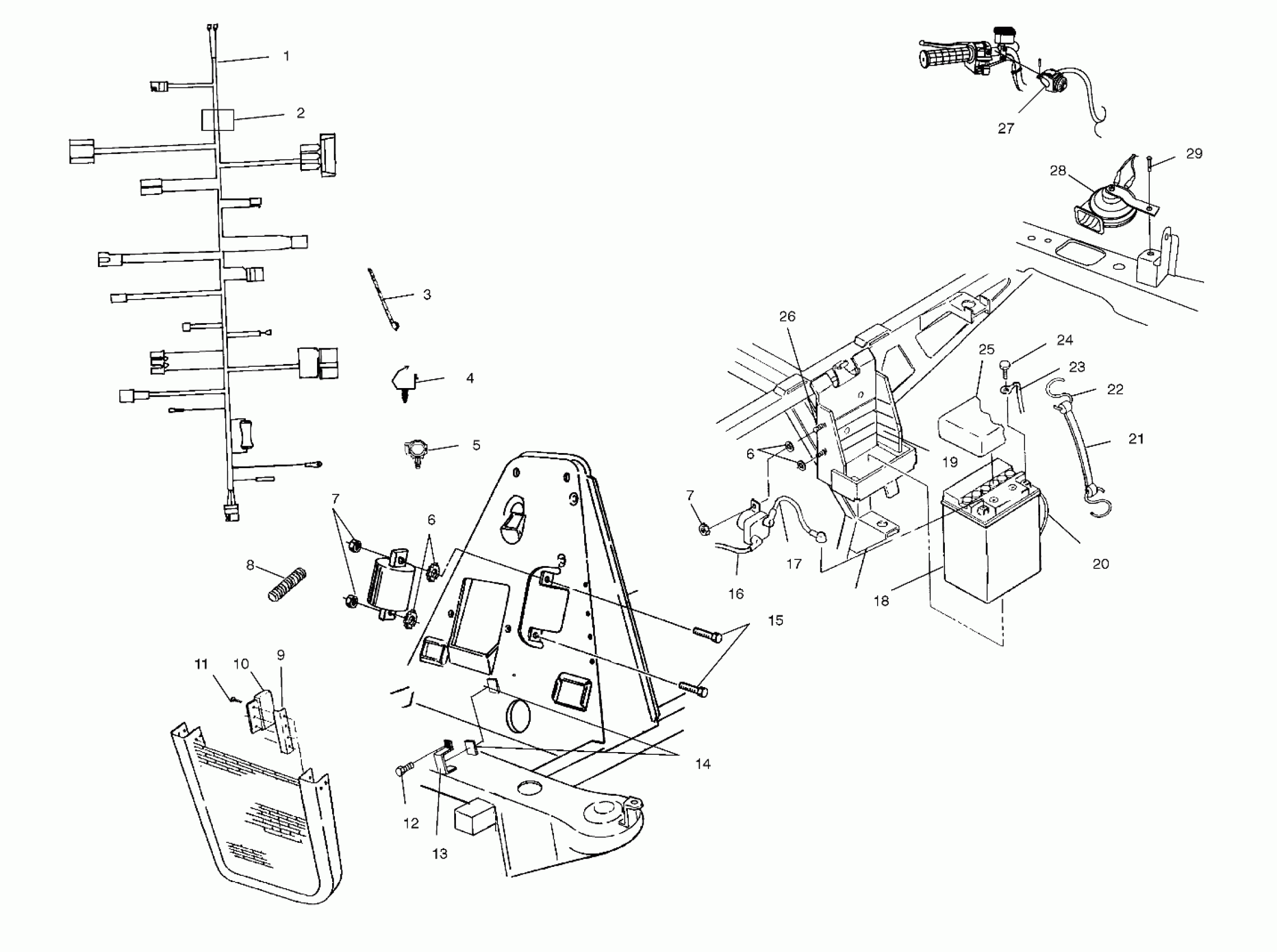

Polaris SPORTSMAN 6X6 - A00CL50AA ELECTRICAL - A00CL50AA (4954815481C011) Diagram

#

Description
Price

1

HARNESS-MAIN WIRE,HYBRID,6X6

2460701

Unavailable

2

KIT-CIRCUT BREAKER,FAN

2201795

$68.79

3

CABLE-TIE,DIA12-50MM,WTHR-RES.

7080138

$2.41

4

CLIP-ROUTING

7670109

$2.39

5

CLIP,ROSEBUD

4020149

$6.39

6

WASHER(10)

7571602

$4.79

6

WASHER(10)

7571602

$4.79

7

NUT(10)

7541925

$1.49

7

NUT(10)

7541925

$1.49

8

TUBING,CONVOLUTED,3/4"

8360011-15

$1.67

9

HEATSINK RECT.

5131036

Unavailable

10

RECTIFIER,FULL WAVE

4060173

Unavailable

11

SCR-#10-24X3/4,PN/TR RD-TORX-Y

7512018

$3.19

12

SCREW,(10)

7512024

$4.79

13

BRACKET-CDI

5241416

$5.75

14

PAD,RACK MOUNT

5810455

$3.19

15

SCREW(10)

7512007

$3.99

16

CABLE,SOL/STARTER

4010093

$47.99

17

CABLE,BATT/SOLENOID,RED

4010094

Unavailable

18

Battery

4140006

$99.99

19

PAD-BATTERY

5810290

$7.27

20

TUBE,BATTERY VENT

5432077

$8.08

21

STRAP,BATTERY HOLDDOWN

5410424

Unavailable

22

HOOK-BATT.H/D(10)

7010032

$1.59

23

CABLE,BATT/ENG.,BLK.

4010095

Unavailable

24

BOLT,BATT,KIT(SHORT)

2200361

$3.99

25

COVER,BATTERY

5431769

$14.39

26

SCREW(10)

7512027

$1.49

27

SWITCH,HORN

4010311

$59.99

28

Horn

4010310

Unavailable

29

SCREW(10)

7512057

$2.38
