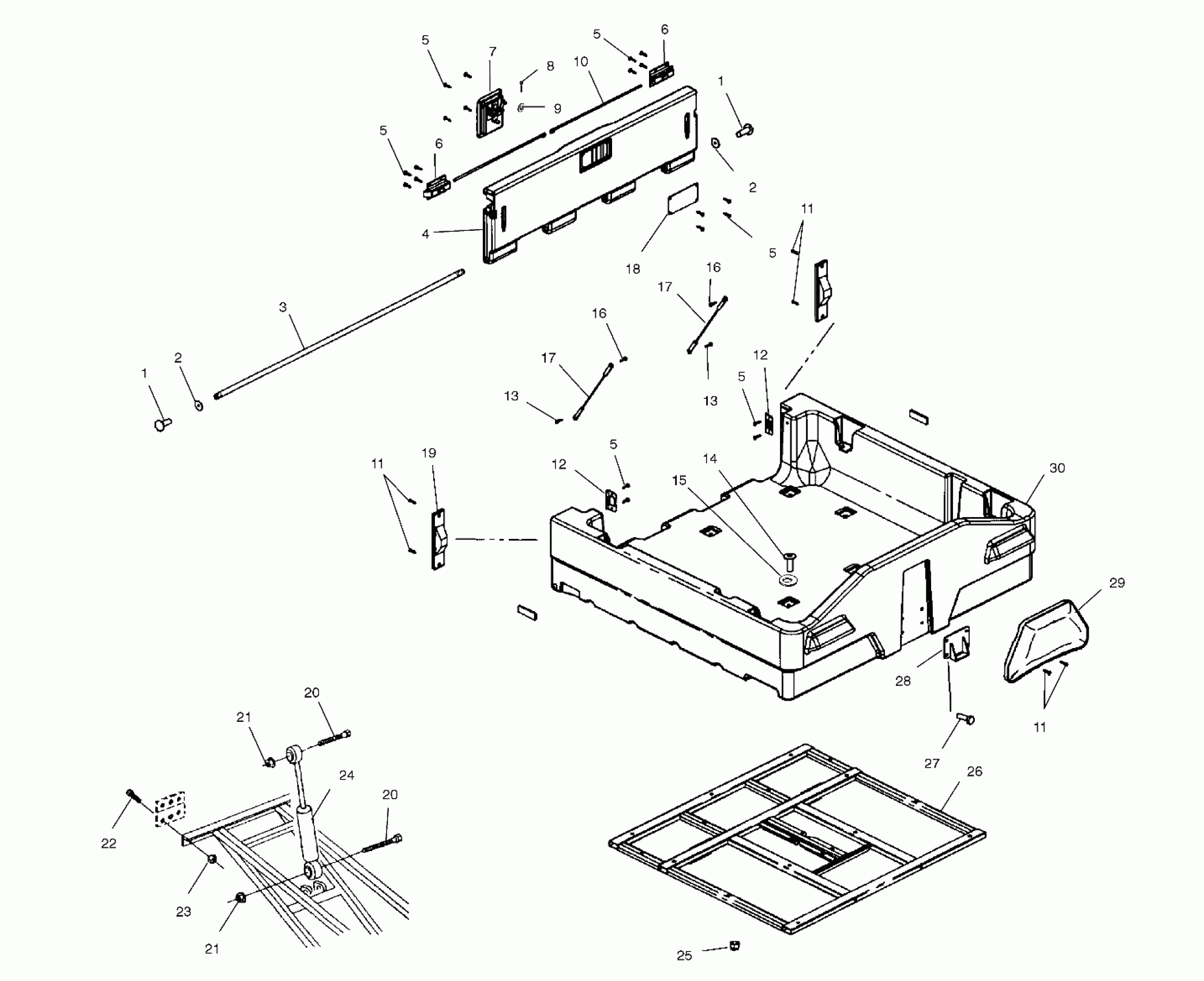

Polaris SPORTSMAN 6X6 - A00CL50AA DUMP BOX - A00CL50AA (4954815481C012) Diagram

#

Description
Price

1

SCREW(10)

7515177

$3.19

1

SCREW(10)

7515177

$3.19

2

WASHER(10) Substituted by 7558221

7555931

Unavailable

2

WASHER(10) Substituted by 7558221

7555931

Unavailable

3

ROD,HINGE,TAILGATE 6X6

5132358

$51.99

4

TAILGATE,PLASTIC,6X6

5433388

$375.99

5

SCREW

7517561

$1.59

5

SCREW

7517561

$1.59

5

SCREW

7517561

$1.59

5

SCREW

7517561

$1.59

5

SCREW

7517561

$1.59

5

SCREW

7517561

$1.59

6

LATCH,FLSHBLT,TLGATE,BLK

5433656

$63.99

6

LATCH,FLSHBLT,TLGATE,BLK

5433656

$63.99

7

LATCH,PADDLE,T-GATE,BLK

5433655

$83.99

8

PIN,HITCH(10)

7661644

$2.39

9

WSHR,RUBBER W/METAL BACK

7556143

$4.79

10

SHFT,TLGATELTCH,5/16,ZINC

5132373

$11.99

11

SCR,#10X3/4 HI/LO

7517790

$2.39

11

SCR,#10X3/4 HI/LO

7517790

$2.39

11

SCR,#10X3/4 HI/LO

7517790

$2.39

12

BRKT-BOX LATCH

5243304

$14.39

12

BRKT-BOX LATCH

5243304

$14.39

13

SCREW1/4 20X11/2 PHPN,LK,G2-Y

7517743

$3.03

13

SCREW1/4 20X11/2 PHPN,LK,G2-Y

7517743

$3.03

14

SCREW3/8-16X1TORX/TRUSS,GR5

7517747

$4.23

15

WASHER,.391X1.25X.105-M

7556157

Unavailable

16

SCREW1/4-20X3/4PA PN,LK,G2-Y

7517742

$5.59

16

SCREW1/4-20X3/4PA PN,LK,G2-Y

7517742

$5.59

17

CABLE-TAILGATE

7080881

$39.99

17

CABLE-TAILGATE

7080881

$39.99

18

COVER-TAILGATE,BLK

5244068-067

$27.99

19

BULB,TAILLIGHT

4010340

$7.19

19

TAILLIGHT W/BRAKE LIGHT,ASM.

2410179

$55.99

20

BOLT(10)

7512329

$3.99

20

BOLT(10)

7512329

$3.99

21

NUT-5/16-18 NYLOK-Y

7542324

$1.49

21

NUT-5/16-18 NYLOK-Y

7542324

$1.49

22

SCREW(10)

7512492

$1.49

23

NUT,FLANGE LOCK(10)

7542449

$3.99

24

SHOCK, DUMPBOX

7041301

$59.99

25

NUT-3/8-16 FLG LOCK-Y

7547089

$4.79

26

WELD-BOX SUPPORT,BLK

1012893-067

$323.99

27

SCREW(10)

7515350

$3.97

28

LATCH,BOX,BLK

1013125-067

Unavailable

29

BACKREST,BLK,ASM.

2682522-070

Unavailable

30

BOX,PLASTIC,6X6

5433248

Unavailable
