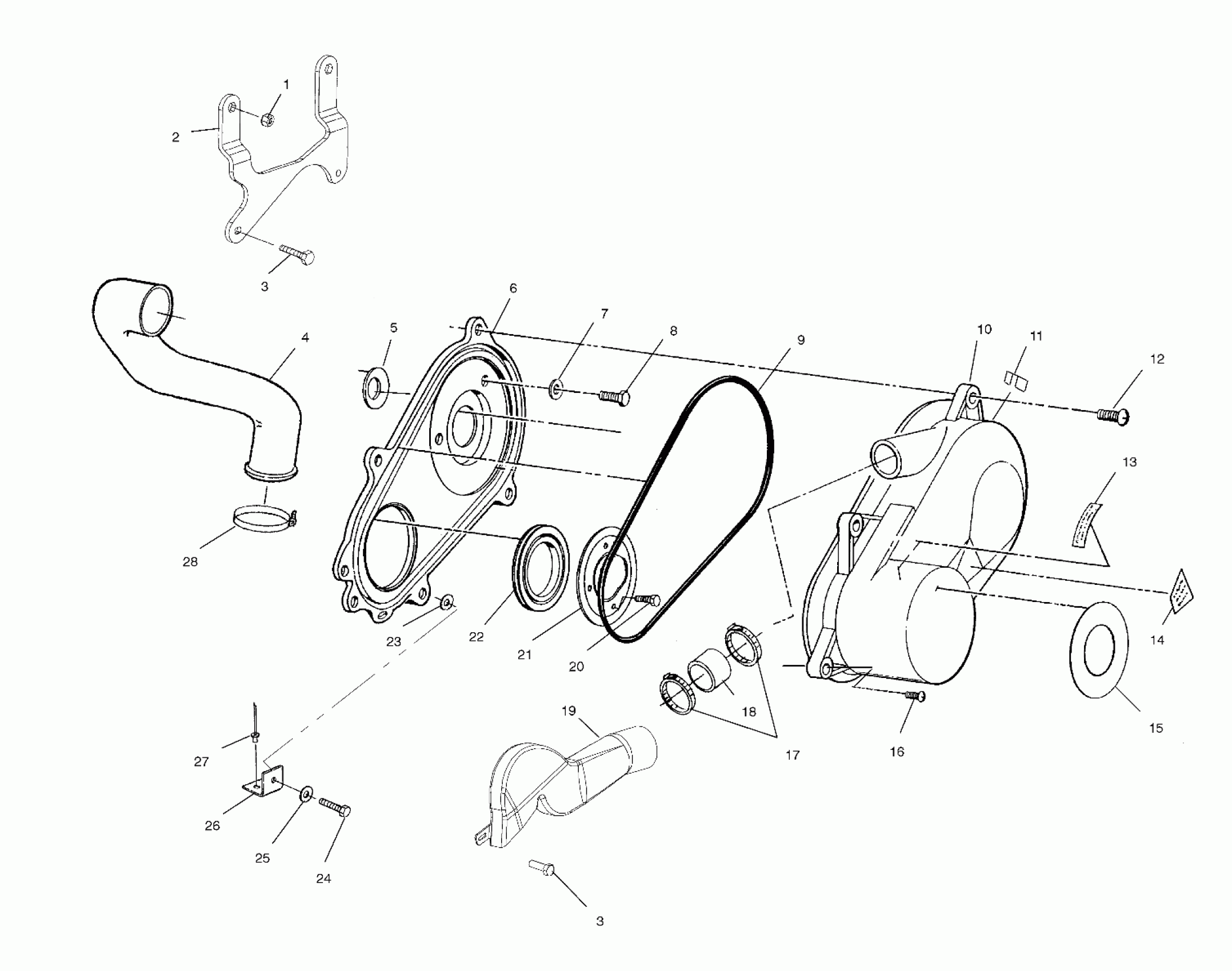

Polaris SPORTSMAN 6X6 - A00CL50AA CLUTCH COVER - A00CL50AA (4954815481C008) Diagram

#

Description
Price

1

NUTSERT,HEX

7547067

$6.23

2

BRKT,CLUTCH,LOW,BLK

5242208-067

Unavailable

3

BOLT(10)

7512232

$1.49

3

BOLT(10)

7512232

$1.49

4

DUCT-CLUTCH AIR INLET

5433427

Unavailable

5

SEAL,CLUTCH CVR,INNER

5411553

$23.99

6

COVER,CLUTCH,INNER,500,SVC,KIT (Incl. 12,16,24)

2201160

$121.41

7

WASHER-.28X.62-.14(RBR-BK)-Z

7555748

$4.79

8

BOLT(10)

7512278

Unavailable

9

SEAL,CLUTCHCOVER

5521301

$30.88

10

COVER-CLUTCH,OUTER,HV,ST-801

5433540

$175.99

11

CLIP,CLUTCH COVER(10)

7670051

$2.99

12

SCREW(10)

7512093

$1.49

13

DECAL,WARNING,CLUTCH CVR (If built after 10/04/99)

7078689

Unavailable

13

DECAL,CLUTCH COVER Substituted by 7078689 (If built before 10/04/99)

7074946

Unavailable

14

DECAL,ENG/CLUTCH MOD. Substituted by 7078689

7077377

Unavailable

15

DECAL,AUTO.TRANSMISSION

7074782

Unavailable

16

SCREW(10)

7512094

$1.59

17

CABLE-TIE,10-102MM,WEATH.-RES.

7080761

$2.39

18

BOOT,DUCT,HI-FLOW

5411489

Unavailable

19

DUCT,AIROUTLET,CLUTCH

5433657

$36.31

20

Screw and Washer (See Crankcase Pg. D5, Ref. 6)

-------

Unavailable

21

BRKT,RETAINER SEAL,BLK. Substituted by 5242046-067

5240409-067

Unavailable

22

Seal, Cover Case

5410575

Unavailable

23

WASHER,NYLON

7555932

$2.39

24

Screw

7512098

$1.59

25

WASHER(10)

7555935

$2.39

26

BRKT,CLUTCH COVER,BLK

5242693-067

Unavailable

27

RIVET,INTERLOCK,B(50)

7661638

$1.49

28

CLAMP, NARROW BAND(10)

7080511

$4.79
