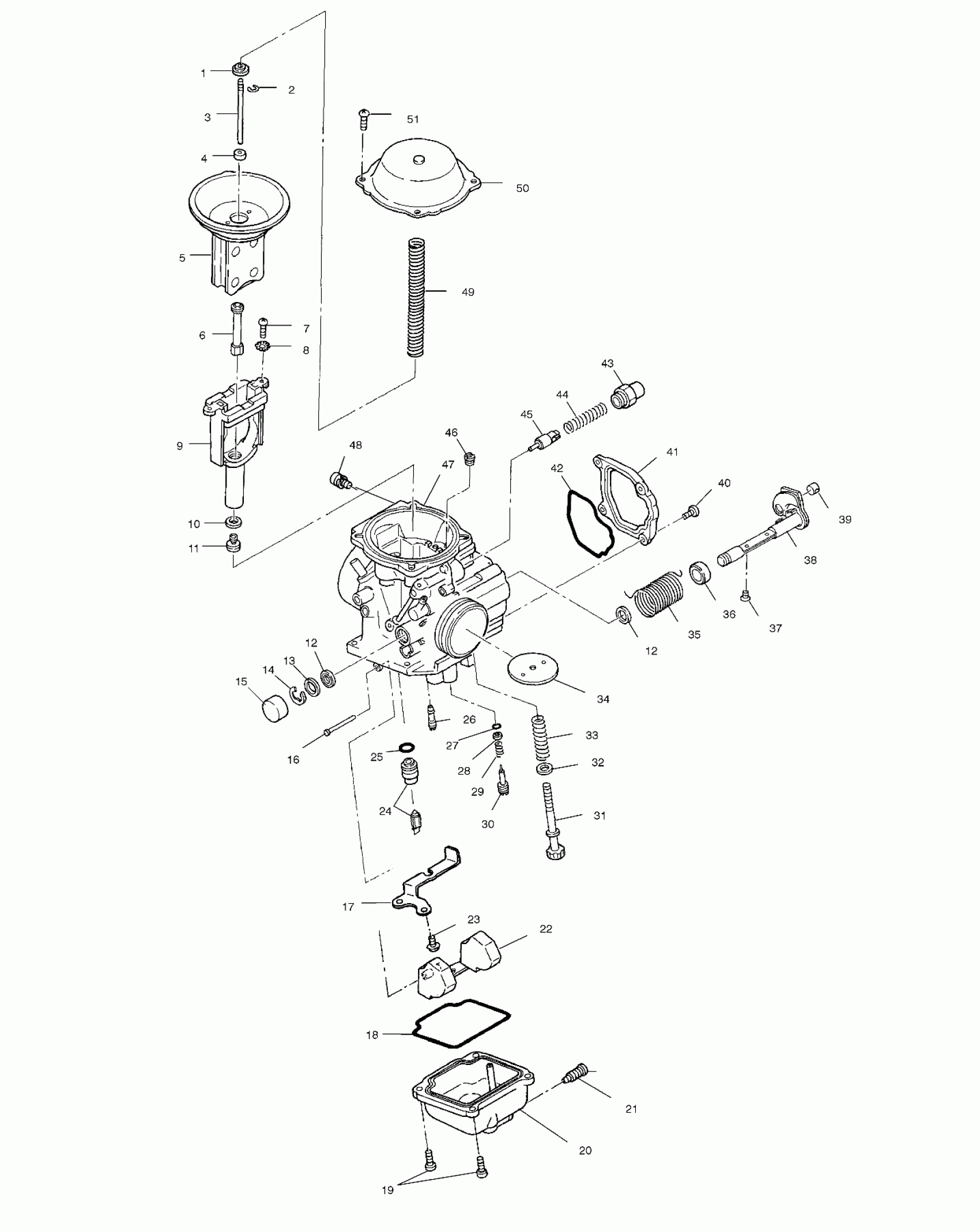

Polaris SPORTSMAN 6X6 - A00CL50AA CARBURETOR - A00CL50AA (4954815481D009) Diagram

#

Description
Price

1

RING

3130507

$5.65

2

E-RING,(10)

3130508

$6.46

3

NEEDLE,JET [Item NotAvailable]

3131224

$40.46

4

RING

3130752

$5.65

5

DIAPHRAGM ASM.

3130732

$156.74

6

JET,NEEDLE(Q-4) Substituted by 3130899 (Q-4)

3131223

$44.51

7

SCREW

3130541

$11.11

8

WASHER,SPRING

3130540

$4.76

9

JETBLOCK ASM.

3130504

$64.75

10

WASHER (10)

3130014

$1.59

11

MAIN JET,#142.5 (#142.5)

3130566

$8.89

12

SEAL

3130515

$12.13

12

SEAL

3130515

$12.13

13

PACKING

----

Unavailable

14

E-RING

3130518

$1.60

15

CAP

3130519

$10.51

16

PIN, FLOAT

3130361

$9.70

17

PLATE

3130594

$32.37

18

O-RING

3130532

$32.37

19

SCREW

3130520

$1.59

20

FLOATBODY ASM.

3130590

$119.98

21

SCREW

3130521

$10.32

22

FLOAT ASM.

3130529

$99.74

23

SCREW

3130591

$3.97

24

VALVE,NEEDLE,(1.5) Substituted by 3130531 (1.5)

3130668

$61.74

25

O-RING

3130533

$5.65

26

JET,PILOT,#40 (#40)

3130624

$28.32

27

O-Ring

3130522

$5.65

28

Washer

3130523

$2.38

29

Spring

3130525

$5.65

30

Adjuster

3130524

$23.81

31

SCREW, ADJ.

3130546

$13.75

32

Ring

3130545

$12.13

33

Spring

3130544

$10.51

34

VALVE,THROTTLE (100)

3130502

$62.92

35

SPRING

3130589

$28.32

36

Ring

3130514

$7.27

37

SCREW

3130501

$3.97

38

SHAFT ASM,THROTTLE

3130513

$79.37

39

GUIDE,CABLE

3130543

$32.37

40

SCREW

3130535

$7.14

41

COVER

3130511

$54.99

42

O-Ring

3130512

Unavailable

43

HOLDER,GUIDE

3130199

$28.32

44

SPRING

3130538

$5.65

45

PLUNGER ASM. Substituted by 3130539

3130593

$40.46

46

JET,AIR,#160 (#160)

3130625

$14.56

47

CARBURETOR,ASM (Incl. 1-38,43-51)

3131222

Unavailable

48

SCREW & WASHER(10)

3084205

$3.97

49

SPRING

3130505

$28.32

50

Cover

3130503

$68.79

51

SCREW-MIKUNI C2=0408

3130592

$1.59
