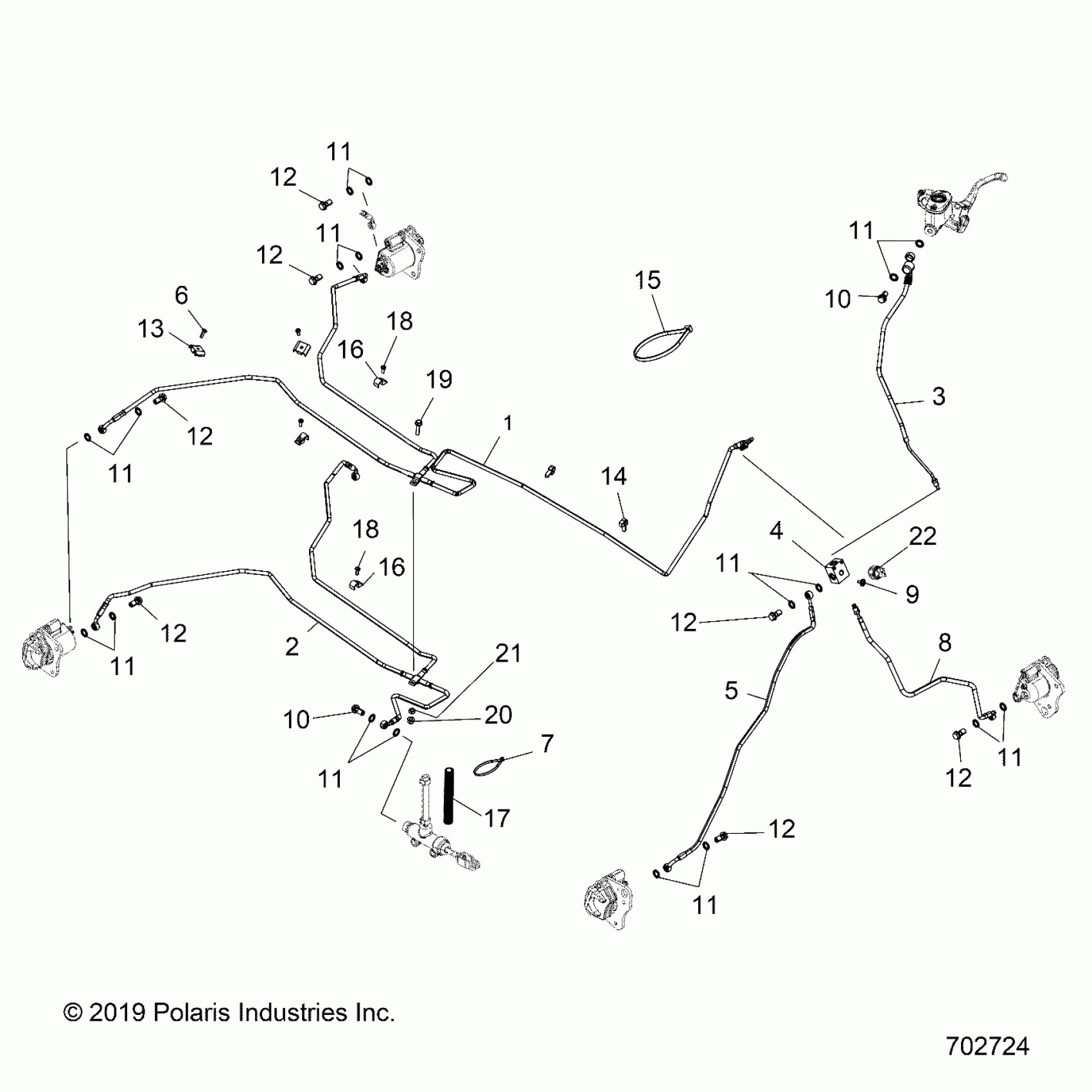

Polaris SPORTSMAN 570 X2 (R04) - A20SWE57A1/3A1 BRAKES, BRAKE LINES - A20SWE57A1/3A1 (702724) Diagram

#

Description
Price

1

LINE-BRK,AUX,T,90F,70B,70B,G2

1913041

$285.62

2

LINE-BRK,SV,T,20B,45B,45B,G2

1913034

$237.21

3

LINE-BRK,MCT,22,30B,CF1,0,JF

1913044

$64.75

4

FITTING-CROSS,ATV,BRAKE,BANJO

7052662

$39.68

5

LINE-BRK,FRONT RIGHT

1913035

$68.79

6

Screw

7517756

$1.19

7

CABLE-TIE,DIA12-50MM,WTHR-RES.

7080138

$2.41

8

LINE, BRAKE, LEFT FRONT

1913036

$76.89

9

Screw

7512084

$1.19

10

BOLT-BANJO, 10MM X 1.25-6G

1910958

$7.94

10

BOLT-BANJO, 10MM X 1.25-6G

1910958

$7.94

11

SEAL

5413212

$4.84

11

SEAL

5413212

$4.84

11

SEAL

5413212

$4.84

11

SEAL

5413212

$4.84

11

SEAL

5413212

$4.84

11

SEAL

5413212

$4.84

11

SEAL

5413212

$4.84

11

SEAL

5413212

$4.84

11

SEAL

5413212

$4.84

12

BOLT, BANJO

1910499

$5.56

12

BOLT, BANJO

1910499

$5.56

12

BOLT, BANJO

1910499

$5.56

12

BOLT, BANJO

1910499

$5.56

12

BOLT, BANJO

1910499

$5.56

12

BOLT, BANJO

1910499

$5.56

12

BOLT, BANJO

1910499

$5.56

13

CLIP, RETAINING

7670126

$4.76

14

Clip

7670102

$2.38

15

CABLE-TIE,10-102MM,WEATH.-RES.

7080761

$2.41

16

CLIP, HALF

7081940

$3.97

16

CLIP, HALF

7081940

$3.97

17

TUBING, CONVOLUTED

8360052-25

Unavailable

18

SCREW

7512024

$4.76

18

SCREW

7512024

$4.76

19

SCREW

7515153

$3.97

20

Nut, Flange

7542153

$1.59

21

NUT

7542105

$3.97

22

SWITCH-BRK,1/8"-27 NPTF,SEALED

4015069

$111.10
