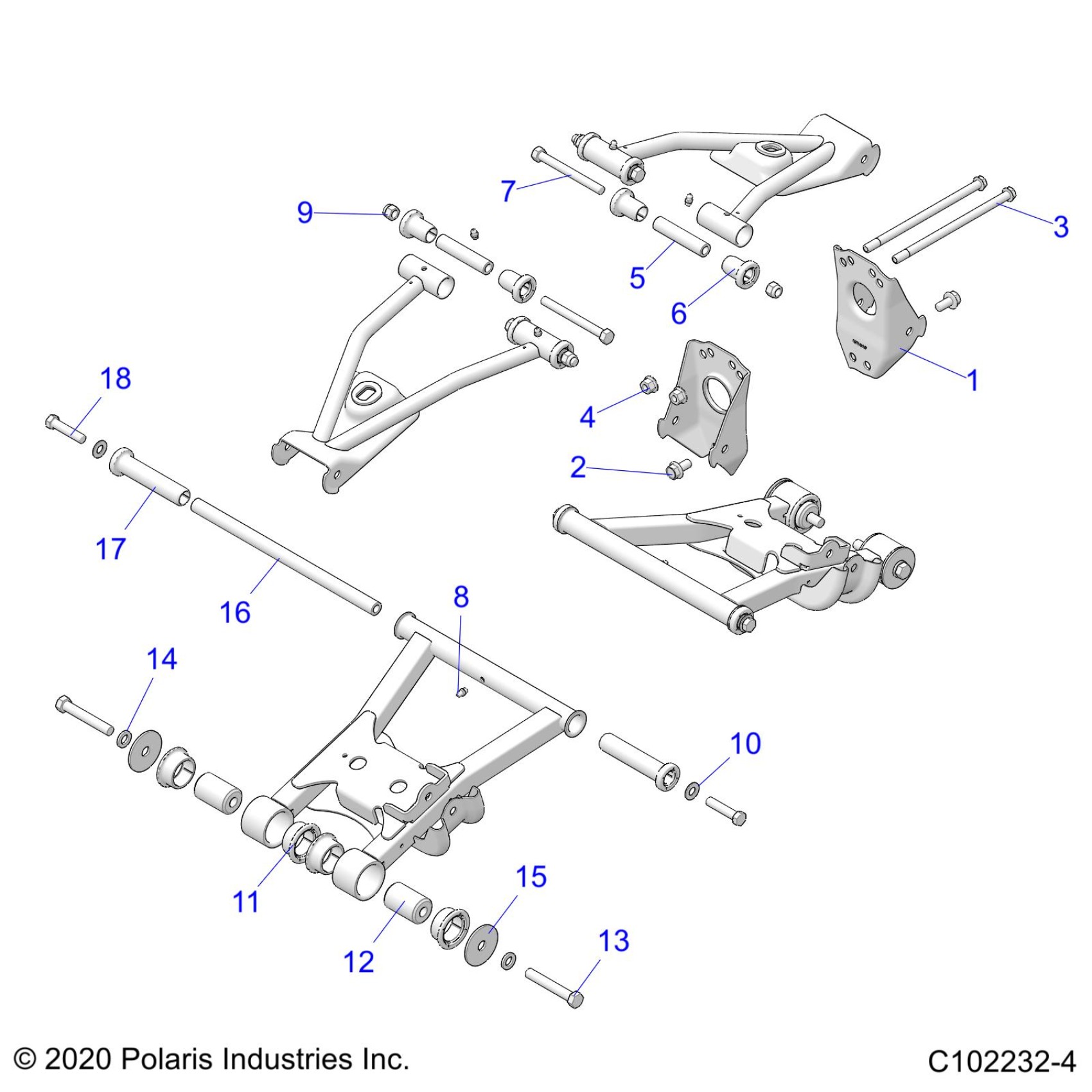

Polaris SPORTSMAN 570 X2 (R02) - A21SWE57A1/3A1 SUSPENSION, REAR CONTROL ARM, MOUNTING - A21SWE57A1/3A1 (C102232-4) Diagram

BRACKET, CONTROL ARM, PIVOT, BLACK

5254267-329

Unavailable

SCR-3/8-16X3/4 HX FLNG-GR5-Y

7517632

$5.59

BOLT-3/8-16X7 HX FLNG GR5-Y

7518365

$7.91

NUT-FLANGED,3/8-16 NYLON-Z

7547180

$2.39

Shaft, A-Arm., Short

5020826

$11.99

Bushing, A-Arm., Short, Black

5438895

$2.38

ASM-BUSHING,HD,W/SEAL,6.75 FLG (HEAVY DUTY) [OPTIONAL]

1543326

$12.79

SCR-3/8-24X3 3/4 HX CP GR5-Y

7515472

$2.39

FITTING-LUB, 1/4-28-STR/1792-Y

7080433

$1.49

NUT-3/8-24(NYLOK)-Y

7542439

$1.49

WASHER-3/8 FW SAE STL THRU-HRD

7556153

$1.99

BUSHING, CONTROL, LOWER, BLACK

5438902

$4.79

BUSHING, BEARING CARRIER

5632291

$23.99

SCR-HH-7/16-14X2.75 GR5 ZY3 NY

7517873

$2.39

WASHER-LOCK, 7/16-B

7552614

$1.59

WASHER, FLAT

7555740

$1.59

SHAFT-A-ARM,C-BORE

5139929

$27.99

BUSHING-A-ARM,LONG,102.36MM

5436973

$5.19

ASM-BUSHING,HD,W/SEAL,6.75 FLG (HEAVY DUTY) [OPTIONAL]

1543326

$12.79

SCR-3/8-24X1 3/4,HX,GR8,P30,Y

7521149

$3.19
