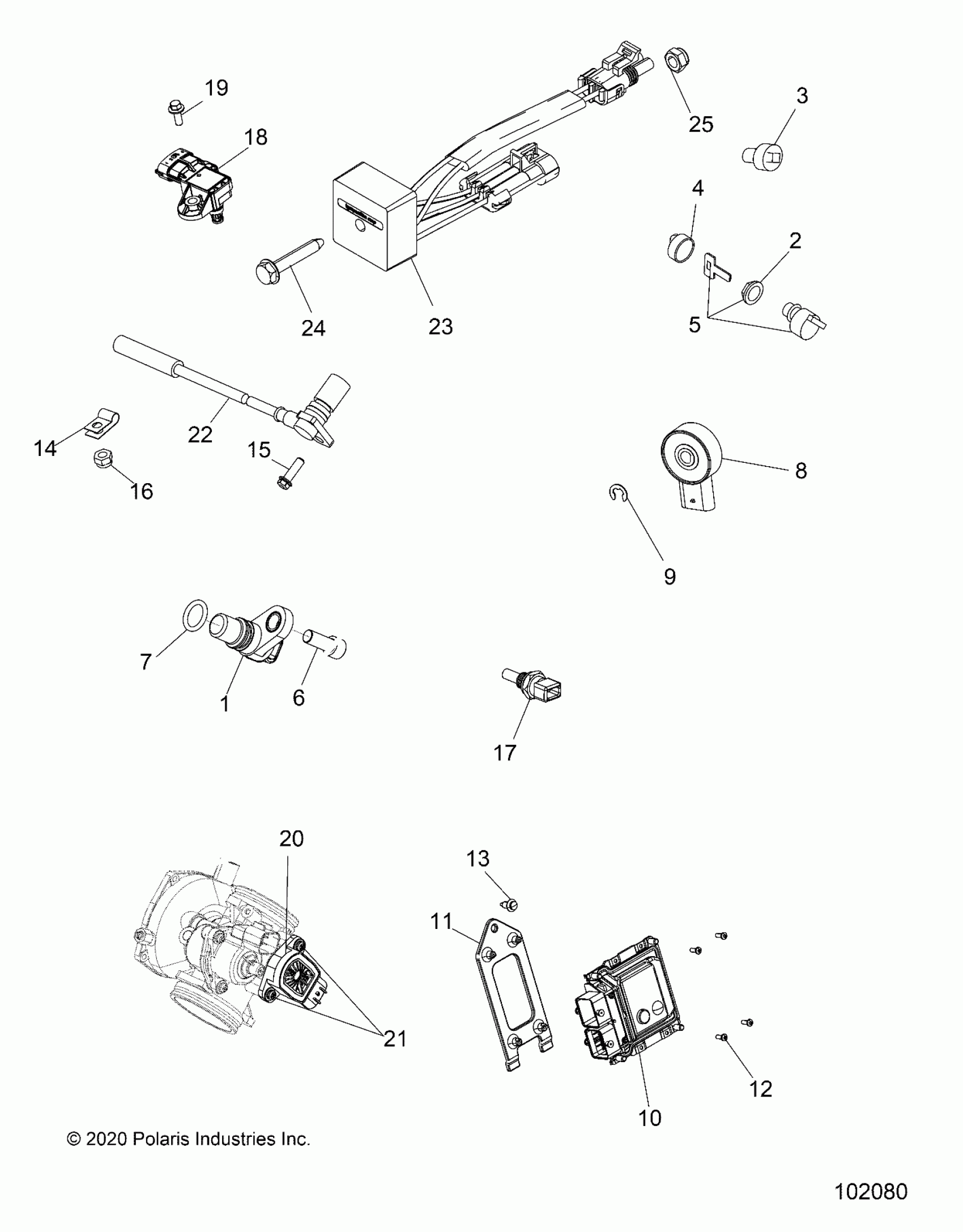

Polaris SPORTSMAN 570 X2 (R02) - A21SWE57A1/3A1 ELECTRICAL, SWITCHES, SENSORS and ECM - A21SWE57A1/3A1 (102080) Diagram

SENSOR-SPEED,TRANS

4013908

$109.27

NUT-IGNITION SWITCH,HOBBS

5433733

$23.81

SWITCH-BRK,1/8"-27 NPTF,SEALED [BRAKE PRESSURE]

4110164

$204.24

KEY SWITCH KEY COVER

5433534

$13.75

SWITCH, KEY, 3 POSITION, SEALED [INCL. 5,7,KEY]

4015033

$62.92

SCREW, TAPPING HEX, WASHER HD 1/4-20 X 0.75

3234247

$5.56

O-RING

3234302

$7.27

SWITCH, ROTARY , 2 PIN RESISTIVE [GEAR POSITION]

7661999

$117.37

RING, RETAINING BASIC EXTERNAL

3233834

$10.32

ECU, BASE, M17

4012838

$565.24

MNT-ECM,REAR,BLK

5438708-070

$10.51

SCR-#10X1/2-HI/LO-PN-T25, TRX-M

7519091

$3.17

RIVET-TUFLOK,.315-.325X.787

7661855

$1.19

CLAMP-CABLE

7080367

$2.38

SCREW-HXFL-M6X1.0X20 8.8 ZY3

7518576

$3.17

NUT-5/16-18,NYLOC,THIN-Y

7542344

$3.97

SENSOR-THERMISTER

4010644

$91.97

SENSOR-TMAP DSS3-TF

2411528

$97.13

SCR-HXFL-M5X0.8X14 18-8

7516603

$10.32

SENSOR, THROTTLE POSITION

3131705

$232.74

SCREW

3131628

$5.69

SENSOR, CRANK POSITION

2411719

$105.22

RELAY, SOLID STATE, 9 AMP, LONG, LD

4012829

$94.99

SCR-1/4-20X1.50-HX/TAP-R,MAG

7518418

$3.97

NUT-1/4-20-(NYLOK)-Y

7542122

$1.19
