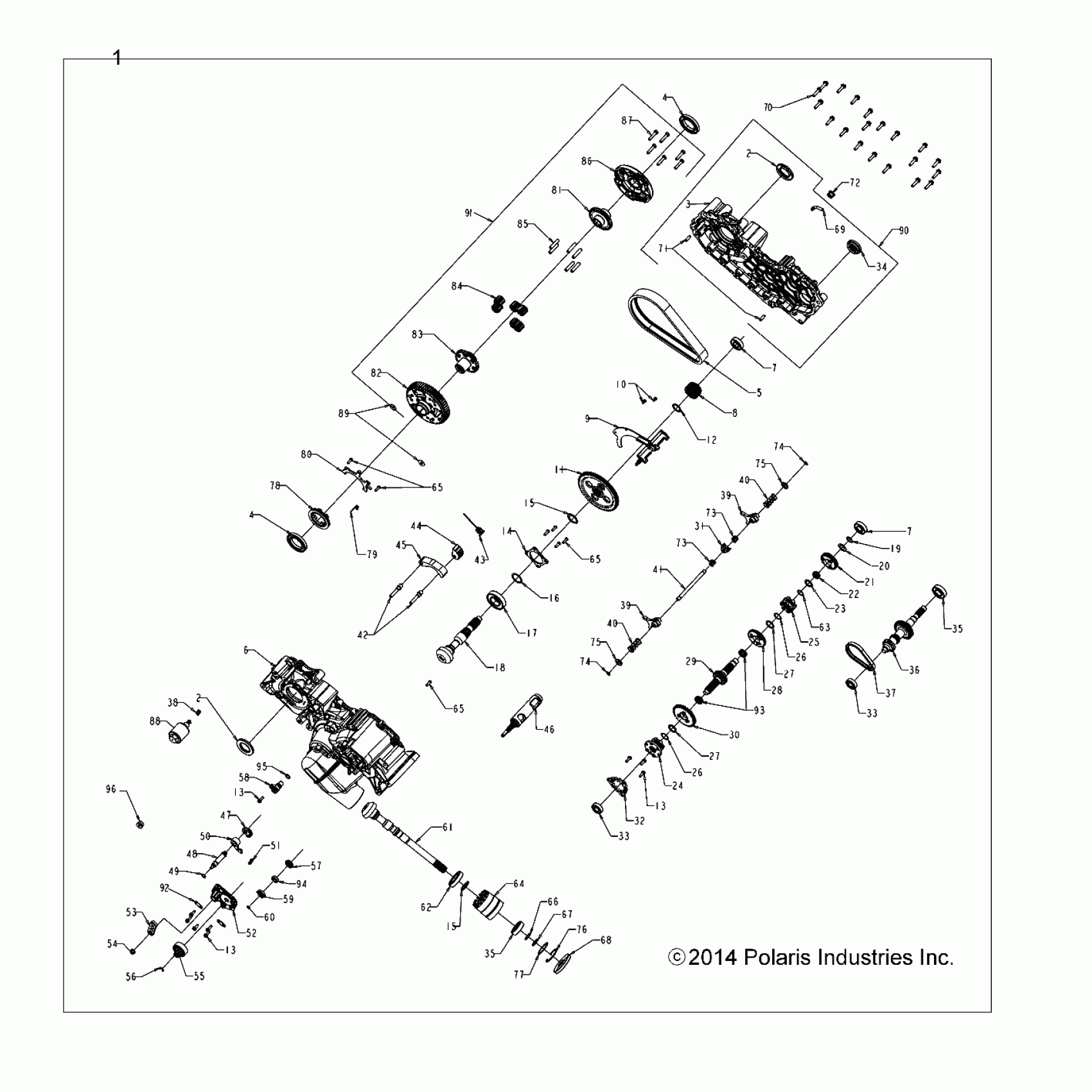

Polaris SPORTSMAN 570 X2 (R02) - A21SWE57A1/3A1 DRIVE TRAIN, MAIN GEARCASE - A21SWE57A1/3A1 (49ATVGEARCASE1333274) Diagram

#

Description
Price

1

ASM-TRANSMISSION,DIFF,TURF [INCL. ALL]

1334090

$3,299.99

2

SEAL, TRIPLE LIP, NITRILE 1.969 X 2.750 X .315

3234300

$32.37

2

SEAL, TRIPLE LIP, NITRILE 1.969 X 2.750 X .315

3234300

$32.37

3

COVER, LH MACH

3234260

$539.99

4

BEARING, BALL 6010 C3 50 X 80 X 10

3234275

$33.24

4

BEARING, BALL 6010 C3 50 X 80 X 10

3234275

$33.24

5

CHAIN, SILENT, 17 WIDE X 1.0 X 86p

3234057

$279.27

6

CASE, RH, MACH

3236313

$639.99

7

BEARING-BALL,6307 C3,35X80X21

3233018

$27.78

7

BEARING-BALL,6307 C3,35X80X21

3233018

$27.78

8

SPROCKET, 19T, 1.00"

3234060

$242.84

9

DEFLECTOR, OIL

3234061

$28.32

10

SCREW, TAPPING TORX, PH 11902 X.50

3233749

$5.65

11

GEAR OUTPUT 91T, HRC

3234062

$267.13

12

RING RETAINING, IRR 7200-118

3233699

$7.27

13

SCREW, TAPPING HEX, WASHER HD 1/4-20 X 0.75

3234247

$5.56

13

SCREW, TAPPING HEX, WASHER HD 1/4-20 X 0.75

3234247

$5.56

13

SCREW, TAPPING HEX, WASHER HD 1/4-20 X 0.75

3234247

$5.56

14

COVER, BEARING, CENTER DRIVE

3234063

$32.37

15

RING, RETAINING, SHAFT, DIA. 1.375

3233364

$6.46

15

RING, RETAINING, SHAFT, DIA. 1.375

3233364

$6.46

16

SHIM, 1.700 X 1.385

3234271

$24.27

17

BEARING,BALL 6207 C3 35X72X17

3234065

$47.62

18

PINION, CENTER DRIVE, 13T

3234263

$532.52

19

RING, RETAINING BASIC, EXTERNAL, .787 SHAFT

3234067

$7.94

20

WASHER THRUST, 1.270 X 0.793 X 0.065

3233176

$9.52

21

GEAR, HELICAL-35T

3236032

$155.54

22

BEARING, NEEDLE SPLIT CAGE 22 X 26 X 10

3233009

$39.68

23

WASHER, 1.250 X 0.876 X 0.05

3233855

$10.32

24

ENGAGEMENT DOG, 6-FACE L/P

3234257

$153.79

25

DOG, ENGAGEMENT, 6 FACE

3234258

$97.13

26

RING, RETAINING BASIC EXT 0.938

3233306

$4.76

26

RING, RETAINING BASIC EXT 0.938

3233306

$4.76

27

WASHER, THRUST 1.300 X 0.995 X 0.065

3234248

$9.52

27

WASHER, THRUST 1.300 X 0.995 X 0.065

3234248

$9.52

28

SPROCKET, 38T, 6 FACE

3234290

$153.79

29

SHAFT, REVERSE, 26T

3234280

$263.08

30

GEAR, 33T, 6 FACE

3234291

$174.03

31

COLLAR-SHIFT

3234073

$31.75

32

Plate, Park, 12 Face

3233915

$40.46

33

BEARING, BALL 6203 17 X 40 X 12

3234274

$27.78

33

BEARING, BALL 6203 17 X 40 X 12

3234274

$27.78

34

SEAL, TRIPLE LIP VITON HELIX 30 X 47

3234851

$42.74

35

BEARING, BALL, 6205 C3 25X52X15

3233019

$31.75

35

BEARING, BALL, 6205 C3 25X52X15

3233019

$31.75

36

SHAFT, 39T INPUT HELICAL

3235526

$299.99

37

SILENT CHAIN, .25P X 0.4 W X 50L

3234264

$118.74

38

SPRING, COMPRESSION 0.54 X 0.44 X 0.05 WIRE

3234277

$13.75

39

FORK, SHIFT

3234077

$182.13

39

FORK, SHIFT

3234077

$182.13

40

SPRING,COMPRESSION, .92 O.D. X 2.000

3234078

$24.27

40

SPRING,COMPRESSION, .92 O.D. X 2.000

3234078

$24.27

41

RAIL, SHIFT SHAFT

3234079

$28.32

42

PIN, TENSIONER

3233432

$7.14

43

SPRING, TORSION

3233431

$24.27

44

CAM, CHAIN, TENSIONER

3233434

$13.75

45

SHOE, CHAIN TENSIONER

3233433

$32.37

46

DRUM, SHIFT MACH

3234360

$182.13

47

GEAR-SECTOR,31T

3233832

$36.41

48

SHAFT, SHIFT

3233831

$60.70

49

O-RING, -014 VITON

3233828

$6.87

50

Pawl, Detent

3233829

$36.41

51

SPRING, COMPRESSION 0.36 O.D. X 1.125

3234578

$13.75

52

COVER, SECTOR GEARS, MACHINED

3234188

$113.32

53

BELLCRANK, .510 HOLE, 92 ~

3234584

$28.32

54

NUT, LOCK, HEX FLANGE NYLON 5/16-24

3233961

$3.32

55

SWITCH, ROTARY , 2 PIN RESISTIVE

7661999

$117.37

56

RING, RETAINING BASIC EXTERNAL

3233834

$10.32

57

GEAR, SECTOR, 16T

3233839

$36.41

58

SENSOR-SPEED,TRANS

4013908

$109.27

59

Star, Detent

3233909

$28.32

60

O-RING, -012 VITON

3233836

$6.87

61

GEAR, 13T SNORKEL,

3234262

$409.99

62

BEARING-BALL 6007 C3 35 X 62 X 14

3233265

$39.68

63

RING, RETAINING, BASIC EXTERNAL DIA 0.84

3234336

$5.56

64

TUBE, SNORKEL MACHINED

3234278

$101.17

65

SCREW, TORX TRUSS HD 43834 X 0.75

3234086

$5.56

65

SCREW, TORX TRUSS HD 43834 X 0.75

3234086

$5.56

65

SCREW, TORX TRUSS HD 43834 X 0.75

3234086

$5.56

66

SHIM, 1.180 OD X 0.995 ID

3234272

$36.41

67

RING,RETAINING BASIC,EXTERNAL 0.984

3233106

$5.56

68

SEAL, TRIPLE LIP VITON 25 X 80 X 10

3234113

$36.41

69

TUBE, VENT 90 -1/4 INCH HOSE

3234230

$10.51

70

SCREW, TAPPING HEX, WASHER HD 5/16-18 X 1.25

3234114

$7.14

71

PIN, DOWEL 5/16 X 1.0

3234244

$7.27

72

PLUG, 3/4-16, 41775 INTERNAL HEX

3233794

$15.37

73

SPRING, COMPRESSION, 0.46 I.D. X 0.73

3234089

$28.32

73

SPRING, COMPRESSION, 0.46 I.D. X 0.73

3234089

$28.32

74

RING,RETAINING BASIC,EXTERNAL 0.428

3234090

$10.32

74

RING,RETAINING BASIC,EXTERNAL 0.428

3234090

$10.32

75

WASHER-CUP

3234091

$9.52

75

WASHER-CUP

3234091

$9.52

76

RING,RETAINING BASIC,INTERNAL 2.047

3234269

$9.52

77

SHIM, 2.040 OD X 1.63 ID

3234273

$13.75

78

DOG, ENGAGEMENT, 6-FACE

3234928

$87.13

79

SPRING, TORSION, RETURN

3234276

$8.89

80

FORK, PIVOT SHIFT, REAR DIFF

3234285

$64.75

81

SIDE, GEAR 36T, SUBASSEMBLY

3234363

$257.76

82

Carrier, Subassembly

3234470

$322.99

83

SIDE, GEAR 36T DISCONNECT, SUBASSEMBLY

3234362

$333.32

84

GEAR SUBASSEMBLY

3234469

$72.84

85

PIN, DOWEL 10 X 45

3234238

$13.49

86

Cover, Subassembly

3234471

$269.99

87

SCREW, CAP HH 5/16-24 X 1.50

3234267

$7.14

88

SOLENOID

3235478

$295.46

89

WASHER, FENDER, .281 X 1.00 X 0.047

3234268

$7.14

90

SUBASSEMBLY, PDS LH COVER

3236312

$604.99

91

CARRIER SUBASSEMBLY LOCKING DIFFERENTIAL 1 INCH PDS

3235594

$549.99

92

BRACKET, WIRE HARNESS

3235350

$8.89

93

BEARING, NEEDLE 25 X 29 X 10

3233103

$31.75

94

Disc, Lockout

3235243

$9.52

95

O-RING, -113 VITON

3233840

$11.32

96

MAGNETIC PLUG, 3/4-16 INTERNAL HEX

3234529

$15.37
