- SPORTSMAN 570 X2 (R02) - A21SWE57A1/3A1
BODY, SEAT, PASSENGER, BACK - A21SWE57A1/3A1 (49ATVSEATBACK15570X2)

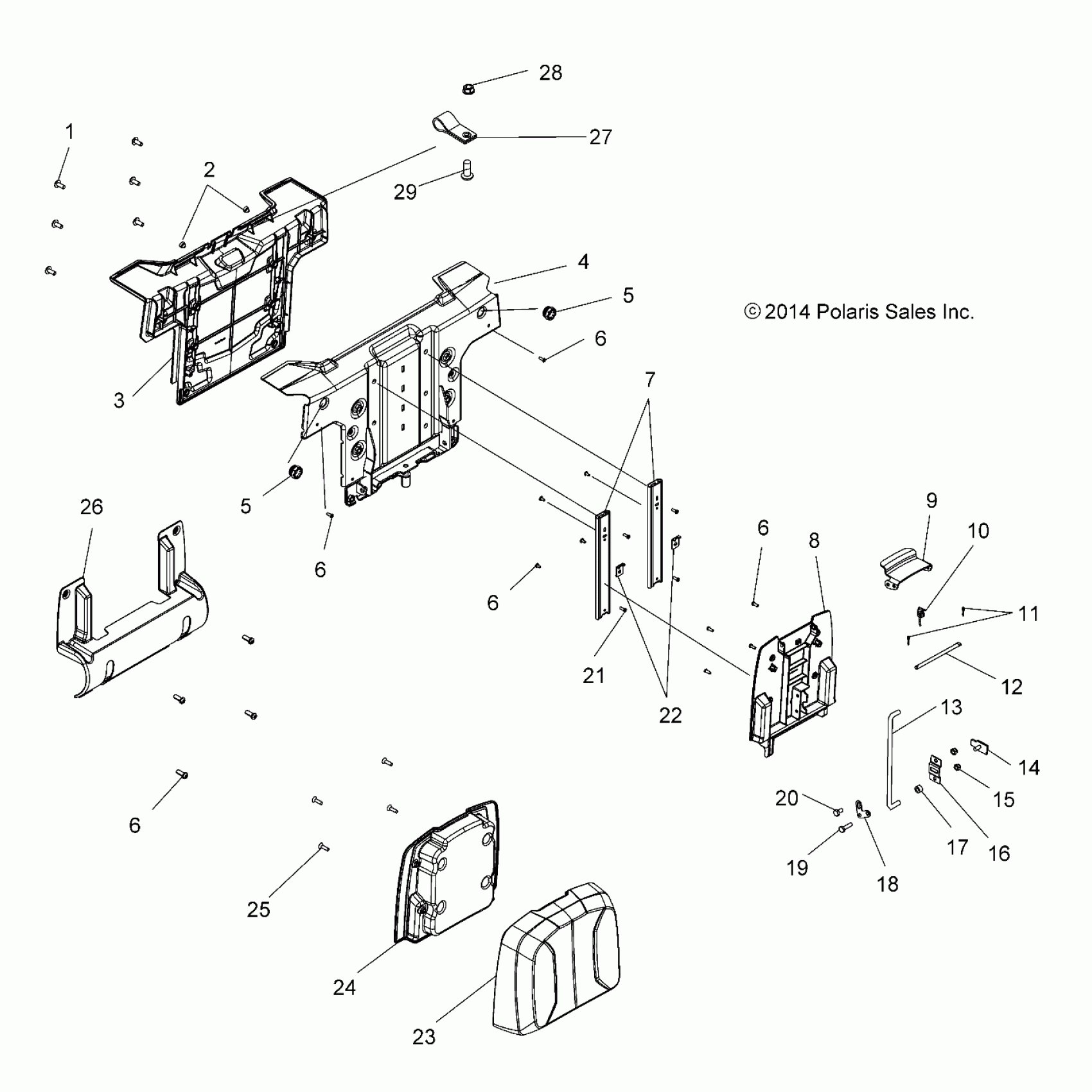

Polaris SPORTSMAN 570 X2 (R02) - A21SWE57A1/3A1 BODY, SEAT, PASSENGER, BACK - A21SWE57A1/3A1 (49ATVSEATBACK15570X2) Diagram
#
Description
Price
1
SCR-5/16-18X3/4 TR/TX-GR5
7518601
$4.79
2
BUMPER-RUBBER,1/2" OD
5413087
$2.39
3
BASE COVER, PASSENGER SEAT
5436531
$51.99
4
SUPPORT, SEAT BACK
1015676-067
$291.99
5
Grommet, Seat Latch
5412994
Unavailable
5
Grommet, Seat Latch
5412994
Unavailable
6
SCR-#10X1/2-HI/LO-TRX-Y
7512076
$1.49
6
SCR-#10X1/2-HI/LO-TRX-Y
7512076
$1.49
6
SCR-#10X1/2-HI/LO-TRX-Y
7512076
$1.49
6
SCR-#10X1/2-HI/LO-TRX-Y
7512076
$1.49
6
SCR-#10X1/2-HI/LO-TRX-Y
7512076
$1.49
7
Slide, Single, Extention
7081379
$55.99
8
BASE SLIDER, PASSENGER SEAT
5436532
$51.99
9
PLATE, HANDLE, SEAT
5250944
$35.99
10
SPRING-LATCH
7043219
$10.39
11
PIN, COTTER(10)
7661010
$1.49
12
ROD-PASSENGER SEAT
5135336
$51.99
13
ROD-HANDLE,PASS,BACK
5250162
$27.99
14
LATCH-SLIDER,CAST
5631980
$9.59
15
NUT-1/4-20-(NYLOK)-Y
7542122
$1.49
16
PLATE RETAINER SLIDE
5249903
$7.99
17
SPACER-.34 ID X .56 OD X .31
7556373
$3.19
18
PLATE-SLIDER,PIVOT
5250163
$6.39
19
SCR-SHLDR,5/16X3/8X1/4-20
7518615
$4.79
20
SCREW(10)
7512102
$3.19
21
SCR-#8-32X.375",TORX,TRI-S
7518256
$2.39
22
BRKT-STOP,SLIDER
5250454
$6.39
23
BUN, SEAT
5436149-070
$92.39
24
BASE-SEAT,TREK
5436150
$31.99
25
SCR-1/4-20X7/8,HX/SOC/FL/HD-Y
7517652
$4.79
26
COVER, LATCH
5436533-070
Unavailable
27
HANDLE, SEAT
5813086
$27.99
28
NUT-1/4-20 NYLOC FLANGED-Y
7542153
$1.59
29
SCR-1/4-20X1.00 TR/TX-M
7517685
$1.59
