- SPORTSMAN 570 X2 (R02) - A21SWE57A1/3A1
BODY, REAR BOX FRAME AND PIVOT - A21SWE57A1/3A1 (49ATVBOX15570X2)

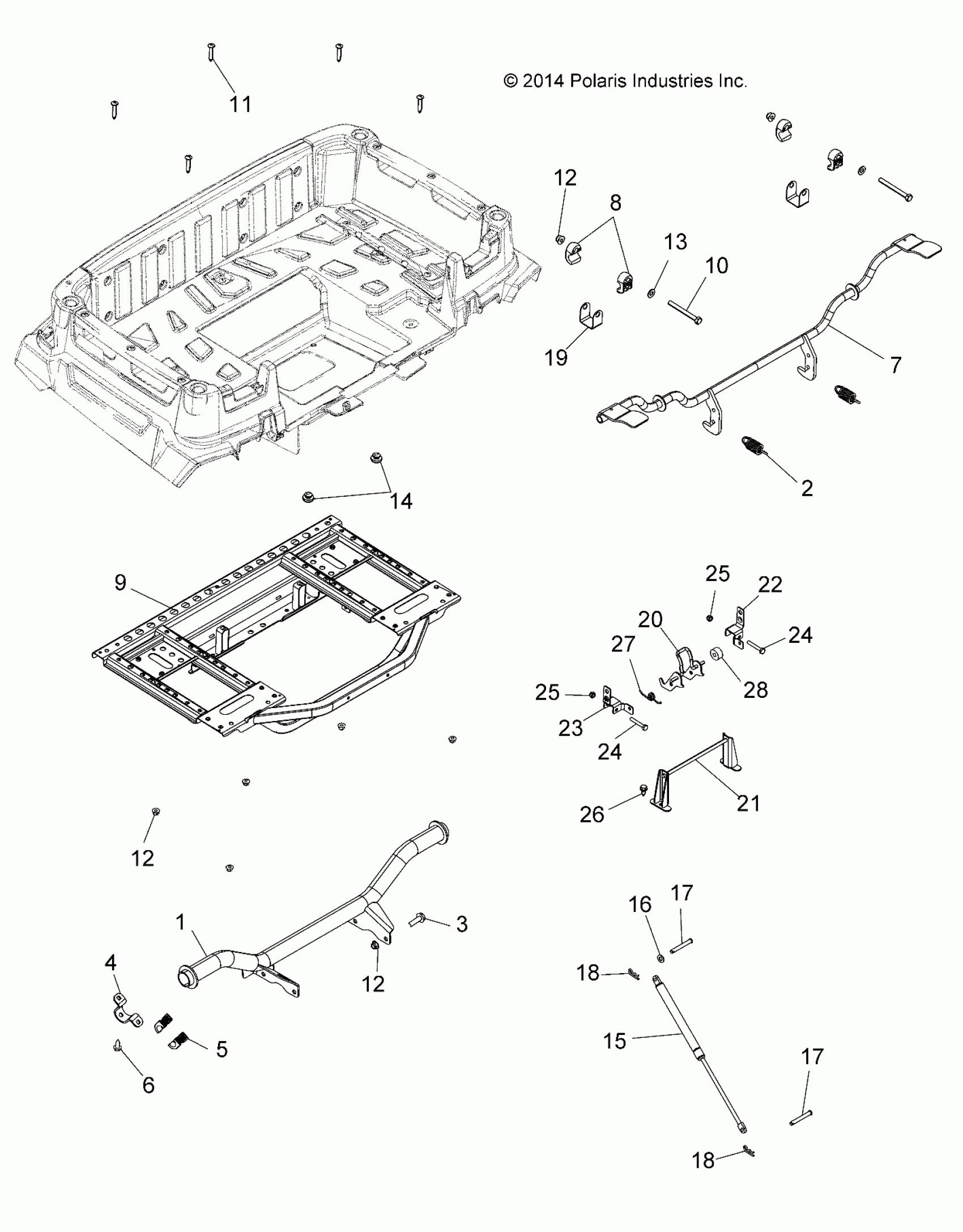

Polaris SPORTSMAN 570 X2 (R02) - A21SWE57A1/3A1 BODY, REAR BOX FRAME AND PIVOT - A21SWE57A1/3A1 (49ATVBOX15570X2) Diagram
#
Description
Price
1
PIVOT, BOX, REAR, BLACK
1020018-329
$119.99
2
SPRING-EXHAUST
7041687
$5.65
3
SCREW, HXFL-5/16-18X0.75 GR5 ZY3
7518341
$4.79
4
BRKT-BUSHING STRAP
5262582
$27.99
5
BUSHING, STEERING, UPPER
5438904
$4.79
6
SCR-TFHFL-M8X1.25X20 CHS ZOD
7518555
$2.39
7
LATCH, BOX, REAR, BLACK
1020857-067
$266.25
8
BUSHING-BOX,LATCH
5434226
$3.99
9
BOX, FRAME
1020750-329
$312.39
10
SCR-5/16-18X3 HX CP GR5-Y
7515346
$5.59
11
SCR-5/16-18X1.75 TX-M
7518235
$1.59
12
NUT-5/16-18 HX FLG NL-Y
7542343
$4.79
12
NUT-5/16-18 HX FLG NL-Y
7542343
$4.79
12
NUT-5/16-18 HX FLG NL-Y
7542343
$4.79
13
WASHER-.344X.688X.063 FL-Y
7558402
$1.49
14
BUMPER-RUBBER
5412067
$3.99
15
SHOCK, DUMP BOX
7044142
$55.99
16
SPACER-.34 ID X .56 OD X .31
7556373
$3.19
17
PIN-CLEVIS 5/16X1 1/2
7661163
$3.99
17
PIN-CLEVIS 5/16X1 1/2
7661163
$3.99
18
PIN-HITCH, 3/32-Y
7661644
$2.39
18
PIN-HITCH, 3/32-Y
7661644
$2.39
19
BRACKET, LATCH, BUSHING LINER
5259801
$6.39
20
ROD, PASSENGER SEAT, BLACK
1016335-067
$35.99
21
ROD, PASSENGER SEAT, BLACK
1020806-067
$51.99
22
BRACKET-PIVOT,SEAT,LH
5250563
$11.43
23
BRACKET-PIVOT,SEAT,RH
5250564
$11.43
24
SCR-HH-1/4-20X1.75 GR5 ZY3
7512130
$3.99
24
SCR-HH-1/4-20X1.75 GR5 ZY3
7512130
$3.99
25
NUT-1/4-20-(NYLOK)-Y
7542122
$1.49
25
NUT-1/4-20-(NYLOK)-Y
7542122
$1.49
26
SCR-TFHFL-1/4-20X0.75 CHS ZY3
7512232
$1.49
27
SPRING, LATCH
7041370
$9.59
28
SPACER-.26IDX.75ODX.38,NY,BLK
7556091
$3.99
