Description

Price

1

ASM-TRANS,DIFF,TURF,WO S.S [INCL. ALL]

1337125

$1,812.79

2

SEAL, TRIPLE LIP, NITRILE 1.969 X 2.750 X .315

3234300

$31.99

2

SEAL, TRIPLE LIP, NITRILE 1.969 X 2.750 X .315

3234300

$31.99

3

COVER, LH MACH

3234260

$398.30

4

BEARING, BALL 6010 C3 50 X 80 X 10

3234275

$27.99

4

BEARING, BALL 6010 C3 50 X 80 X 10

3234275

$27.99

5

CHAIN, SILENT, 17 WIDE X 1.0 X 86p

3234057

$263.99

6

CASE, RH, MACH

3236313

$536.79

7

BEARING-BALL,6307 C3,35X80X21

3233018

$27.99

7

BEARING-BALL,6307 C3,35X80X21

3233018

$27.99

8

SPROCKET, 19T, 1.00"

3234060

$239.99

9

DEFLECTOR, OIL

3234061

$23.99

10

SCREW, TAPPING TORX, PH 11902 X.50

3233749

$5.59

11

GEAR OUTPUT 91T, HRC

3234062

$251.99

12

RING RETAINING, IRR 7200-118

3233699

$7.19

13

SCREW, TAPPING HEX, WASHER HD 1/4-20 X 0.75

3234247

$5.59

13

SCREW, TAPPING HEX, WASHER HD 1/4-20 X 0.75

3234247

$5.59

13

SCREW, TAPPING HEX, WASHER HD 1/4-20 X 0.75

3234247

$5.59

14

COVER, BEARING, CENTER DRIVE

3234063

$27.99

15

RING, RETAINING, SHAFT, DIA. 1.375

3233364

$6.39

15

RING, RETAINING, SHAFT, DIA. 1.375

3233364

$6.39

16

SHIM, 1.700 X 1.385

3234271

$19.99

17

BEARING,BALL 6207 C3 35X72X17

3234065

$47.99

18

PINION, CENTER DRIVE, 13T

3234263

$405.59

19

RING, RETAINING BASIC, EXTERNAL, .787 SHAFT

3234067

$7.99

20

WASHER THRUST, 1.270 X 0.793 X 0.065

3233176

$9.59

21

GEAR, HELICAL-35T

3236032

$131.99

22

BEARING, NEEDLE SPLIT CAGE 22 X 26 X 10

3233009

$39.99

23

WASHER, 1.250 X 0.876 X 0.05

3233855

$10.39

24

ENGAGEMENT DOG, 6-FACE L/P

3234257

$143.99

25

DOG, ENGAGEMENT, 6 FACE

3234258

$91.99

26

RING, RETAINING BASIC EXT 0.938

3233306

$4.79

26

RING, RETAINING BASIC EXT 0.938

3233306

$4.79

27

WASHER, THRUST 1.300 X 0.995 X 0.065

3234248

$9.59

27

WASHER, THRUST 1.300 X 0.995 X 0.065

3234248

$9.59

28

SPROCKET, 38T, 6 FACE

3234290

$151.99

29

SHAFT, REVERSE, 26T

3234280

$259.99

30

GEAR, 33T, 6 FACE

3234291

$163.99

31

COLLAR-SHIFT

3234073

$31.99

32

Plate, Park, 12 Face

3233915

$39.99

33

BEARING, BALL 6203 17 X 40 X 12

3234274

$27.99

33

BEARING, BALL 6203 17 X 40 X 12

3234274

$27.99

34

SEAL, TRIPLE LIP 32 X 49 X 8 VITON

3236141

$59.99

35

BEARING, BALL, 6205 C3 25X52X15

3233019

$31.99

36

SHAFT, INPUT - 43T/15T

3236761

$243.99

37

SILENT CHAIN, .25P X 0.4 W X 50L

3234264

$95.99

38

SPRING, COMPRESSION 0.54 X 0.44 X 0.05 WIRE

3234277

$12.79

39

FORK, SHIFT

3234077

$171.99

39

FORK, SHIFT

3234077

$171.99

40

SPRING,COMPRESSION, .92 O.D. X 2.000

3234078

$19.99

40

SPRING,COMPRESSION, .92 O.D. X 2.000

3234078

$19.99

41

RAIL, SHIFT SHAFT

3234079

Unavailable

42

PIN, TENSIONER

3233432

$7.19

43

SPRING, TORSION

3233431

$23.99

44

CAM, CHAIN, TENSIONER

3233434

$12.79

45

SHOE, CHAIN TENSIONER

3233433

$27.99

46

DRUM, SHIFT MACH

3234360

$171.99

47

GEAR-SECTOR,31T

3233832

$31.99

48

SHAFT, SHIFT

3233831

$59.99

49

O-RING, -014 VITON

3233828

$6.79

50

Pawl, Detent

3233829

$31.99

51

SPRING, COMPRESSION 0.36 O.D. X 1.125

3234578

$12.79

52

COVER, SECTOR GEARS, MACHINED

3234188

$107.99

53

BELLCRANK, .510 HOLE, 92 ~

3234584

$23.99

54

NUT, LOCK, HEX FLANGE NYLON 5/16-24

3233961

$2.79

55

SWITCH, ROTARY , 2 PIN RESISTIVE

7661999

$111.99

56

RING, RETAINING BASIC EXTERNAL

3233834

$10.39

57

GEAR, SECTOR, 16T

3233839

$31.99

58

SENSOR-SPEED,TRANS

4013908

Unavailable

59

Star, Detent

3233909

$23.99

60

O-RING, -012 VITON

3233836

$6.87

61

GEAR, 13T SNORKEL,

3234262

$307.99

62

BEARING-BALL 6007 C3 35 X 62 X 14

3233265

$39.99

63

RING, RETAINING, BASIC EXTERNAL DIA 0.84

3234336

$5.59

64

TUBE, SNORKEL MACHINED

3234278

$95.99

65

SCREW, TORX TRUSS HD 43834 X 0.75

3234086

$5.59

65

SCREW, TORX TRUSS HD 43834 X 0.75

3234086

$5.59

65

SCREW, TORX TRUSS HD 43834 X 0.75

3234086

$5.59

66

SHIM, 1.180 OD X 0.995 ID

3234272

$31.99

67

RING,RETAINING BASIC,EXTERNAL 0.984

3233106

$5.59

68

SEAL, TRIPLE LIP VITON 25 X 80 X 10

3234113

$35.99

69

TUBE, VENT 90 -1/4 INCH HOSE

3234230

$9.59

70

SCREW, TAPPING HEX, WASHER HD 5/16-18 X 1.25

3234114

$7.19

71

PIN, DOWEL 5/16 X 1.0

3234244

$7.19

72

PLUG, 3/4-16, 41775 INTERNAL HEX

3233794

$15.19

73

SPRING, COMPRESSION, 0.46 I.D. X 0.73

3234089

$23.99

73

SPRING, COMPRESSION, 0.46 I.D. X 0.73

3234089

$23.99

74

RING,RETAINING BASIC,EXTERNAL 0.428

3234090

$10.39

74

RING,RETAINING BASIC,EXTERNAL 0.428

3234090

$10.39

75

WASHER-CUP

3234091

$9.59

75

WASHER-CUP

3234091

$9.59

76

RING,RETAINING BASIC,INTERNAL 2.047

3234269

$9.59

77

SHIM, 2.040 OD X 1.63 ID

3234273

$12.79

78

DOG, ENGAGEMENT, 6-FACE

3234928

$67.99

79

SPRING, TORSION, RETURN

3234276

$7.99

80

FORK, PIVOT SHIFT, REAR DIFF

3234285

$59.99

81

SIDE, GEAR 36T, SUBASSEMBLY

3234363

$219.99

82

Carrier, Subassembly

3234470

$259.99

83

SIDE, GEAR 36T DISCONNECT, SUBASSEMBLY

3234362

$283.99

84

GEAR SUBASSEMBLY

3234469

$67.99

85

PIN, DOWEL 10 X 45

3234238

$13.59

86

Cover, Subassembly

3234471

$203.99

87

SCREW, CAP HH 5/16-24 X 1.50

3234267

$7.19

88

SOLENOID

3235478

$275.99

89

WASHER, FENDER, .281 X 1.00 X 0.047

3234268

$7.19

90

SUBASSEMBLY, PDS APACHE LH COVER TURF MODE

3239505

Unavailable

91

CARRIER SUBASSEMBLY LOCKING DIFFERENTIAL 1 INCH PDS

3235594

$410.01

92

BRACKET, WIRE HARNESS

3235350

$8.79

93

BEARING, NEEDLE 25 X 29 X 10

3233103

$31.99

94

Disc, Lockout

3235243

$9.59

95

O-RING, -113 VITON

3233840

$11.19

96

MAGNETIC PLUG, 3/4-16 INTERNAL HEX

3234529

Unavailable

97

BEARING, BALL 62/32

3236118

$31.99

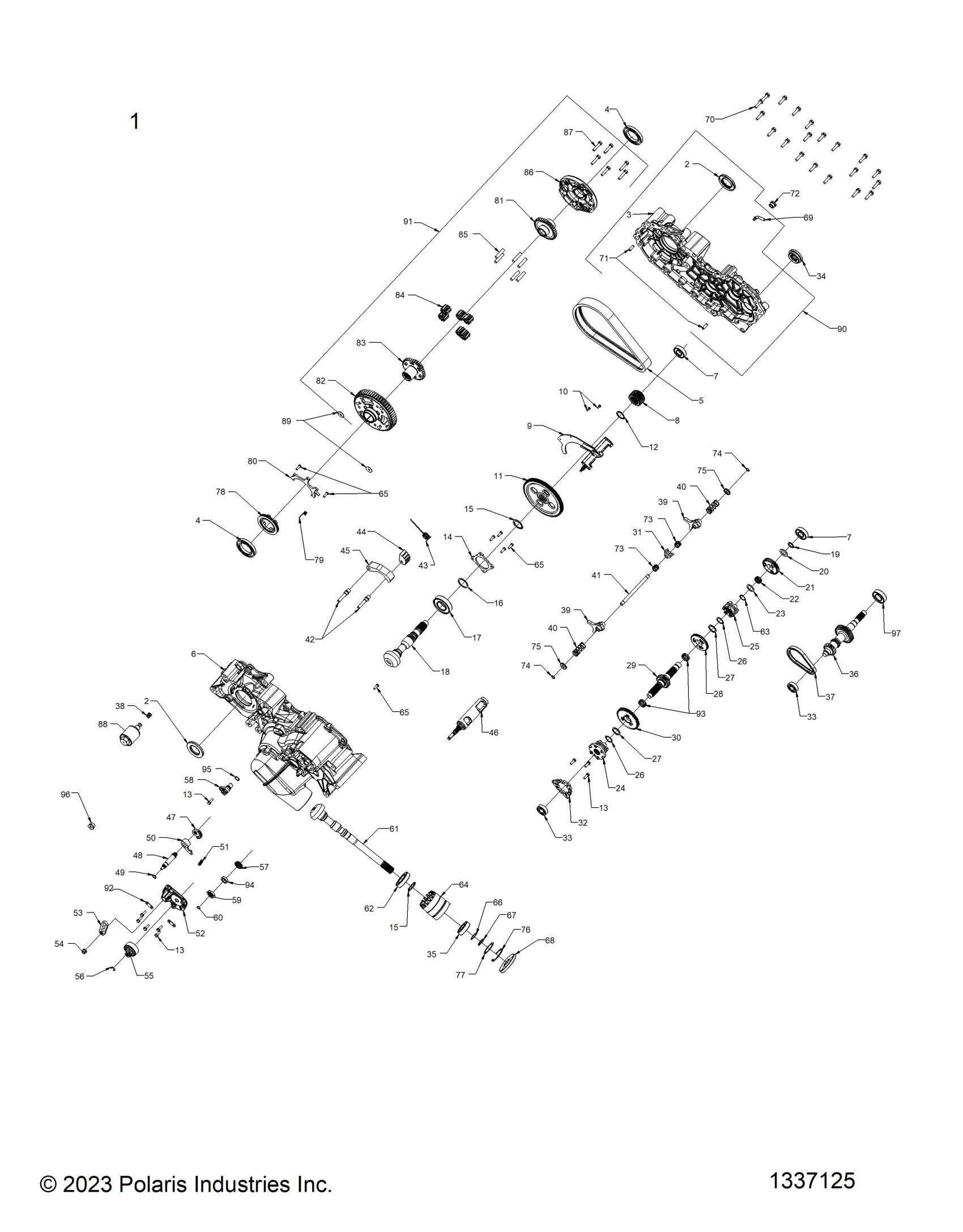

Polaris SPORTSMAN 570 X2 EPS (R01) - A26SWE57AL DRIVE TRAIN, MAIN GEARCASE - A26SWE57AL (1337125) Diagram

ASM-TRANS,DIFF,TURF,WO S.S [INCL. ALL]

SEAL, TRIPLE LIP, NITRILE 1.969 X 2.750 X .315

SEAL, TRIPLE LIP, NITRILE 1.969 X 2.750 X .315

COVER, LH MACH

BEARING, BALL 6010 C3 50 X 80 X 10

BEARING, BALL 6010 C3 50 X 80 X 10

CHAIN, SILENT, 17 WIDE X 1.0 X 86p

CASE, RH, MACH

BEARING-BALL,6307 C3,35X80X21

BEARING-BALL,6307 C3,35X80X21

SPROCKET, 19T, 1.00"

DEFLECTOR, OIL

SCREW, TAPPING TORX, PH 11902 X.50

GEAR OUTPUT 91T, HRC

RING RETAINING, IRR 7200-118

SCREW, TAPPING HEX, WASHER HD 1/4-20 X 0.75

SCREW, TAPPING HEX, WASHER HD 1/4-20 X 0.75

SCREW, TAPPING HEX, WASHER HD 1/4-20 X 0.75

COVER, BEARING, CENTER DRIVE

RING, RETAINING, SHAFT, DIA. 1.375

RING, RETAINING, SHAFT, DIA. 1.375

SHIM, 1.700 X 1.385

BEARING,BALL 6207 C3 35X72X17

PINION, CENTER DRIVE, 13T

RING, RETAINING BASIC, EXTERNAL, .787 SHAFT

WASHER THRUST, 1.270 X 0.793 X 0.065

GEAR, HELICAL-35T

BEARING, NEEDLE SPLIT CAGE 22 X 26 X 10

WASHER, 1.250 X 0.876 X 0.05

ENGAGEMENT DOG, 6-FACE L/P

DOG, ENGAGEMENT, 6 FACE

RING, RETAINING BASIC EXT 0.938

RING, RETAINING BASIC EXT 0.938

WASHER, THRUST 1.300 X 0.995 X 0.065

WASHER, THRUST 1.300 X 0.995 X 0.065

SPROCKET, 38T, 6 FACE

SHAFT, REVERSE, 26T

GEAR, 33T, 6 FACE

COLLAR-SHIFT

Plate, Park, 12 Face

BEARING, BALL 6203 17 X 40 X 12

BEARING, BALL 6203 17 X 40 X 12

SEAL, TRIPLE LIP 32 X 49 X 8 VITON

BEARING, BALL, 6205 C3 25X52X15

SHAFT, INPUT - 43T/15T

SILENT CHAIN, .25P X 0.4 W X 50L

SPRING, COMPRESSION 0.54 X 0.44 X 0.05 WIRE

FORK, SHIFT

FORK, SHIFT

SPRING,COMPRESSION, .92 O.D. X 2.000

SPRING,COMPRESSION, .92 O.D. X 2.000

RAIL, SHIFT SHAFT

PIN, TENSIONER

SPRING, TORSION

CAM, CHAIN, TENSIONER

SHOE, CHAIN TENSIONER

DRUM, SHIFT MACH

GEAR-SECTOR,31T

SHAFT, SHIFT

O-RING, -014 VITON

Pawl, Detent

SPRING, COMPRESSION 0.36 O.D. X 1.125

COVER, SECTOR GEARS, MACHINED

BELLCRANK, .510 HOLE, 92 ~

NUT, LOCK, HEX FLANGE NYLON 5/16-24

SWITCH, ROTARY , 2 PIN RESISTIVE

RING, RETAINING BASIC EXTERNAL

GEAR, SECTOR, 16T

SENSOR-SPEED,TRANS

Star, Detent

O-RING, -012 VITON

GEAR, 13T SNORKEL,

BEARING-BALL 6007 C3 35 X 62 X 14

RING, RETAINING, BASIC EXTERNAL DIA 0.84

TUBE, SNORKEL MACHINED

SCREW, TORX TRUSS HD 43834 X 0.75

SCREW, TORX TRUSS HD 43834 X 0.75

SCREW, TORX TRUSS HD 43834 X 0.75

SHIM, 1.180 OD X 0.995 ID
