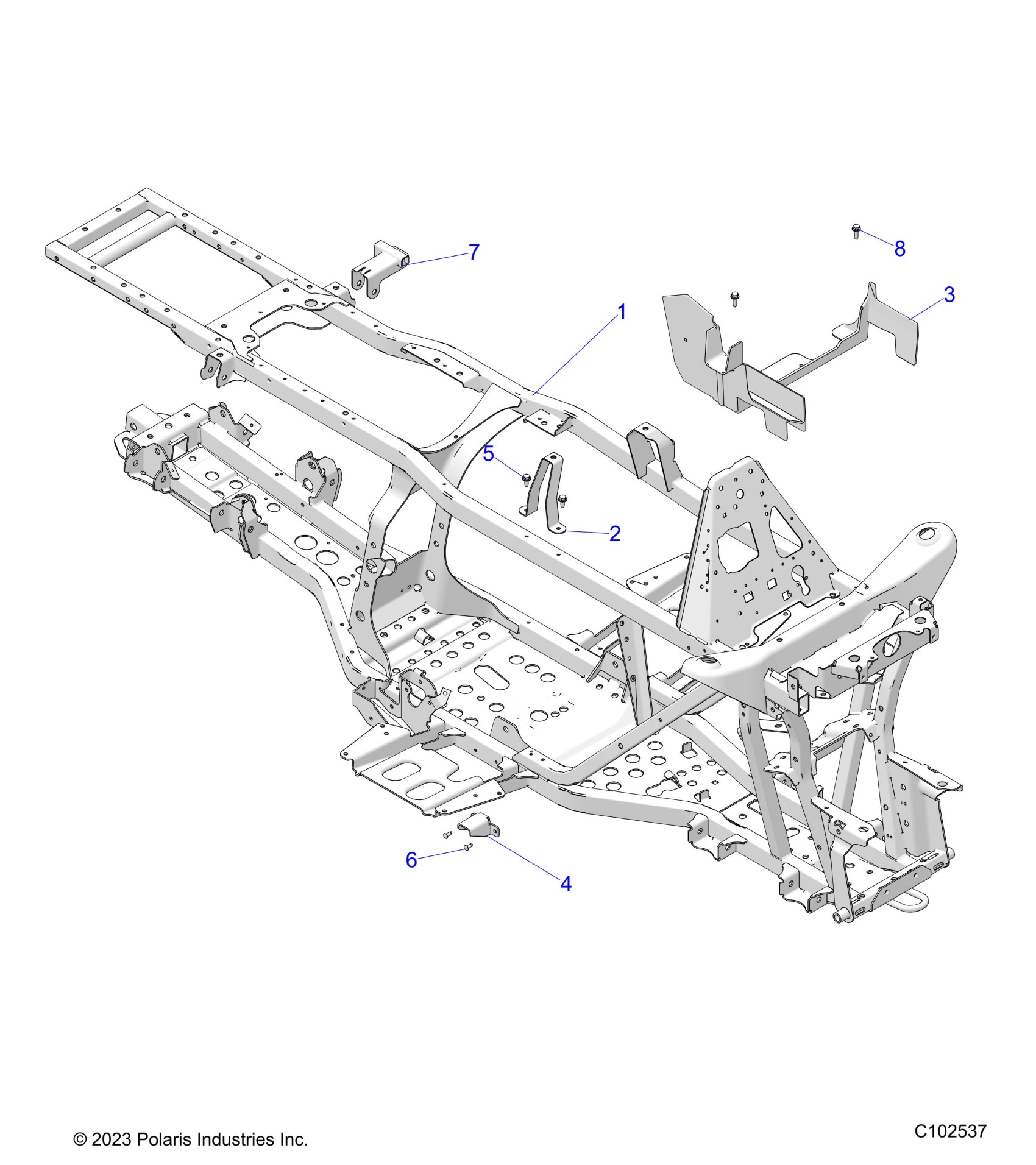

Polaris SPORTSMAN 570 X2 EPS (R01) - A26SWE57AL CHASSIS, FRAME - A26SWE57AL (C102537) Diagram

#

Description

Price

1

WELD-MAIN FRAME,TRG,STRUT,M.BK

1029692-458

$2,329.99

2

BRKT-SUPPORT,FUEL TANK,RH,M.BK

5274276-458

$28.32

3

COVER-CVT,SPLASH,SHLD,STR,BLK

5465255-070

$13.75

4

BRKT-BRK,SWITCH,PROTECTOR,BLK

5274263-458

$15.99

5

SCR-M6X1.0X20,HXHD,FLG,TDFM,BK

7518529

$1.19

6

RIVET-POP 3/16(.126-.250)-ST-B

7621432

$1.19

7

WELD-AIR SHOCK MOUNT,X2,M.BLK

1027626-458

$34.99

8

SCR-M6X1.0X20,HXHD,FLG,TDFM,BK

7518529

$1.19
