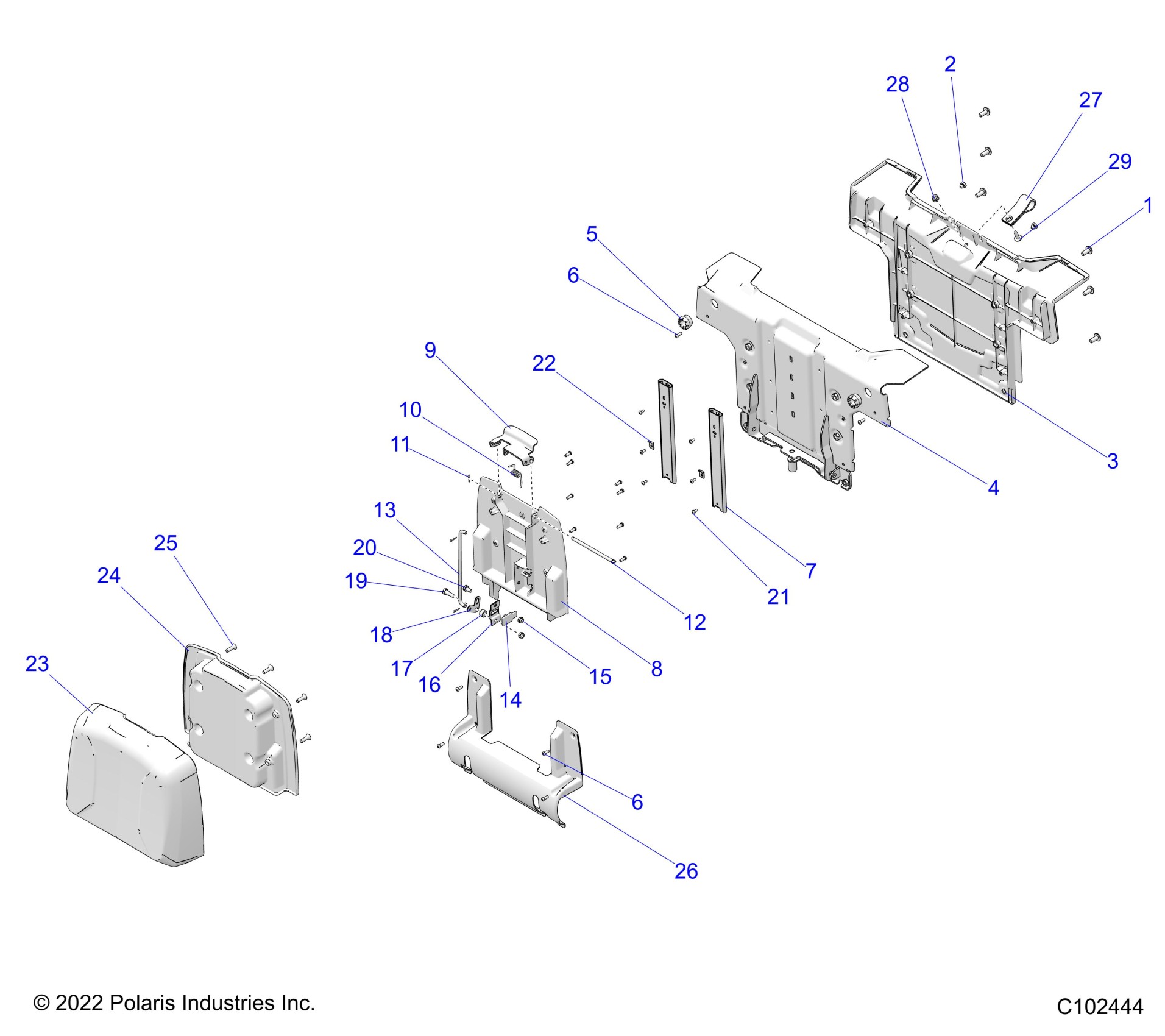

Polaris SPORTSMAN 570 X2 EPS (R01) - A26SWE57AL BODY, SEAT, PASSENGER, BACK - A26SWE57AL (C102444) Diagram

#

Description
Price

1

SCR-5/16-18X3/4 TR/TX-GR5

7518601

$4.79

2

BUMPER-RUBBER,1/2" OD

5413087

$2.39

3

BASE COVER, PASSENGER SEAT

5436531

$51.99

4

SUPPORT, SEAT BACK

1015676-067

$291.99

5

GROMMET-SEAT LATCH

5418181

$3.19

6

SCR-#10X1/2-HI/LO-TRX-Y

7512076

$1.49

6

SCR-#10X1/2-HI/LO-TRX-Y

7512076

$1.49

7

SLIDE-SINGLE EXTENSION

7082847

$43.99

8

BASE SLIDER, PASSENGER SEAT

5436532

$51.99

9

PLATE, HANDLE, SEAT

5250944

$35.99

10

SPRING-LATCH

7043219

$10.39

11

PIN, COTTER(10)

7661010

$1.49

12

ROD-PASSENGER SEAT

5135336

$51.99

13

ROD-HANDLE,PASS,BACK

5250162

$27.99

14

LATCH-SLIDER,CAST

5631980

$9.59

15

NUT-1/4-20-(NYLOK)-Y

7542122

$1.49

16

PLATE RETAINER SLIDE

5249903

$7.99

17

SPACER-.34 ID X .56 OD X .31

7556373

$3.19

18

PLATE-SLIDER,PIVOT

5250163

$6.39

19

SCR-SHLDR,5/16X3/8X1/4-20

7518615

$4.79

20

SCREW(10)

7512102

$3.19

21

SCR-#8-32X.375",TORX,TRI-S

7518256

$2.39

22

BRKT-STOP,SLIDER

5250454

$6.39

23

BUN, SEAT

5436149-070

$92.39

24

BASE-SEAT,TREK

5436150

$31.99

25

SCR-1/4-20X7/8,HX/SOC/FL/HD-Y

7517652

$4.79

26

COVER-LATCH,PASS,BACK,BLK

5466035-070

$43.99

27

HANDLE, SEAT

5813086

$27.99

28

NUT-1/4-20 NYLOC FLANGED-Y

7542153

$1.59

29

SCR-1/4-20X1.00 TR/TX-M

7517685

$1.59
