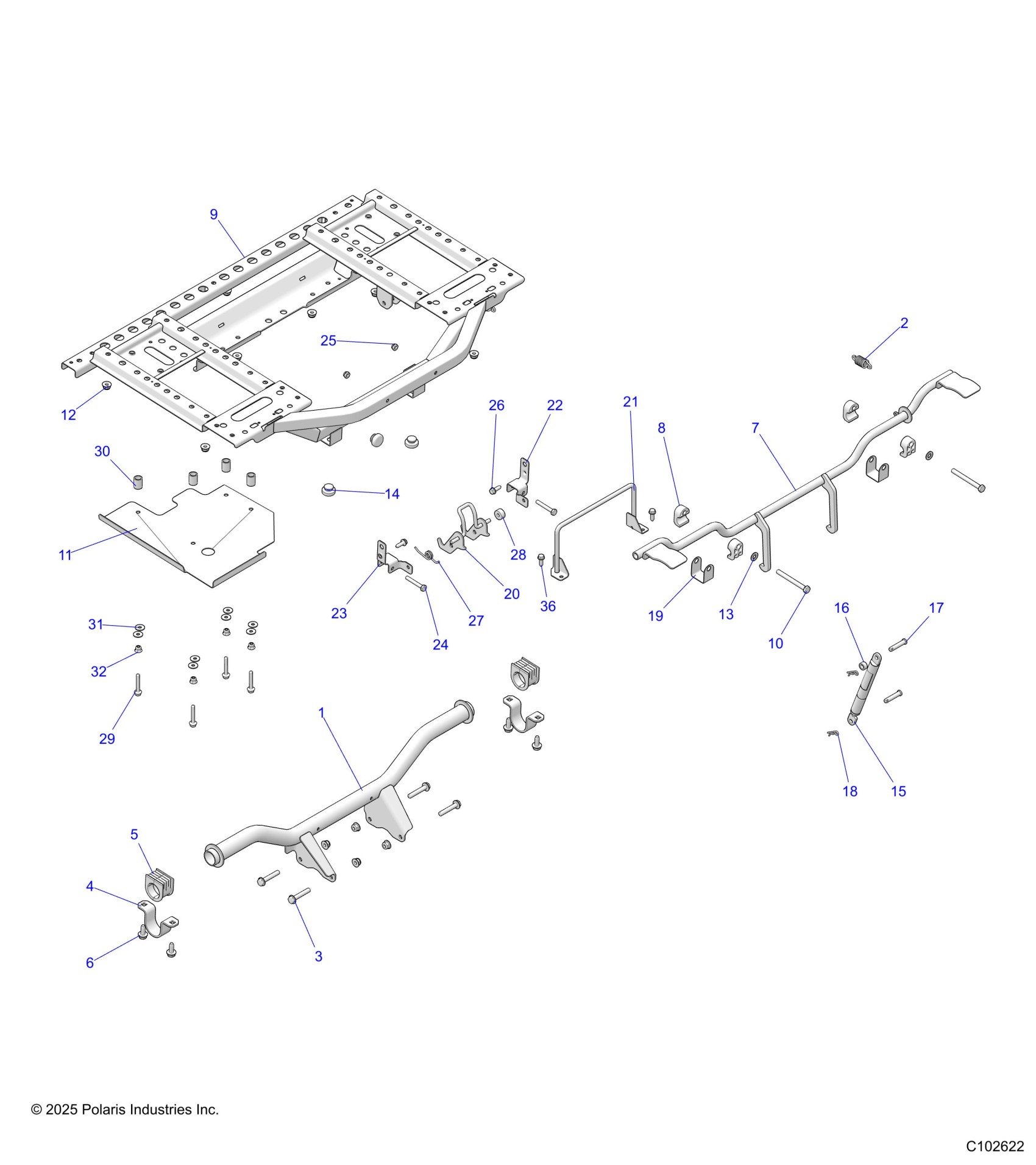

Polaris SPORTSMAN 570 X2 EPS (R01) - A26SWE57AL BODY, BOX, REAR FRAME AND PIVOT - A26SWE57AL (C102622) Diagram

#

Description
Price

1

WELD-BOX PIVOT,REAR,BLK

1029981-329

Unavailable

2

SPRING-EXHAUST

7041687

$5.65

3

SCREW, HXFL-5/16-18X0.75 GR5 ZY3

7518341

$4.79

4

BRKT-BUSHING STRAP

5262582

$27.99

5

BUSHING, STEERING, UPPER

5438904

$4.79

6

SCR-TFHFL-M8X1.25X20 CHS ZOD

7518555

$2.39

7

WELD-LATCH,BOX,REAR,M.BLK

1029433-458

$131.99

8

BUSHING-BOX,LATCH

5434226

$3.99

9

WELD-BOX,FRAME,E-COAT

1027726-329

$239.99

10

SCR-5/16-18X3 HX CP GR5-Y

7515346

$5.59

11

SHIELD-HEAT,CARGO BOX,X2

5275213

$51.99

12

NUT-5/16-18 HX FLG NL-Y

7542343

$4.79

13

WASHER-.344X.688X.063 FL-Y

7558402

$1.49

14

BUMPER-RUBBER

5412067

$3.99

15

SHOCK-DUMP BOX

7046193

Unavailable

16

SPACER-.34 ID X .56 OD X .31

7556373

$3.19

17

PIN-CLEVIS 5/16X1 1/2

7661163

$3.99

18

PIN-HITCH, 3/32-Y

7661644

$2.39

19

BRACKET, LATCH, BUSHING LINER

5259801

$6.39

20

ROD, PASSENGER SEAT, MATTE BLACK

1016335-458

$71.05

21

WELD-LATCH,X2,M.BLK

1028593-458

$15.99

22

BRACKET-PIVOT,SEAT,LH

5250563

$11.43

23

BRACKET-PIVOT,SEAT,RH

5250564

$11.43

24

SCR-HH-1/4-20X1.75 GR5 ZY3

7512130

$3.99

25

NUT-1/4-20-(NYLOK)-Y

7542122

$1.49

26

SCR-TFHFL-1/4-20X0.75 CHS ZY3

7512232

$1.49

27

SPRING, LATCH

7041370

$9.59

28

SPACER-.26IDX.75ODX.38,NY,BLK

7556091

$3.99

29

SCR-HXFL-M6X1.0X40 10.9 ZFB

7521331-40

$1.49

30

BUSHING-EXHAUST,15.87 X 21

5144284

$6.39

31

WSHR-FLAT-M6X1.6 LARGE ZTB

7558714

$1.49

32

NUT-HXFL-M6X1.0 8 ZTB NYL

7548027

$1.59
