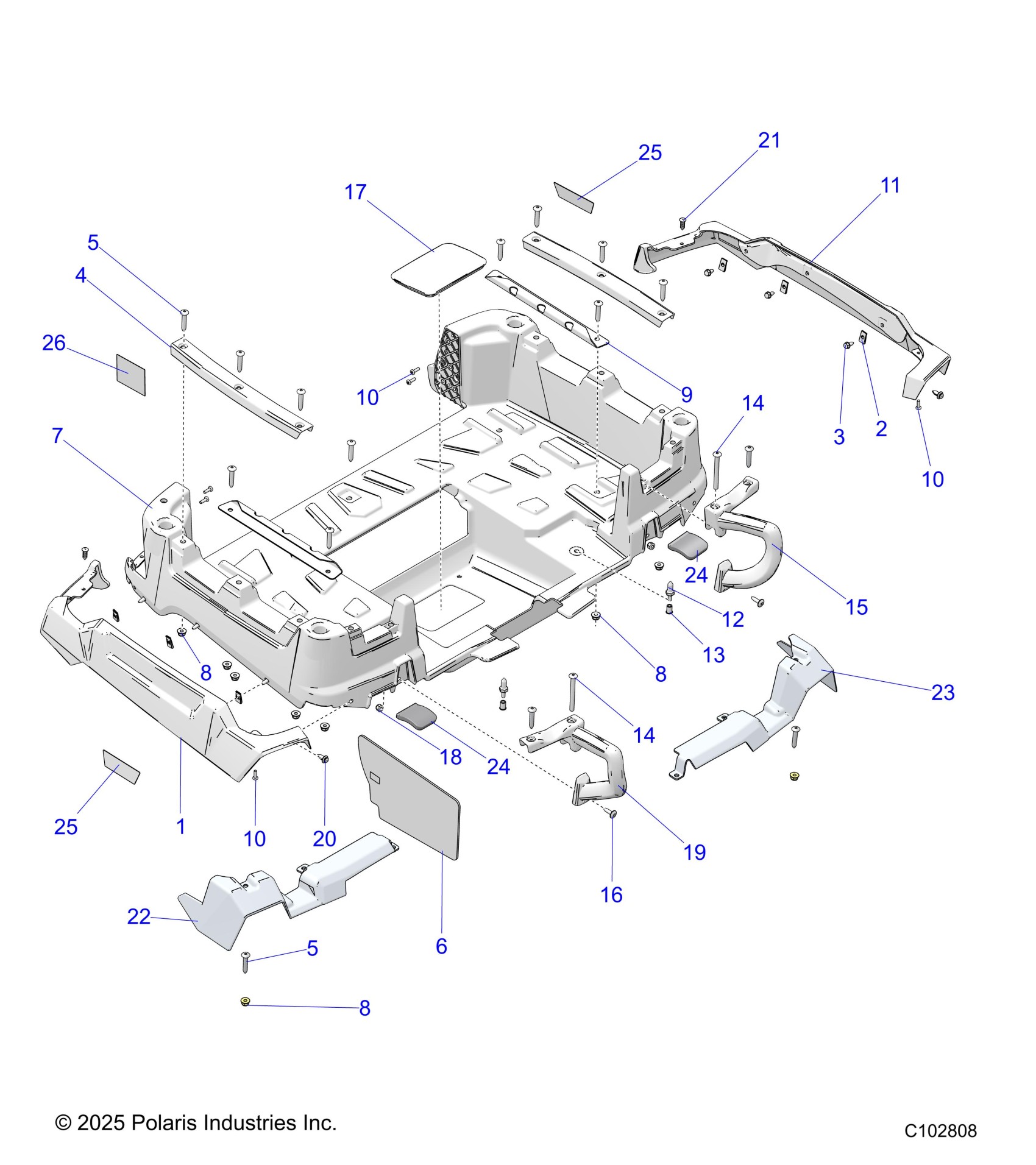

Polaris SPORTSMAN 570 X2 EPS (R01) - A26SWE57AL BODY, BOX, REAR - A26SWE57AL (C102808) Diagram

#

Description
Price

1

FENDER-REAR BOX,RH,HDPE,BLACK

5450716-070

$72.84

2

NUT-1/4-20 "U" TYPE SPEED

7670057

$1.19

3

SCR-1/4-20X5/8,TAP/R-Y

7517386

$1.19

4

Tie Down, Side, Black

5434803-070

$11.32

5

SCR-5/16-18X1.75 TX-M

7518235

$1.59

5

SCR-5/16-18X1.75 TX-M

7518235

$1.59

6

SHIELD-HEAT,X2 BOX

5814820

$32.37

7

K-ASM-BOX,X2,BLK,DOM,DECALED [INCL. 6 & WARNING DECAL]

2212534

$344.99

8

NUT-5/16-18 HX FLG NL-Y

7542343

$4.76

8

NUT-5/16-18 HX FLG NL-Y

7542343

$4.76

8

NUT-5/16-18 HX FLG NL-Y

7542343

$4.76

9

CHANNEL, REAR RACK, FRONT, MATTE BLACK

5248471-458

$44.99

10

SCREW-10X5/8-HI/LO,PN-T25,TRX-M

7518238

$3.97

10

SCREW-10X5/8-HI/LO,PN-T25,TRX-M

7518238

$3.97

10

SCREW-10X5/8-HI/LO,PN-T25,TRX-M

7518238

$3.97

11

FENDER-REAR BOX,LH,HDPE,BLACK

5450715-070

$72.84

12

Pin, Seat Latch

5910284

$14.56

13

Insert-1/4-20

7542143

$5.56

14

SCR-5/16-18X3.25 TX-M

7518215

$4.76

14

SCR-5/16-18X3.25 TX-M

7518215

$4.76

15

HANDLE-PASSENGER, LH,BLK

5436491-070

$44.51

16

SCR-1/4-20X1.00 TR/TX-M

7517685

$1.59

17

Plug, Drain, Box

5413002

$27.78

18

NUT-1/4-20 NYLOC FLANGED-Y

7542153

$1.59

19

HANDLE-PASSENGER, RH,BLK

5436492-070

$44.51

20

RIVET-TUFLOK,.315-.325X.787

7661855

$1.19

21

CLIP-XMAS TREE, .945 X .228

7670101

$2.38

22

COVER-REAR,BOX,X2,LH,BLK

5466019-070

$32.37

23

COVER-REAR,BOX,X2,RH,BLK

5466020-070

$32.37

24

HANDLE-BOX,LATCH,X2

5418952

$12.94

24

HANDLE-BOX,LATCH,X2

5418952

$12.94

25

Decal, Reflector, Red

7174412

$11.32

25

Decal, Reflector, Red

7174412

$11.32

26

DECAL-WARN,NEVER CARRY FUEL

7186122

Unavailable
