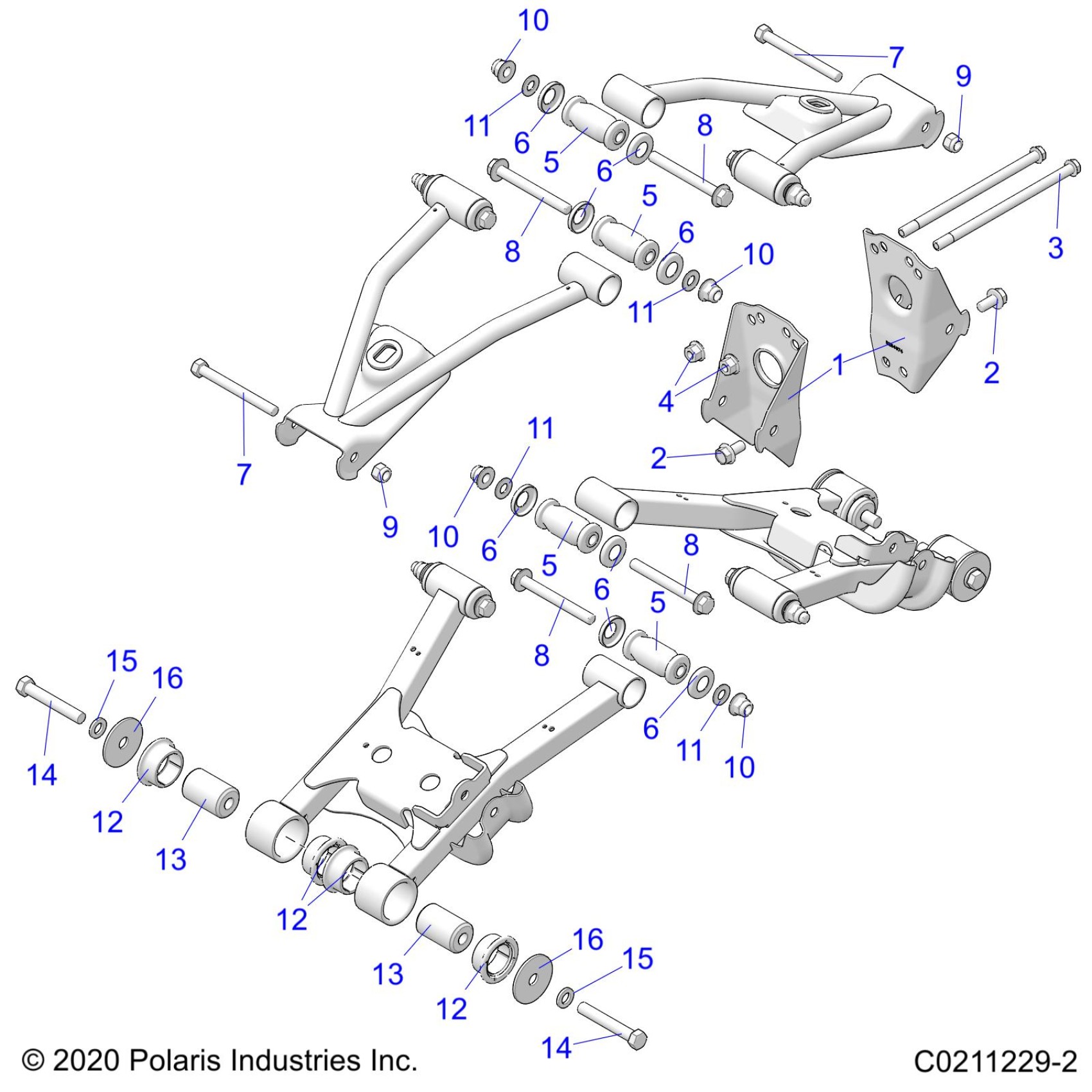

Polaris SPORTSMAN 570 UTILITY (R02) - A25SEK57A4 SUSPENSION, REAR CONTROL ARM, MOUNTING - A25SEK57A4 (C0211229-2) Diagram

#

Description
Price

1

BRKT-CONTROL-ARM,PIVOT10MM,BLK

5264874-329

$31.99

2

SCR-3/8-16X3/4 HX FLNG-GR5-Y

7517632

$5.59

2

SCR-3/8-16X3/4 HX FLNG-GR5-Y

7517632

$5.59

3

BOLT-3/8-16X7 HX FLNG GR5-Y

7518365

$7.91

4

NUT-FLANGED,3/8-16 NYLON-Z

7547180

$2.39

5

BUSHING-SUSPENSION,RUBBER

5417111

$6.39

5

BUSHING-SUSPENSION,RUBBER

5417111

$6.39

5

BUSHING-SUSPENSION,RUBBER

5417111

$6.39

5

BUSHING-SUSPENSION,RUBBER

5417111

$6.39

6

WASHER-CAP,SUSP,ID 28.8

7557210

$5.27

6

WASHER-CAP,SUSP,ID 28.8

7557210

$5.27

6

WASHER-CAP,SUSP,ID 28.8

7557210

$5.27

6

WASHER-CAP,SUSP,ID 28.8

7557210

$5.27

6

WASHER-CAP,SUSP,ID 28.8

7557210

$5.27

6

WASHER-CAP,SUSP,ID 28.8

7557210

$5.27

7

SCR-3/8-24X3 3/4 HX CP GR5-Y

7515472

$2.39

7

SCR-3/8-24X3 3/4 HX CP GR5-Y

7515472

$2.39

8

SCR-HXFL-M10X1.25X90 10.9 ZOD

7521024

$3.99

8

SCR-HXFL-M10X1.25X90 10.9 ZOD

7521024

$3.99

8

SCR-HXFL-M10X1.25X90 10.9 ZOD

7521024

$3.99

8

SCR-HXFL-M10X1.25X90 10.9 ZOD

7521024

$3.99

9

NUT-3/8-24(NYLOK)-Y

7542439

$1.49

9

NUT-3/8-24(NYLOK)-Y

7542439

$1.49

10

NUT-HXFL M10X1.25 8 ZTB NYL

7547333

$1.59

10

NUT-HXFL M10X1.25 8 ZTB NYL

7547333

$1.59

10

NUT-HXFL M10X1.25 8 ZTB NYL

7547333

$1.59

10

NUT-HXFL M10X1.25 8 ZTB NYL

7547333

$1.59

11

WASHER-3/8 FW SAE STL THRU-HRD

7556153

$1.99

11

WASHER-3/8 FW SAE STL THRU-HRD

7556153

$1.99

11

WASHER-3/8 FW SAE STL THRU-HRD

7556153

$1.99

11

WASHER-3/8 FW SAE STL THRU-HRD

7556153

$1.99

12

BUSHING, CONTROL, LOWER, BLACK

5418905

$4.79

12

BUSHING, CONTROL, LOWER, BLACK

5418905

$4.79

12

BUSHING, CONTROL, LOWER, BLACK

5418905

$4.79

13

BUSHING, BEARING CARRIER

5632291

$23.99

13

BUSHING, BEARING CARRIER

5632291

$23.99

14

SCR-HH-7/16-14X2.75 GR5 ZY3 NY

7517873

$2.39

14

SCR-HH-7/16-14X2.75 GR5 ZY3 NY

7517873

$2.39

15

WASHER-LOCK, 7/16-B

7552614

$1.59

15

WASHER-LOCK, 7/16-B

7552614

$1.59

16

WASHER, FLAT

7555740

$1.59

16

WASHER, FLAT

7555740

$1.59
