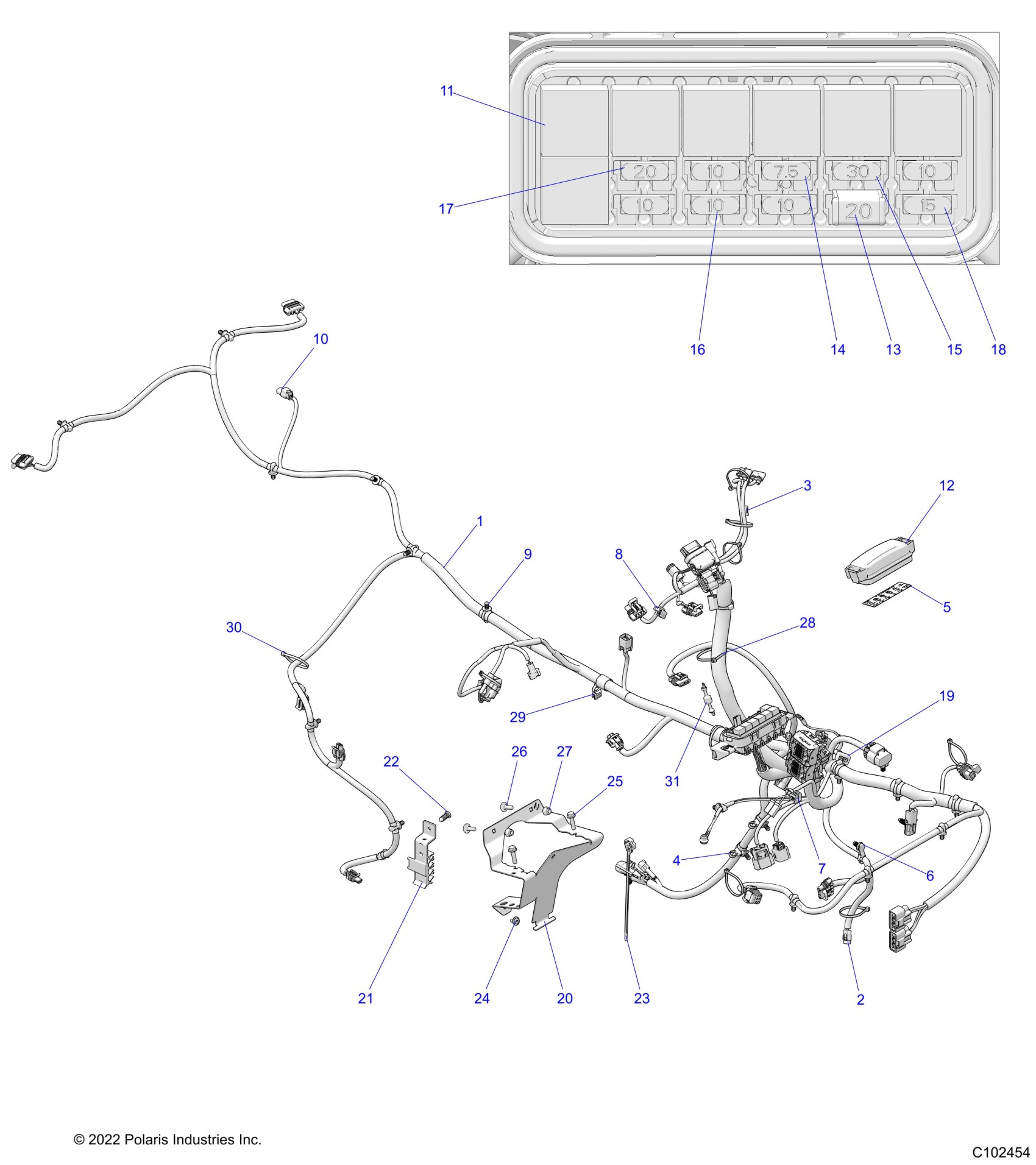

Polaris SPORTSMAN 570 UTILITY (R02) - A25SEK57A4 ELECTRICAL, MAIN WIRE HARNESS - A25SEK57A4 (C102454) Diagram

#

Description
Price

1

HARN-MAIN,SPMN,LED,PREM [INCL.1-19, QTY3 of 30,31]

2416122

$1,297.99

2

CONNECTOR-CAP, WINCH CONTACTOR

4014891

$7.99

3

CONNECTOR-CAP, WINCH SWITCH

4014890

$8.79

4

CABLE-TIE,7-46MM,DUAL-LOOP

7081033

$3.99

5

LABEL-FUSE BOX

7300335

Unavailable

6

CLIP-FIR TREE,12.5MM OFF,90DEG

7082406

$3.19

7

CLIP-EDGE, 3-6MM THICKNESS

7082404

$9.59

8

CLIP-EDGE, 1-3mm THICKNESS

7082402

$7.19

9

CLIP FIR-TREE,DIA6-33MM

7081496

$4.79

10

CAP EVAP CONNECTOR

4018066

$3.99

11

RELAY-SPST,12V,20A,EPXY,HFA

4016819

$32.37

12

COVER-DIAGNOSTIC,W/CLIP

4012170

$8.08

13

BREAKER-CIRCUIT,20 AMP

4011372

$40.46

14

FUSE - 7.5, MINI BLADE (BROWN)

4011068

Unavailable

15

FUSE-MAIN,30 AMP

2434015

$7.19

16

FUSE-IGNITION,10 AMP

2434016

$4.79

17

FUSE-PARK,20 AMP

2434017

Unavailable

18

FUSE-15AMP,MINI BLADE

4010859

$7.19

19

DIODE - 6 AMP, 1/4, 3/16 TERM

2410000

$35.99

20

BRKT-FUSE BLOCK,M.BLK

5268539-458

$27.99

21

CLIP-ROUTING,MIDFRAME

5457074

$3.99

22

CLIP-XMAS TREE, .945 X .228

7670101

$2.39

23

CABLE-TIE,M10X1.5 STUD MNT

7082649

$3.99

24

SCR-10-24X1/2, PHTXTRIRD, SEMS-Y

7512084

$1.49

25

SCREW-HXFL-M6X1.0X20 8.8 ZY3

7518576

$3.19

26

SCREW, RH CARRIAGE

7519249

$3.19

27

NUT-HXFL-M6X1.0 8 ZTB NYL

7548027

$1.59

28

CABLE-TIE,10-102MM,WEATH.-RES.

7080761

$2.39

29

CLIP-EDGE,1-3MM,6-45MM,SERT. [TO 9/30/2024]

7081808

$5.59

29

CLIP-EDGE,1-3MM THICKNESS [FRM /30/2024]

7082428

$4.79

30

CABLE-TIE,DIA12-50MM,WTHR-RES.

7080138

$2.41

31

DIODE - 6 AMP, 1/4, 3/16 TERM

2411035

$51.99
