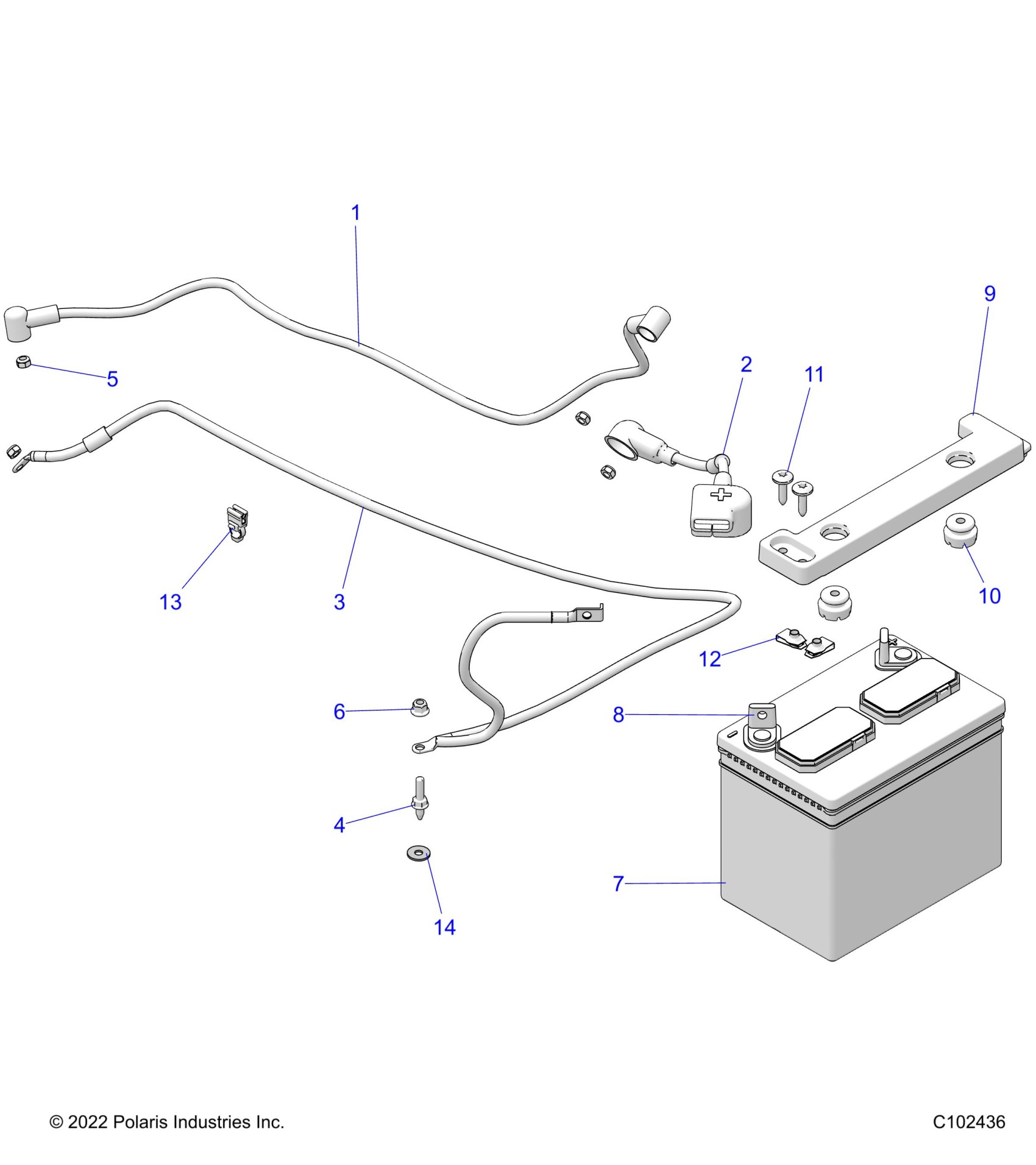

Polaris SPORTSMAN 570 UTILITY (R02) - A25SEK57A4 ELECTRICAL, BATTERY - A25SEK57A4 (C102436) Diagram

#

Description

Price

1

CABLE, BATTERY, 6 GAUGE, FLAT

4014424-750

$43.99

1

INSULATOR-CABLE

5410346

$6.39

2

CABLE-BATT,6GA,RD,BAT/SOL

4018992

$35.99

3

CABLE-BATT,6GA,BK,BAT/START/FR

4018993

$51.99

4

STUD-M6X1.0X19-M6 TAPTITE

7519333

$7.99

5

NUT-6MM X 1 NYLOK-Z

7546703

$1.49

6

NUT-M6 FLANGE,NYLOC

7547274

$1.49

7

BATTERY-U1,340CCA

4017419

$107.99

8

K-BATTERY BOLT

2207682

$4.79

9

STRAP-BATTERY HOLD DOWN,BLK

5457517-070

$11.19

10

GROMMET-BATTERY HOLD DOWN

5417509

$4.79

11

SCR-TXTH-M6X1.0X25 ZFB

7519650

$3.99

12

NUT-M6-1.0, U-TYPE (2.5-3.8)

7547674

$1.49

13

CLIP-EDGE,1-3MM THICKNESS

7082428

$4.79

14

WSHR-6.4X18.0X1.6 ZPB

7556064

$5.22
