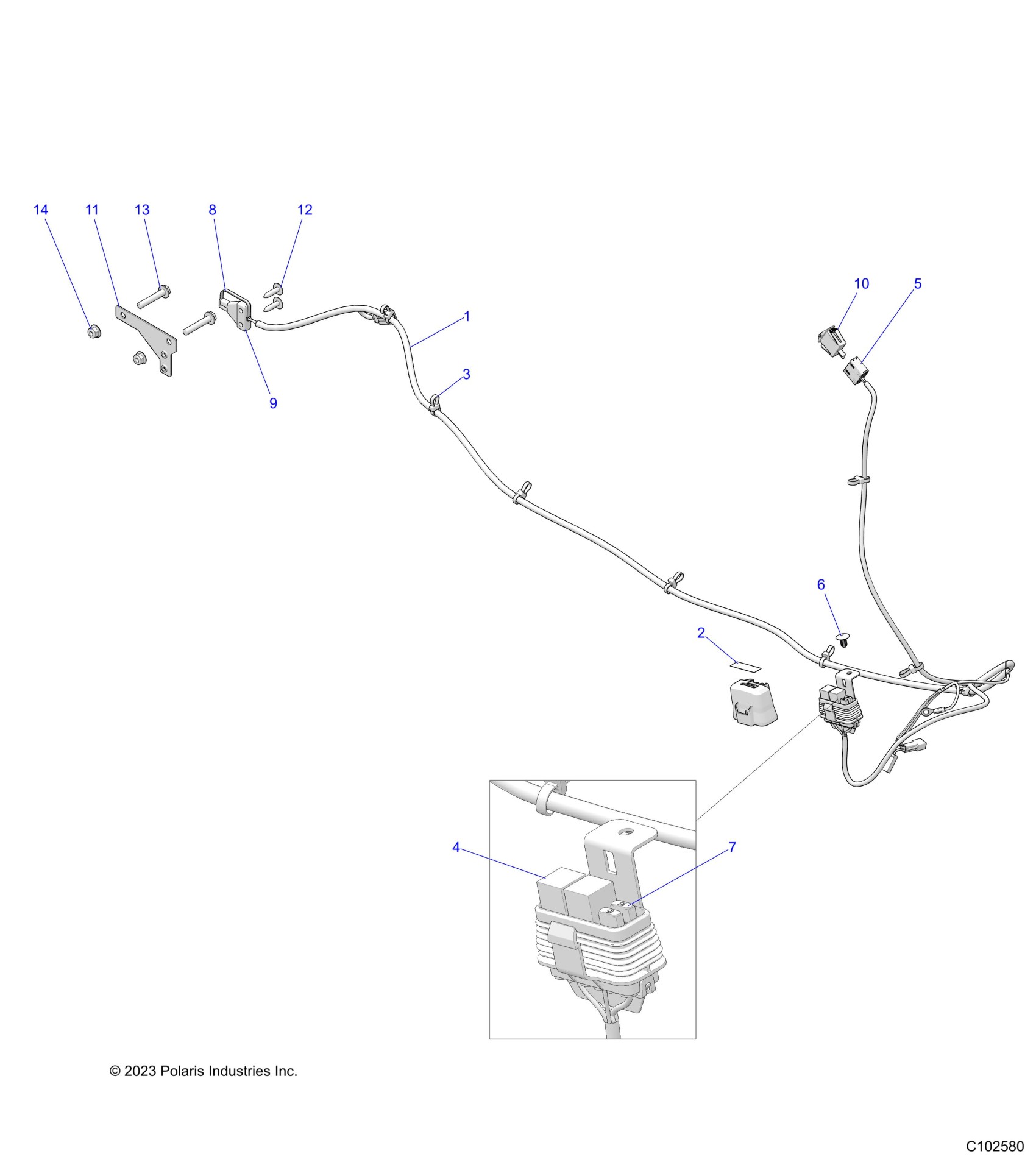

Polaris SPORTSMAN 570 UTILITY (R02) - A25SEK57A4 ELECTRICAL, ACCESSORY HARNESS - A25SEK57A4 (C102580) Diagram

#

Description

Price

1

HARN-ACC PWR,REAR [INCL. 2-5,7-9]

2415619

$180.39

2

DECAL-FUSEBOX, FRH-A12

7195376

Unavailable

3

CABLE-TIE,DIA6-38MM,DUAL-LOOP

7081916

$4.79

4

RELAY-SPST,12V,20A,EPXY,HFA

4016819

$32.37

5

CONNECTOR-SW, OTTO K1, 5 WIRE

4016237

$5.27

6

CLIP-PLASTIC DART, NYLON

7670088

$1.59

7

FUSE-15AMP,MINI BLADE

4010859

$7.19

8

COVER-AUX, MOLD W/ 180 TERM, BLK

2413690

$7.19

9

CONN-MOLDED W/ .180 TERM, BLK

2413689

$31.99

10

SWITCH-AUX,ON/OFF

4016371

$47.99

11

BRKT-AUX,PLUG,MTTE BLK

5258789-458

$12.79

12

SCR-1/4-20X1.00 TR/TX-M

7517685

$1.59

13

SCREW, HXFL-5/16-18X0.75 GR5 ZY3

7518341

$4.79

14

NUT-5/16-18 HX FLG NL-Y

7542343

$4.79
