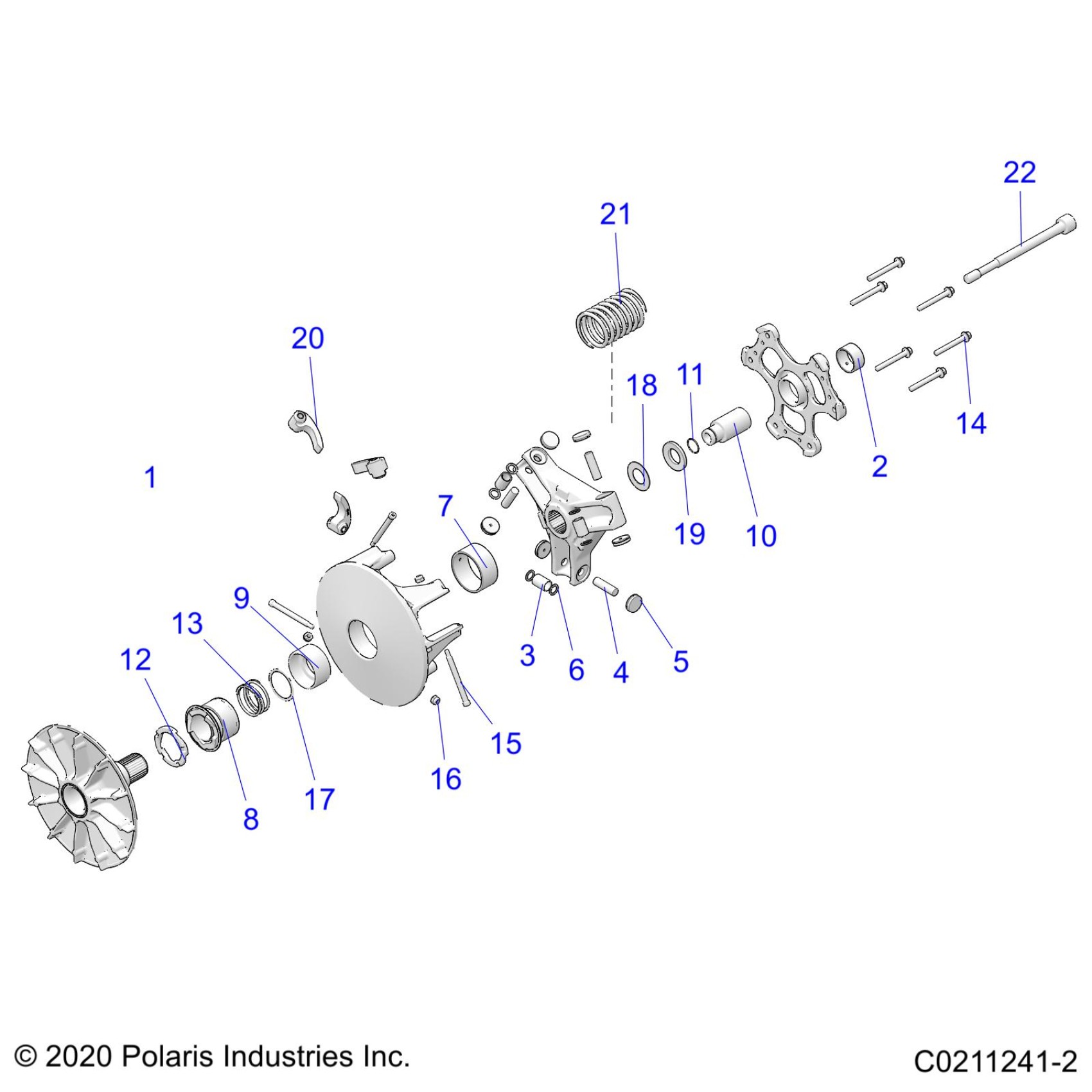

Polaris SPORTSMAN 570 UTILITY (R02) - A25SEK57A4 DRIVE TRAIN, PRIMARY CLUTCH - A25SEK57A4 (C0211241-2) Diagram

#

Description
Price

1

ASM-DRIVE CLUTCH,BASIC,P190X [INCL. 2-19]

1327155

$570.12

2

BUSHING-COVER,38.1MM

3514983

$6.39

3

ASM-SPIDER,22MM,P90X [INCL 3-6]

1323837

$79.19

3

ASM-SPIDER ROLLER,P90X

1323717

$32.37

4

PIN-SPIDER

5140978

$10.39

5

BUTTON-CLUTCH,WH. STRIPE,22MM

5457753

$7.99

6

WASHER-CLUTCH,SPIDER ROLLER

5453844

$1.59

7

BUSHING-MOVABLE,50MM

3514984

$12.79

8

ASM-SLEEVE,EBS,15DEG

1327173

$96.81

9

SPACER-CLUTCH,P90X

5140729

$10.39

10

POST-CLUTCH,OUTER

5143052

$27.99

11

O-RING 1.0X17.5MM,90A

5418306

$2.38

12

HELIX,DRIVE,P90X,15DEG

5456000

$39.99

13

SPRING-ONEWAY,EBS

7044697

$10.39

14

SCR-M6X1.0X50.0 HX/FL-Y/D

7517932

$3.99

15

BOLT-SHIFT WEIGHT,BUSHED

7520585

$5.59

16

NUT-10-24-FLEX LOC-Z

7541906

$3.19

17

WASHER-CLUTCH,VESPEL

7556335

$6.39

18

WSHR-20.5X38.0X0.75 ZY3

7557017

$7.99

19

WSHR-BELLE,21X37.5X3.8,SPC

7557018

$10.39

20

ASM-WEIGHT-SHIFT,36-67

1323850

$31.99

21

SPRING-CLUTCH,60-150

7045660

$35.99

22

SCR-SH-7/16-20X6.375 GR8

7520816

$28.86
