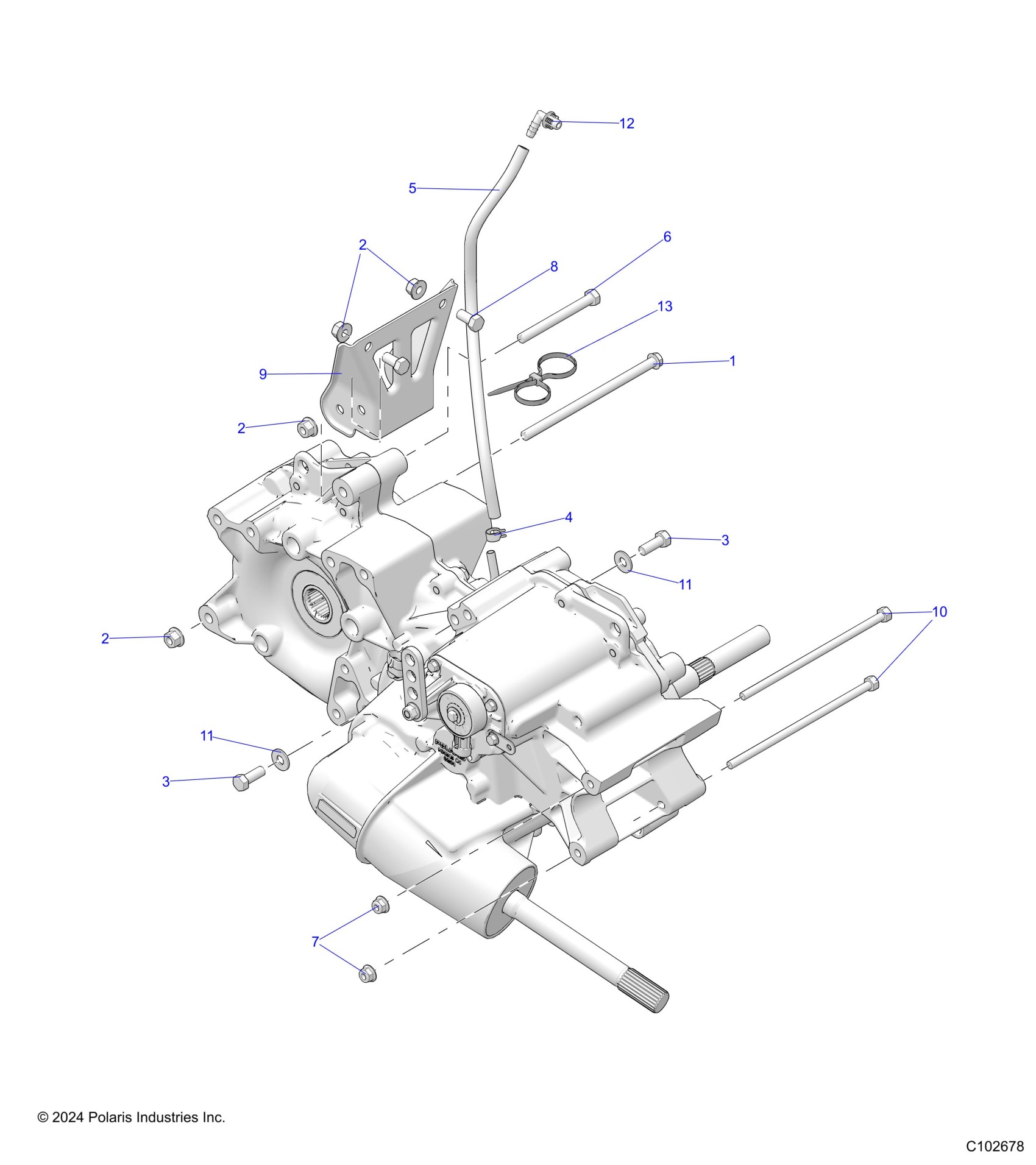

Polaris SPORTSMAN 570 UTILITY (R02) - A25SEK57A4 DRIVE TRAIN, MAIN GEARCASE MOUNTING - A25SEK57A4 (C102678) Diagram

#

Description
Price

1

BOLT-3/8-16X7 HX FLNG GR5-Y

7518365

$7.91

2

NUT-FLANGED,3/8-16 NYLON-Z

7547180

$2.39

2

NUT-FLANGED,3/8-16 NYLON-Z

7547180

$2.39

2

NUT-FLANGED,3/8-16 NYLON-Z

7547180

$2.39

3

SCREW

7518006

$3.19

3

SCREW

7518006

$3.19

4

CLAMP-HOSE, 17/32, GREEN

7081432

$3.99

5

FUEL LINE-31 CENTIMETERS

-------

Unavailable

6

SCREW

7517646

$7.19

7

NUT-5/16-18 HX FLG NL-Y

7542343

$4.79

8

BOLT(10)

7515522

$3.99

9

SUPPORT, TRANSMISSION, UPPER, BLACK

5254309-329

$43.99

10

SCR-5/16-18X7.5,HXCP,GR,Y

7518648

$7.19

11

WASHER-.385X.88X.075,FL-Y THR

7556242

$2.39

11

WASHER-.385X.88X.075,FL-Y THR

7556242

$2.39

12

FITTING-VENT LINE,RND,90,1/4"

5453906

$4.66

13

CABLE-TIE,DIA6-38MM,DUAL-LOOP

7081916

$4.79
