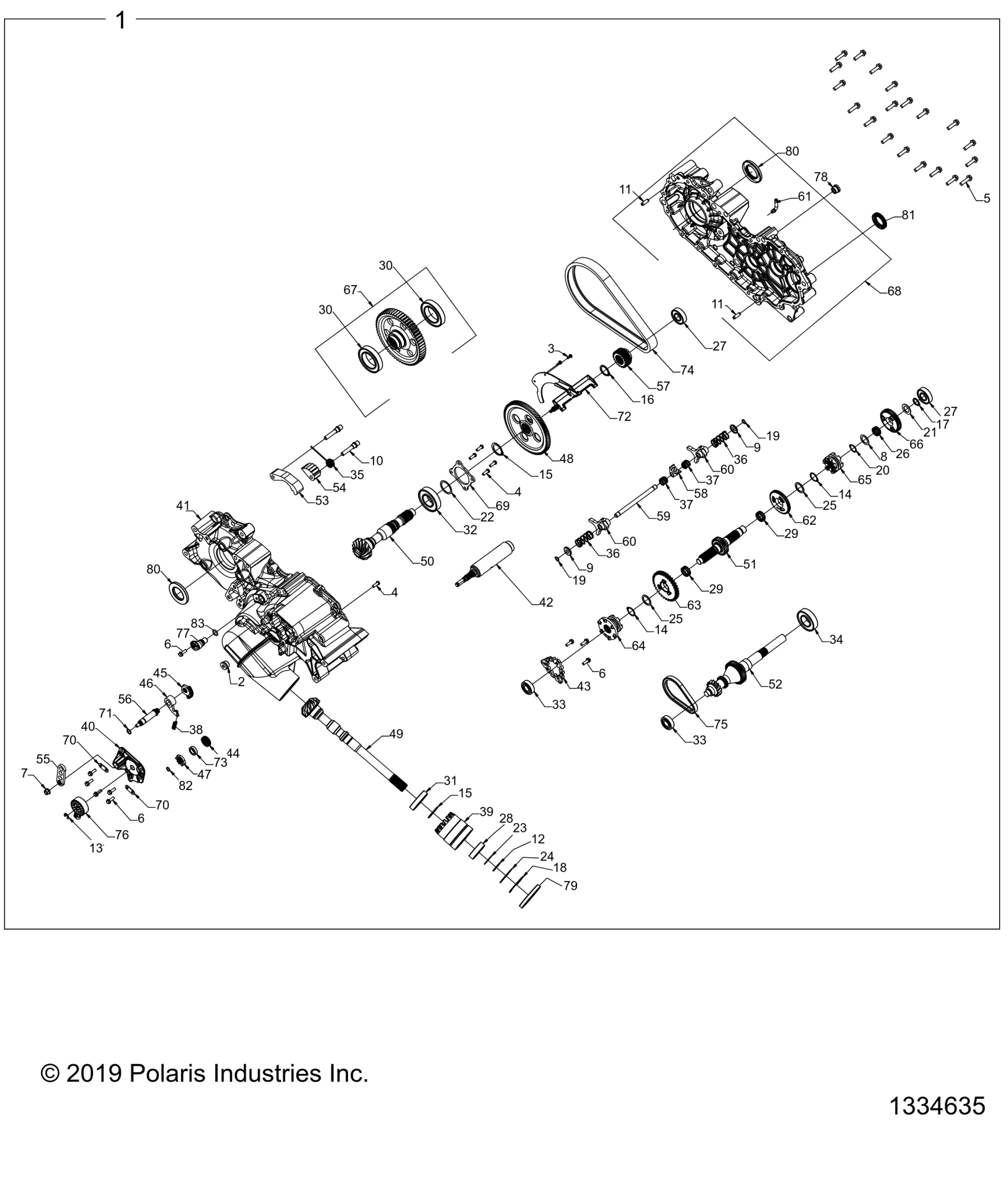

Polaris SPORTSMAN 570 UTILITY (R02) - A25SEK57A4 DRIVE TRAIN, MAIN GEARCASE - A25SEK57A4 (1334635) Diagram

#

Description
Price

1

ASM-TRANSMISSION,P190X [INCL. ALL]

1334635

$4,399.99

2

MAGNETIC PLUG, 3/4-16 INTERNAL HEX

3234529

$15.37

3

SCREW, TAPPING TORX, PH 11902 X.50

3233749

$5.65

4

SCREW, TORX TRUSS HD 43834 X 0.75

3234086

$5.56

5

SCREW, TAPPING HEX, WASHER HD 5/16-18 X 1.25

3234114

$7.14

6

SCREW, TAPPING HEX, WASHER HD 1/4-20 X 0.75

3234247

$5.56

6

SCREW, TAPPING HEX, WASHER HD 1/4-20 X 0.75

3234247

$5.56

6

SCREW, TAPPING HEX, WASHER HD 1/4-20 X 0.75

3234247

$5.56

7

NUT, LOCK, HEX FLANGE NYLON 5/16-24

3233961

$3.32

8

WASHER, 1.250 X 0.876 X 0.05

3233855

$10.32

9

WASHER-CUP

3234091

$9.52

9

WASHER-CUP

3234091

$9.52

10

PIN, TENSIONER

3233432

$7.14

11

PIN, DOWEL 5/16 X 1.0

3234244

$7.27

11

PIN, DOWEL 5/16 X 1.0

3234244

$7.27

12

RING,RETAINING BASIC,EXTERNAL 0.984

3233106

$5.56

13

RING, RETAINING BASIC EXTERNAL

3233834

$10.32

14

RING, RETAINING BASIC EXT 0.938

3233306

$4.76

14

RING, RETAINING BASIC EXT 0.938

3233306

$4.76

15

RING, RETAINING, SHAFT, DIA. 1.375

3233364

$6.46

15

RING, RETAINING, SHAFT, DIA. 1.375

3233364

$6.46

16

RING RETAINING, IRR 7200-118

3233699

$7.27

17

RING, RETAINING BASIC, EXTERNAL, .787 SHAFT

3234067

$7.94

18

RING,RETAINING BASIC,INTERNAL 2.047

3234269

$9.52

19

RING,RETAINING BASIC,EXTERNAL 0.428

3234090

$10.32

19

RING,RETAINING BASIC,EXTERNAL 0.428

3234090

$10.32

20

RING, RETAINING, BASIC EXTERNAL DIA 0.84

3234336

$5.56

21

WASHER THRUST, 1.270 X 0.793 X 0.065

3233176

$9.52

22

SHIM, 1.700 X 1.385

3234271

$24.27

23

SHIM, 1.180 OD X 0.995 ID

3234272

$36.41

24

SHIM, 2.040 OD X 1.63 ID

3234273

$13.75

25

WASHER, THRUST 1.300 X 0.995 X 0.065

3234248

$9.52

25

WASHER, THRUST 1.300 X 0.995 X 0.065

3234248

$9.52

26

BEARING, NEEDLE SPLIT CAGE 22 X 26 X 10

3233009

$39.68

27

BEARING-BALL,6307 C3,35X80X21

3233018

$27.78

27

BEARING-BALL,6307 C3,35X80X21

3233018

$27.78

28

BEARING, BALL, 6205 C3 25X52X15

3233019

$31.75

29

BEARING, NEEDLE 25 X 29 X 10

3233103

$31.75

29

BEARING, NEEDLE 25 X 29 X 10

3233103

$31.75

30

BEARING-BALL 6010 C3 50 X 80 X 10

3233268

$51.59

30

BEARING-BALL 6010 C3 50 X 80 X 10

3233268

$51.59

31

BEARING-BALL 6007 C3 35 X 62 X 14

3233265

$39.68

32

BEARING,BALL 6207 C3 35X72X17

3234065

$47.62

33

BEARING, BALL 6203 17 X 40 X 12

3234274

$27.78

33

BEARING, BALL 6203 17 X 40 X 12

3234274

$27.78

34

BEARING, BALL 62/32

3236118

$37.99

35

SPRING, TORSION

3233431

$24.27

36

SPRING,COMPRESSION, .92 O.D. X 2.000

3234078

$24.27

36

SPRING,COMPRESSION, .92 O.D. X 2.000

3234078

$24.27

37

SPRING, COMPRESSION, 0.46 I.D. X 0.73

3234089

$28.32

37

SPRING, COMPRESSION, 0.46 I.D. X 0.73

3234089

$28.32

38

SPRING, COMPRESSION 0.36 O.D. X 1.125

3234578

$13.75

39

TUBE, SNORKEL MACHINED

3234278

$101.17

40

COVER, SECTOR GEARS, MACHINED

3234188

$113.32

41

CASE, RH, PDS PEREGRINE MACH

3236245

$709.99

42

DRUM, SHIFT MACH

3234360

$182.13

43

Plate, Park, 12 Face

3233915

$40.46

44

GEAR, SECTOR, 16T

3233839

$36.41

45

GEAR-SECTOR,31T

3233832

$36.41

46

Pawl, Detent

3233829

$36.41

47

Star, Detent

3233909

$28.32

48

GEAR OUTPUT 91T, HRC

3234062

$267.13

49

GEAR, 13T SNORKEL,

3234262

$409.99

50

PINION, CENTER DRIVE, 13T

3234263

$532.52

51

SHAFT, REVERSE, 26T

3234280

$263.08

52

SHAFT, INPUT - 43T/15T

3236761

$304.99

53

SHOE, CHAIN TENSIONER

3233433

$32.37

54

CAM, CHAIN, TENSIONER

3233434

$13.75

55

BELLCRANK, .510 HOLE, 92 ~

3234584

$28.32

56

SHAFT, SHIFT

3233831

$60.70

57

SPROCKET, 19T, 1.00"

3234060

$242.84

58

COLLAR-SHIFT

3234073

$31.75

59

RAIL, SHIFT SHAFT

3234079

$28.32

60

FORK, SHIFT

3234077

$182.13

60

FORK, SHIFT

3234077

$182.13

61

TUBE, VENT 90 -1/4 INCH HOSE

3234230

$10.51

62

SPROCKET, 38T, 6 FACE

3234290

$153.79

63

GEAR, 33T, 6 FACE

3234291

$174.03

64

ENGAGEMENT DOG, 6-FACE L/P

3234257

$153.79

65

DOG, ENGAGEMENT, 6 FACE

3234258

$97.13

66

GEAR, HELICAL 44T

3236033

$186.65

67

SUB-ASSY, SHAFT, 59T FINAL OUTPUT 1.00" WITH BEARING

3235604

$303.99

68

SUBASSEMBLY, LH COVER, APACHE

3236576

$609.99

69

COVER, BEARING, CENTER DRIVE

3234063

$32.37

70

BRACKET, WIRE HARNESS

3235350

$8.89

70

BRACKET, WIRE HARNESS

3235350

$8.89

71

O-RING, -014 VITON

3233828

$6.87

72

DEFLECTOR, OIL

3234061

$28.32

73

Disc, Lockout

3235243

$9.52

74

CHAIN, SILENT, 17 WIDE X 1.0 X 86p

3234057

$279.27

75

SILENT CHAIN, .25P X 0.4 W X 50L

3234264

$118.74

76

SWITCH, ROTARY , 2 PIN RESISTIVE

7661999

$117.37

77

SENSOR-SPEED,TRANS

4013908

$109.27

78

PLUG, 3/4-16, 41775 INTERNAL HEX

3233794

$15.37

79

SEAL, TRIPLE LIP VITON 25 X 80 X 10

3234113

$36.41

80

SEAL, TRIPLE LIP, NITRILE 1.969 X 2.750 X .315

3234300

$32.37

80

SEAL, TRIPLE LIP, NITRILE 1.969 X 2.750 X .315

3234300

$32.37

81

SEAL, TRIPLE LIP 32 X 49 X 8 VITON

3236141

$60.70

82

O-RING, -012 VITON

3233836

$6.87

83

O-RING, -113 VITON

3233840

$11.32
