- SPORTSMAN 570 UTILITY (R02) - A25SEK57A4
DRIVE TRAIN, FRONT GEARCASE - A25SEK57A4 (102288)

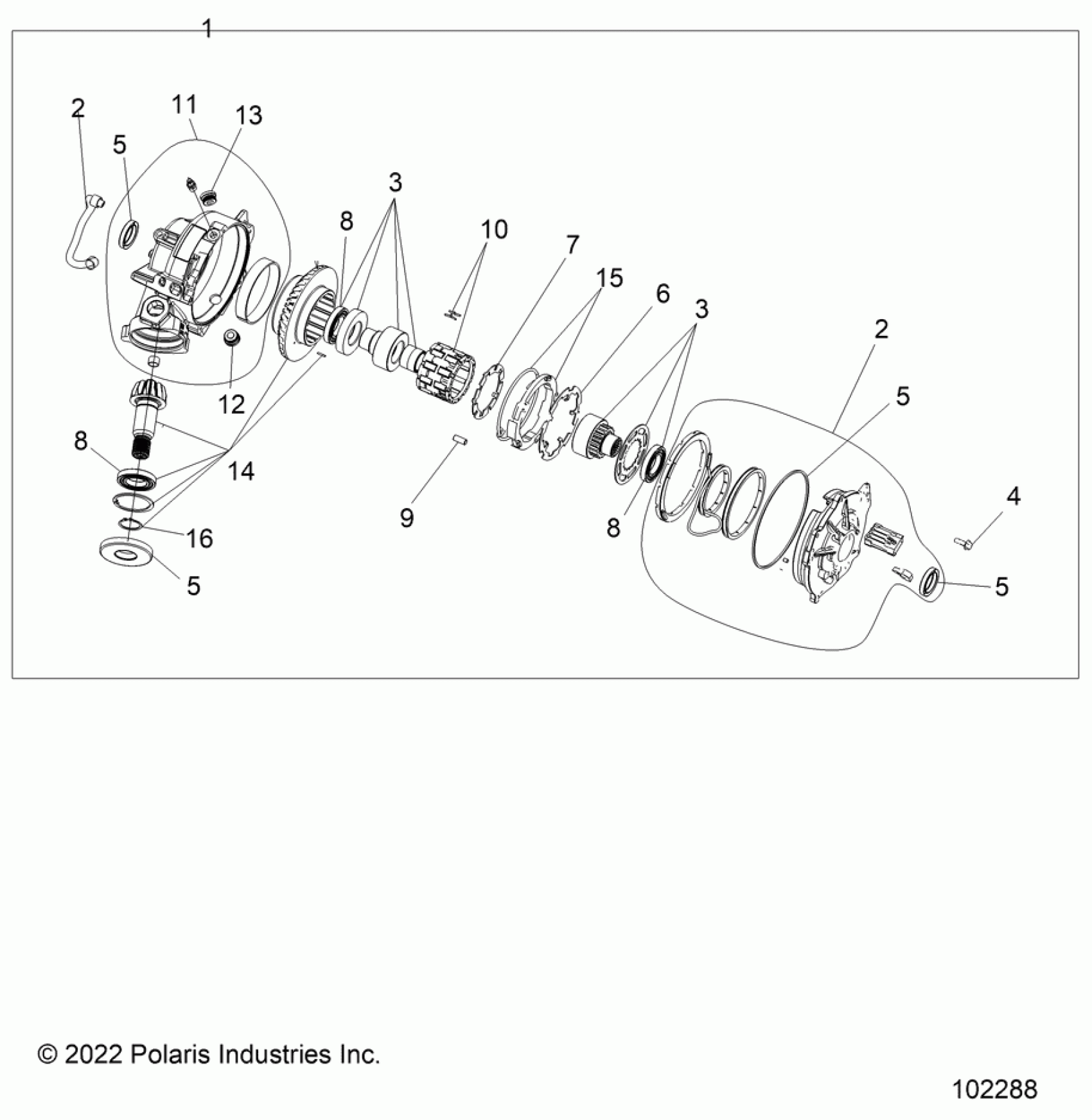

Polaris SPORTSMAN 570 UTILITY (R02) - A25SEK57A4 DRIVE TRAIN, FRONT GEARCASE - A25SEK57A4 (102288) Diagram
#
Description
Price
1
ASM., GEARCASE, FRONT, 12 POCKET [INCL. ALL]
1337138
Unavailable
2
ASM., COVER, OUTPUT [INCL. CONNECTOR ASSEMBLY, OUTPUT COVER, PLASTIC CLIP, THRUST BUTTON ASM., 4WD COIL, THRUST PLATE, O-RING, GROMMET, SCREW, OIL SEAL, DOWEL PINS, HEAT SHRINK TUBING]
3236664
$479.69
2
ASM., COVER, OUTPUT [INCL. CONNECTOR ASSEMBLY, OUTPUT COVER, PLASTIC CLIP, THRUST BUTTON ASM., 4WD COIL, THRUST PLATE, O-RING, GROMMET, SCREW, OIL SEAL, DOWEL PINS, HEAT SHRINK TUBING]
3236664
$479.69
3
KIT, OUTPUT HUB [INCL. HUB ASM. FEMALE, HUB ASM. MALE]
3236673
$432.89
3
KIT, OUTPUT HUB [INCL. HUB ASM. FEMALE, HUB ASM. MALE]
3236673
$432.89
4
COVER-FASTENERS [INCL. SCREWS]
3235469
$13.59
5
KIT, SEAL REPAIR [INCL. ALL SEALS]
3236669
$75.99
5
KIT, SEAL REPAIR [INCL. ALL SEALS]
3236669
$75.99
5
KIT, SEAL REPAIR [INCL. ALL SEALS]
3236669
$75.99
5
KIT, SEAL REPAIR [INCL. ALL SEALS]
3236669
$75.99
6
PLATE, 4WD, ARMATURE
3235485
Unavailable
7
ARMATURE PLATE, BACK DRIVE
3235626
$95.99
8
Bearing
3234390
$35.99
8
Bearing
3234390
$35.99
8
Bearing
3234390
$35.99
9
K-CLUTCH ROLLS [INCL. COMPLETE SET OF ROLLERS]
3235624
$153.41
10
ASM-ROLL CAGE [INCL. CAGE AND COMPLETE SET OF CLIPS]
3235625
$163.99
11
ASM., GEARCASE [INCL. GEARCASE, BUSHING, GARLOCK BEARING, FILL PLUG, VENT TUBE, OIL SEAL]
3236678
$444.39
12
ASM., DRAIN PLUG, MAGNETIC
3234412
$39.99
13
PLUG, OIL FILL
3234414
Unavailable
14
ASM-GEAR HOUSING & PINION GEAR [INCL RETAINING RING]
3239540
$865.19
15
KIT-TORSION,SPRING AND RETAINER
3235712
$35.99
16
RING, RETAINING, EXTERNAL
-------
Unavailable
