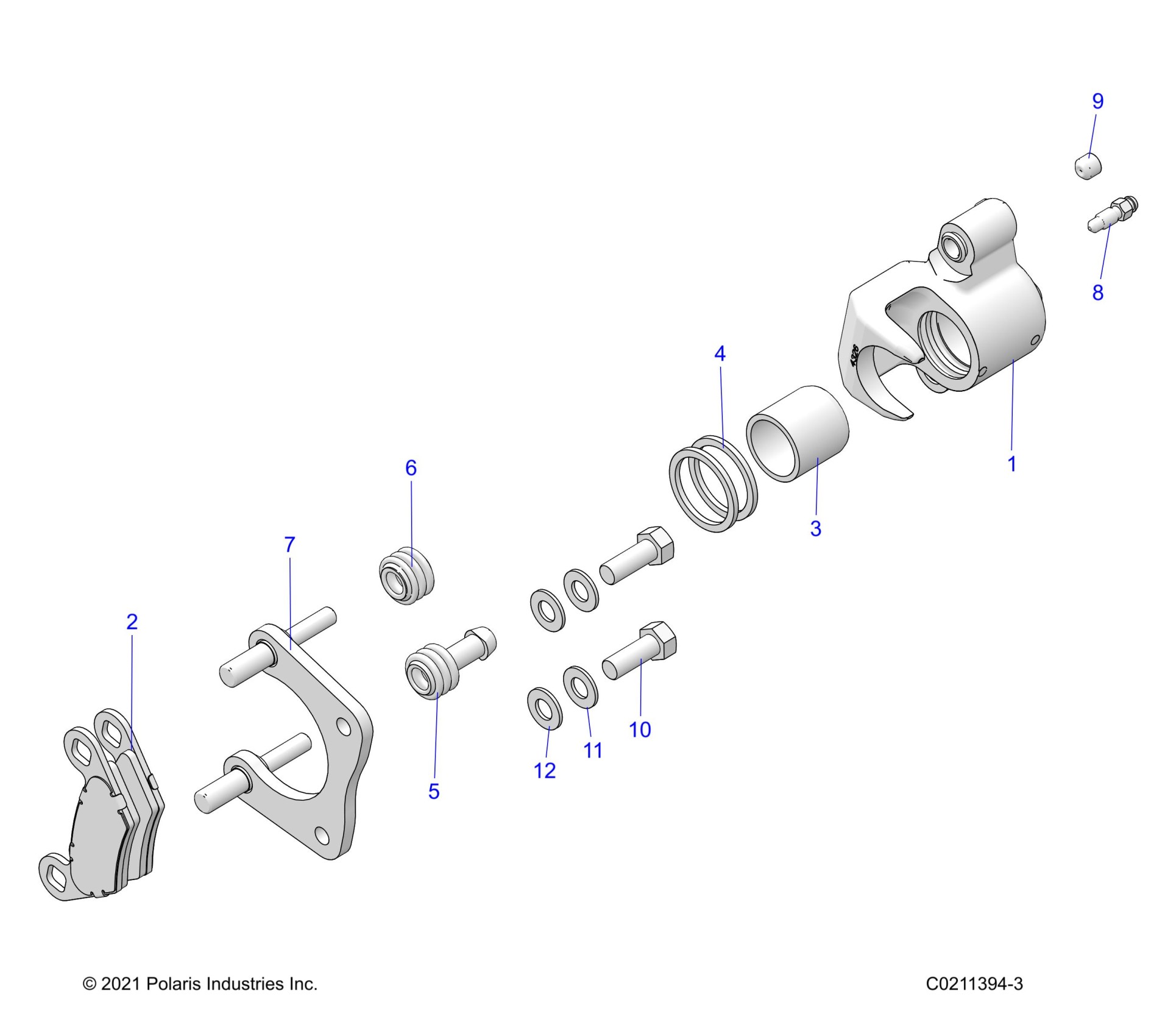

Polaris SPORTSMAN 570 UTILITY (R02) - A25SEK57A4 BRAKES, REAR CALIPER - A25SEK57A4 (C0211394-3) Diagram

#

Description

Price

1

ASM-CALIPER,1.25" 2MM OFFSET [INCL.1-10]

1914114

$259.99

2

KIT, BRAKE PAD, HIGH PERFORMANCE [INCL. 2 PADS]

2205606

$47.99

3

PISTON-CALIPER,1.25

5132405

$31.99

4

SEAL-CALIPER,INNER,1.25"

5411596

$3.99

5

BOOT-PIN BUSHING

5412505

$3.19

6

BOOT-PIN SEAL

5412506

$3.19

7

ASM-CALIPER MOUNT,RR,DIC

1911416

$39.99

8

SCR-M7X1.0,BLEEDER,OLIVE D

7081343

$5.59

9

SCR-M10X1.0X8,SOC SET-OD

7518863

$9.59

10

BOLT(10) [CALIPER MOUNTING]

7512457

$3.99

11

WASHER-3/8 SPRING-LOCK-MED-Y [CALIPER MOUNTING]

7552603

$1.49

12

WASHER-FL.390X.750X.065-Y [CALIPER MOUNTING]

7556188

$3.19
