Description

Price

1

ASM-TRANSMISSION,SL P190X [INCL. ALL]

1334636

$3,625.59

2

MAGNETIC PLUG, 3/4-16 INTERNAL HEX

3234529

Unavailable

3

SCREW, TAPPING TORX, PH 11902 X.50

3233749

$5.59

4

SCREW, TORX TRUSS HD 43834 X 0.75

3234086

$5.59

4

SCREW, TORX TRUSS HD 43834 X 0.75

3234086

$5.59

5

SCREW, TAPPING HEX, WASHER HD 5/16-18 X 1.25

3234114

$7.19

6

SCREW, TAPPING HEX, WASHER HD 1/4-20 X 0.75

3234247

$5.59

6

SCREW, TAPPING HEX, WASHER HD 1/4-20 X 0.75

3234247

$5.59

6

SCREW, TAPPING HEX, WASHER HD 1/4-20 X 0.75

3234247

$5.59

7

NUT, LOCK, HEX FLANGE NYLON 5/16-24

3233961

$2.79

8

WASHER, 1.250 X 0.876 X 0.05

3233855

$10.39

9

WASHER-CUP

3234091

$9.59

9

WASHER-CUP

3234091

$9.59

10

PIN, TENSIONER

3233432

$7.19

11

PIN, DOWEL 5/16 X 1.0

3234244

$7.19

11

PIN, DOWEL 5/16 X 1.0

3234244

$7.19

12

RING,RETAINING BASIC,EXTERNAL 0.984

3233106

$5.59

13

RING, RETAINING BASIC EXTERNAL

3233834

$10.39

14

RING, RETAINING BASIC EXT 0.938

3233306

$4.79

14

RING, RETAINING BASIC EXT 0.938

3233306

$4.79

15

RING, RETAINING, SHAFT, DIA. 1.375

3233364

$6.39

15

RING, RETAINING, SHAFT, DIA. 1.375

3233364

$6.39

16

RING RETAINING, IRR 7200-118

3233699

$7.19

17

RING, RETAINING BASIC, EXTERNAL, .787 SHAFT

3234067

$7.99

18

RING,RETAINING BASIC,INTERNAL 2.047

3234269

$9.59

19

RING,RETAINING BASIC,EXTERNAL 0.428

3234090

$10.39

19

RING,RETAINING BASIC,EXTERNAL 0.428

3234090

$10.39

20

RING, RETAINING, BASIC EXTERNAL DIA 0.84

3234336

$5.59

21

WASHER THRUST, 1.270 X 0.793 X 0.065

3233176

$9.59

22

SHIM, 1.700 X 1.385

3234271

$19.99

23

SHIM, 1.180 OD X 0.995 ID

3234272

$31.99

24

SHIM, 2.040 OD X 1.63 ID

3234273

$12.79

25

WASHER, THRUST 1.300 X 0.995 X 0.065

3234248

$9.59

25

WASHER, THRUST 1.300 X 0.995 X 0.065

3234248

$9.59

26

BEARING, NEEDLE SPLIT CAGE 22 X 26 X 10

3233009

$39.99

27

BEARING-BALL,6307 C3,35X80X21

3233018

$27.99

27

BEARING-BALL,6307 C3,35X80X21

3233018

$27.99

28

BEARING, BALL, 6205 C3 25X52X15

3233019

$31.99

29

BEARING, NEEDLE 25 X 29 X 10

3233103

$31.99

29

BEARING, NEEDLE 25 X 29 X 10

3233103

$31.99

30

BEARING-BALL 6010 C3 50 X 80 X 10

3233268

$51.99

30

BEARING-BALL 6010 C3 50 X 80 X 10

3233268

$51.99

31

BEARING-BALL 6007 C3 35 X 62 X 14

3233265

$39.99

32

BEARING,BALL 6207 C3 35X72X17

3234065

$47.99

33

BEARING, BALL 6203 17 X 40 X 12

3234274

$27.99

33

BEARING, BALL 6203 17 X 40 X 12

3234274

$27.99

34

BEARING, BALL 62/32

3236118

$31.99

35

SPRING, TORSION

3233431

$23.99

36

SPRING,COMPRESSION, .92 O.D. X 2.000

3234078

$19.99

36

SPRING,COMPRESSION, .92 O.D. X 2.000

3234078

$19.99

37

SPRING, COMPRESSION, 0.46 I.D. X 0.73

3234089

$23.99

37

SPRING, COMPRESSION, 0.46 I.D. X 0.73

3234089

$23.99

38

SPRING, COMPRESSION 0.36 O.D. X 1.125

3234578

$12.79

39

TUBE, SNORKEL MACHINED

3234278

$95.99

40

COVER, SECTOR GEARS, MACHINED

3234188

$107.99

41

CASE, RH, PDS PEREGRINE MACH

3236245

$593.99

42

DRUM, SHIFT MACH

3234360

$171.99

43

Plate, Park, 12 Face

3233915

$39.99

44

GEAR, SECTOR, 16T

3233839

$31.99

45

GEAR-SECTOR,31T

3233832

$31.99

46

Pawl, Detent

3233829

$31.99

47

Star, Detent

3233909

$23.99

48

GEAR OUTPUT 91T, HRC

3234062

$251.99

49

GEAR, 13T SNORKEL,

3234262

$307.99

50

PINION, CENTER DRIVE, 13T

3234263

$405.59

51

SHAFT, REVERSE, 26T

3234280

$259.99

52

SHAFT, INPUT - 43T/15T

3236761

$243.99

53

SHOE, CHAIN TENSIONER

3233433

$27.99

54

CAM, CHAIN, TENSIONER

3233434

$12.79

55

BELLCRANK, .510 HOLE, 92 ~

3234584

$23.99

56

SHAFT, SHIFT

3233831

$59.99

57

SPROCKET, 19T, 1.00"

3234060

$239.99

58

COLLAR-SHIFT

3234073

$31.99

59

RAIL, SHIFT SHAFT

3234079

Unavailable

60

FORK, SHIFT

3234077

$171.99

60

FORK, SHIFT

3234077

$171.99

61

TUBE, VENT 90 -1/4 INCH HOSE

3234230

$9.59

62

SPROCKET, 38T, 6 FACE

3234290

$151.99

63

GEAR, 33T, 6 FACE

3234291

$163.99

64

ENGAGEMENT DOG, 6-FACE L/P

3234257

$143.99

65

DOG, ENGAGEMENT, 6 FACE

3234258

$91.99

66

GEAR, HELICAL 44T

3236033

$159.99

67

SUB-ASSY, SHAFT, 59T FINAL OUTPUT 1.00" WITH BEARING

3235604

$255.99

68

SUBASSEMBLY, APACHE SLINGER SEALS, LH COVER

3236737

$505.99

69

COVER, BEARING, CENTER DRIVE

3234063

$27.99

70

BRACKET, WIRE HARNESS

3235350

$8.79

70

BRACKET, WIRE HARNESS

3235350

$8.79

71

PLUG, 3/4-16, 41775 INTERNAL HEX

3233794

$15.19

72

DEFLECTOR, OIL

3234061

$23.99

73

Disc, Lockout

3235243

$9.59

74

CHAIN, SILENT, 17 WIDE X 1.0 X 86p

3234057

$263.99

75

SILENT CHAIN, .25P X 0.4 W X 50L

3234264

$95.99

76

SWITCH, ROTARY , 2 PIN RESISTIVE

7661999

$111.99

77

SENSOR-SPEED,TRANS

4013908

Unavailable

78

O-RING, -014 VITON

3233828

$6.79

79

SEAL, TRIPLE LIP VITON 25 X 80 X 10

3234113

$35.99

80

SEAL-SHAFT,OUTPUT

3235830

$55.99

80

SEAL-SHAFT,OUTPUT

3235830

$55.99

81

SEAL, TRIPLE LIP 32 X 49 X 8 VITON

3236141

$59.99

82

O-RING, -012 VITON

3233836

$6.87

83

O-RING, -113 VITON

3233840

$11.19

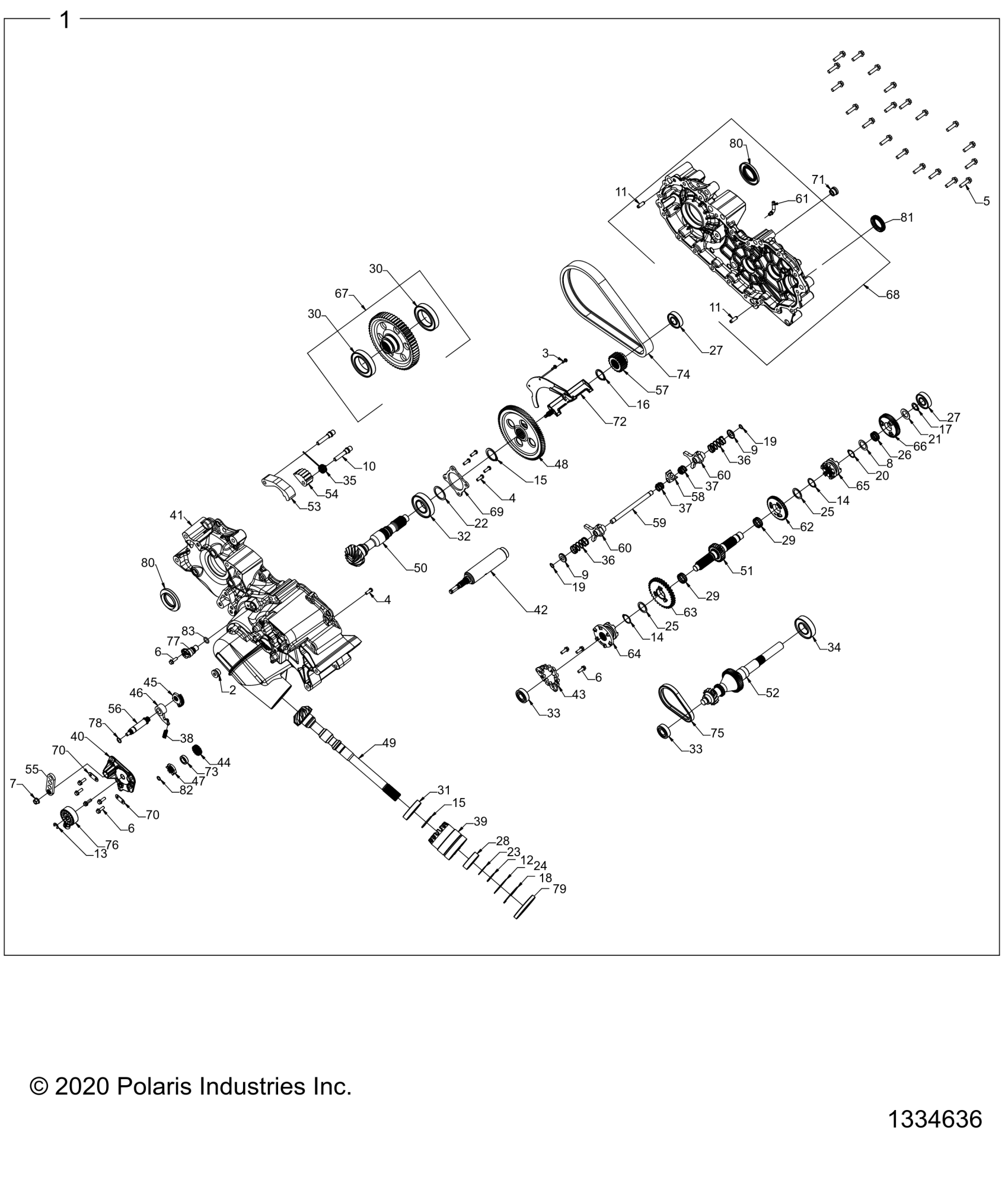

Polaris SPORTSMAN 570 UTILITY (R01) - A24SEK57A4 DRIVE TRAIN, MAIN GEARCASE - A24SEK57A4 (1334636) Diagram
