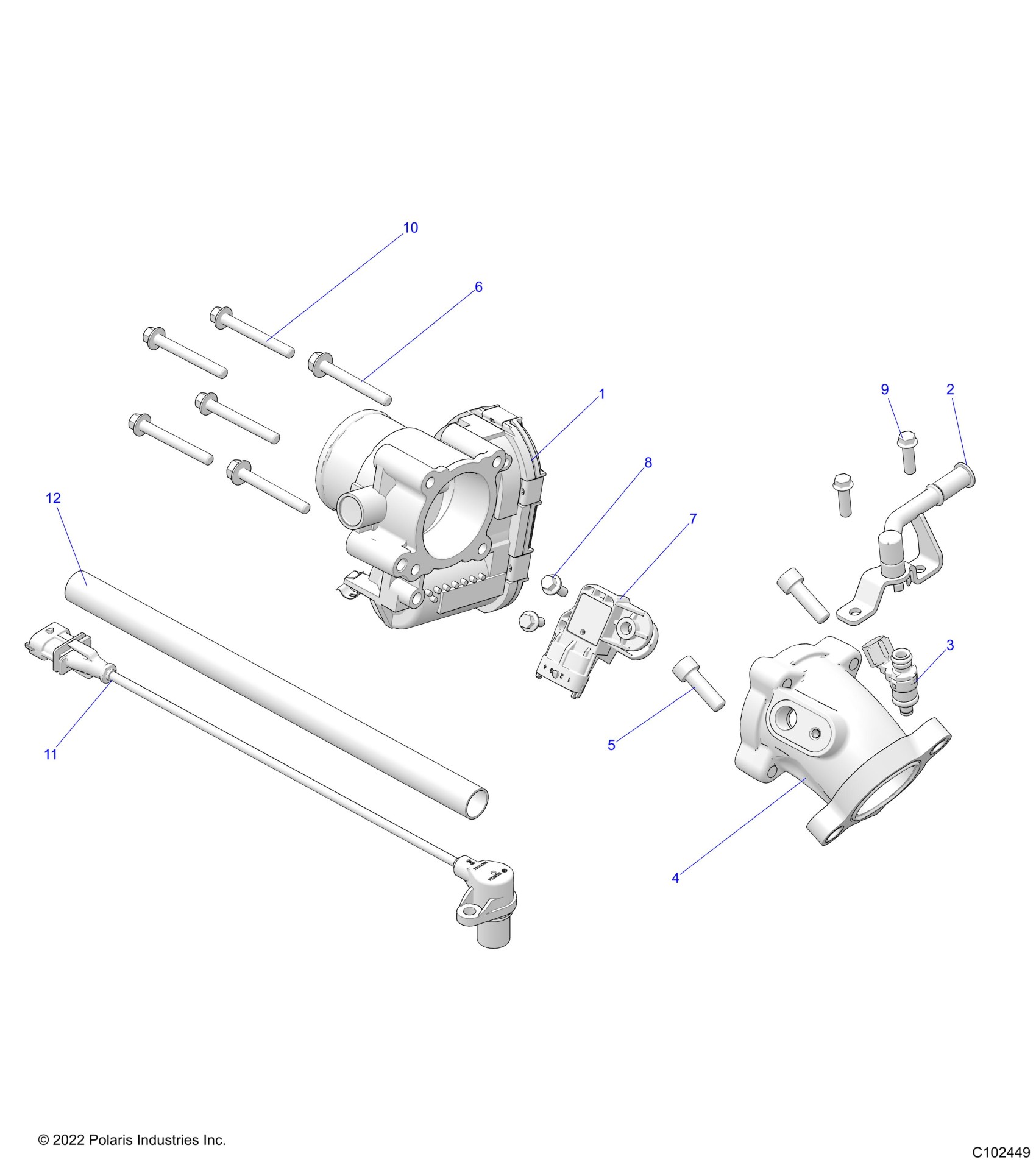

Polaris SPORTSMAN 570 UTILITY LE (R01) - A23SEK57AD ENGINE, THROTTLE BODY and FUEL RAIL - A23SEK57AD (C102449) Diagram

#

Description

Price

1

THROTTLE-ETC,46MM

1204455

$495.29

2

RAIL-FUEL,1CYL

2521795

$159.99

3

INJ-FUEL,SE [INCL. O-RINGS]

2521796

$91.99

3

O-RING BOSCH,EV-SE,UPPER [USED WITH 2521796]

5416412

$7.19

3

O-RING BOSCH,EV-SE,LOWER [USED WITH 2521796]

5416413

$7.19

4

ADAPTER, THROTTLE BODY

5415006

$139.99

5

SCREW-SH-M8X1.25X25 8.8 ZPC

7519859

$5.59

6

SCR-M6X1.0X50.0 HX/FL-Y/D

7520078

$3.99

7

SENSOR-TMAP DSS3-TF

2411528

$93.08

8

SCR-HXFL-M5X0.8X14 18-8

7516603

$10.39

9

SCREW-HXFL-M6X1.0X20 8.8 ZY3

7518576

$3.19

10

SCR-M6X1.0X50.0 HX/FL-Y/D

7517932

$3.99

11

ASM-SENSOR CRANK POSITION [INCL. 12&13]

2414984

$91.99

11

SENSOR, CRANK POSITION �

2411719

$101.17

12

SHIELD-HEAT,WRAP,CPS

5814858

$19.99
