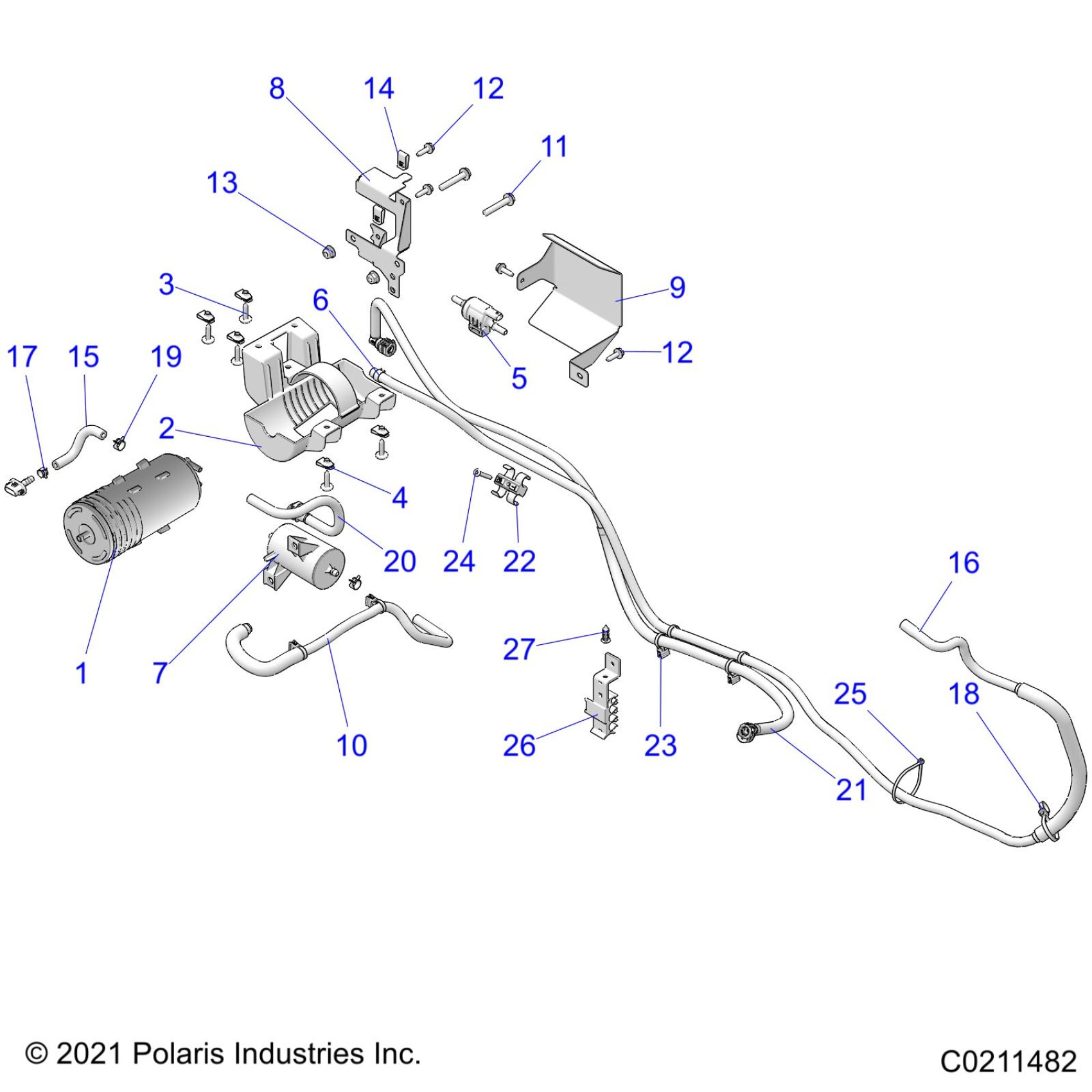

Polaris SPORTSMAN 570 SP TRAIL PACKAGE (R02) - A21SHY57AL/BL/Z57AD/BD BODY, FUEL TANK EVAP SYSTEM - A21SHZ57BD/BL (C0211482) Diagram

CANISTER-ACTIVATED CARBON,BFL

2521893

$87.99

BRKT-MNT CANISTER,BLK

5457122-070

$43.99

SCR-TXTH-M6X1.0X25 ZFB

7519650

$3.99

CLIP-"U",M6.0X1.0

7547366

$5.99

VALVE-PURGE

2521964

$59.99

HOSE CLAMP, RED

7080003

$1.49

FILTER-CANISTER VENT

2521750

$55.99

BRKT-MNT,PRG VLV,FILTER,E COAT

5268313-329

$51.99

COVER,PRG VLV,FILTER,E COAT

5268631-329

$95.99

HOSE-AIR,FRESH,FUEL VENT

5417156

$67.99

SCREW, HXFL-5/16-18X0.75 GR5 ZY3

7518341

$4.79

SCR-M6X1.0X20,HXHD,FLG,TDFM,BK

7518529

$1.49

SCR-M6X1.0X20,HXHD,FLG,TDFM,BK

7518529

$1.49

NUT-5/16-18 HX FLG NL-Y

7542343

$4.79

NUT-M6-1.0, U-TYPE (2.5-3.8)

7547674

$1.49

FUEL LINE-10 CENTIMETERS

8450040-10

Unavailable

ASM-LINE,TANK TO CANISTER,1UP [INCL. SLEEVE]

2522188

$137.93

CLAMP-HOSE,(7/16)

7080236

$1.59

CABLE-TIE,7-46MM,DUAL-LOOP

7081033

$3.99

CLAMP-HOSE, 17/32, GREEN

7081432

$3.99

ASM-LINE,CANISTER TO PURGE

2522190

$63.99

ASM-LINE,PURGE TO TB [INCL. SLEEVE]

2522191

$117.03

T-CLIP, T15

7081689

$7.19

CLIP-EDGE,1-3MM,6-45MM,SERT.

7081808

$5.59

SCR-10-24X1.25TFM PN TRX TRI-Y

7512025

$4.79

CABLE-TIE,DIA12-50MM,WTHR-RES.

7080138

$2.41

CLIP-ROUTING,MIDFRAME

5457074

$3.99

CLIP-XMAS TREE, .945 X .228

7670101

$2.39
