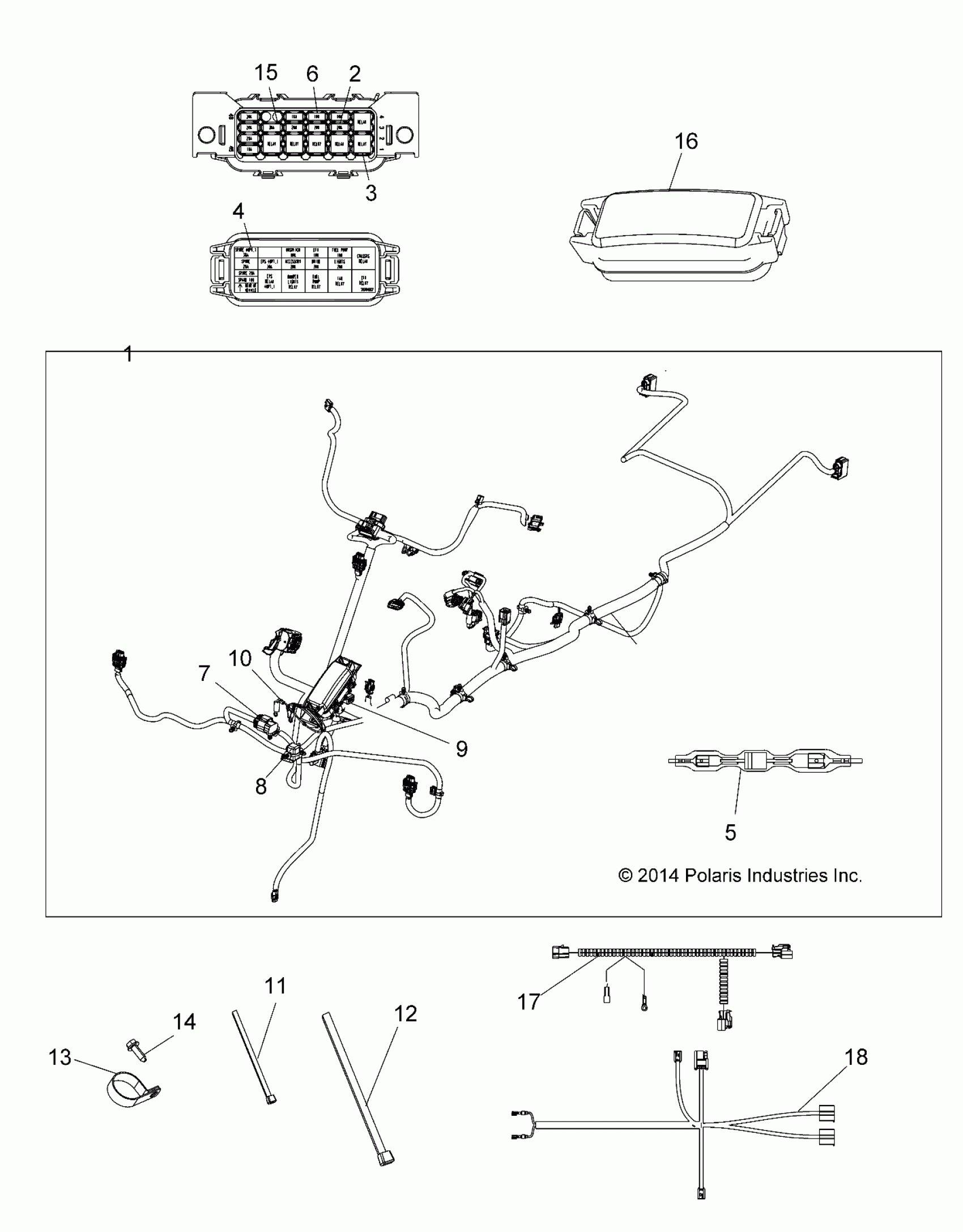

Polaris SPORTSMAN 570 SP (R03) - A19SHD57B9/E57BJ/E57BW ELECTRICAL, MAIN WIRE HARNESS - A19SHD57B9/E57BJ/E57BW (49ATVHARNESS15570SP) Diagram

#

Description
Price

1

HARNESS, MAIN [TO 1/1/2019]

2412742

$916.74

1

HARNESS-MAIN,SPMN 570 SP [FROM 1/1/2019]

2414897

$1,399.99

2

FUSE-PARK,20 AMP

2434017

$8.08

3

RELAY-SPST,12V,20A,EPXY,HFA

4016819

$36.41

4

LABEL, FUSE BOX

7180889

Unavailable

5

DIODE, 6 AMP

2411035

$56.65

6

FUSE-IGNITION,10 AMP

2434016

$5.65

7

COVER-DIAGNOSTIC,W/CLIP

4012170

$8.89

8

BREAKER-CIRCUIT,15AMP,SEALED

2411086

$54.99

9

DIODE, 6 AMP

2410000

$40.46

10

KIT, FUSE LINK, .8MM

2202607

$39.68

11

CABLE-TIE,DIA12-50MM,WTHR-RES.

7080138

$2.41

12

CABLE-TIE,10-102MM,WEATH.-RES.

7080761

$2.41

13

CLAMP-HOSE,1.312 VINYL COATED

7080851

Unavailable

14

SCREW

7512232

$1.19

15

FUSE-MAIN,30 AMP

2434015

$8.87

16

COVER, FUSEBOX, 48WAY

4015011

$60.70

16

SEAL, FUSE CENTER

5415598

$8.73

17

HARNESS, ACCESSORY, WORKLIGHTS [B9]

2413072

$194.99

18

HARNESS, WIRE, ATV, POD, WARMERS [B9]

2413004

$114.99
