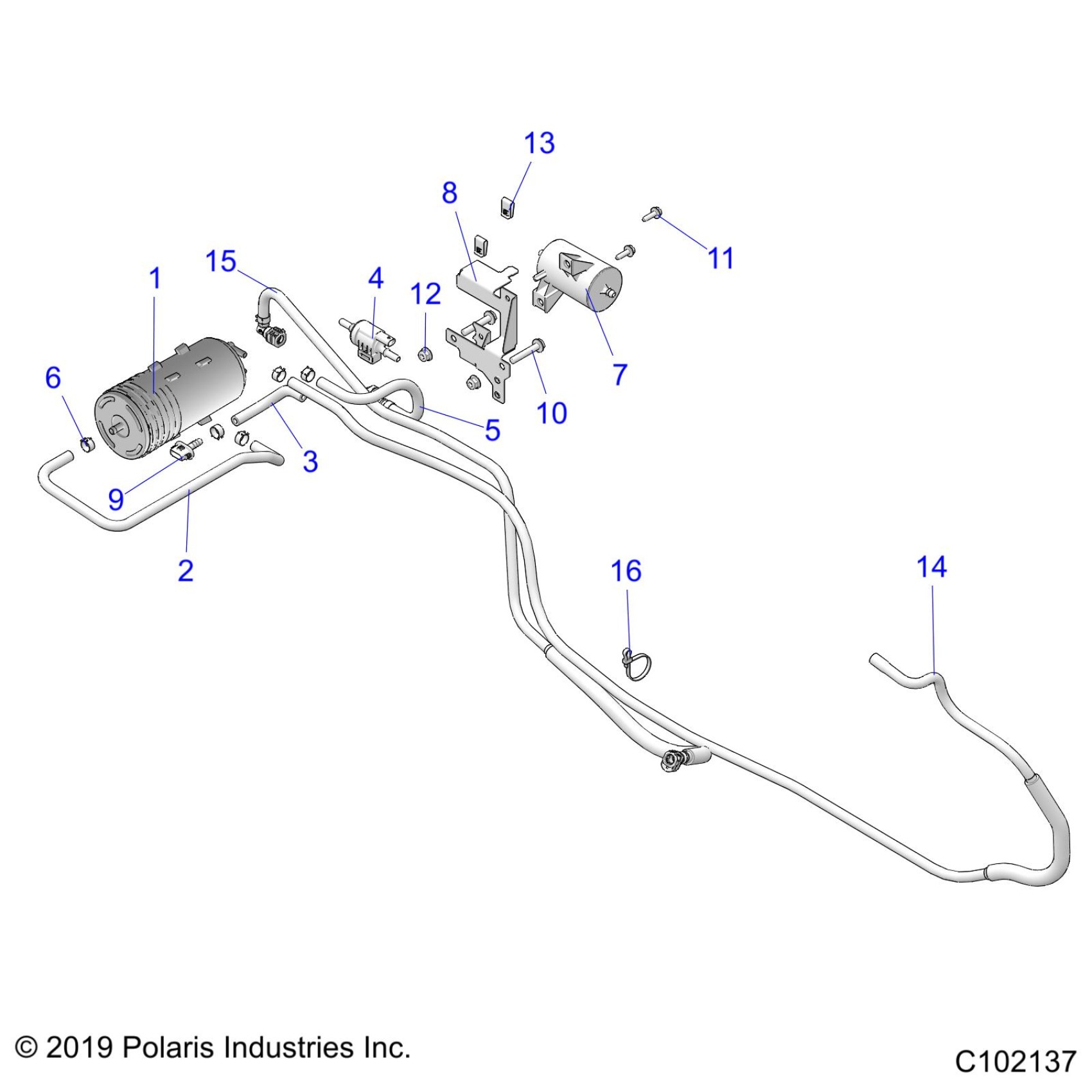

Polaris SPORTSMAN 570 (R06) - A20SEA57A1/A4/A7/A9/B1/B4/B7/B9 BODY, FUEL TANK EVAP - A20SEA57B1/B4/B7/B9 (C102137) Diagram

COVER,PRG VLV,FILTER,E COAT [NOT ILLUSTRATED]

5268631-329

$95.99

CANISTER-ACTIVATED CARBON,BFL

2521893

$87.99

HOSE-AIR,FRESH,FUEL VENT

5417156

$67.99

FUEL LINE-10 CENTIMETERS

8450040-10

Unavailable

VALVE-PURGE

2521964

$59.99

ASM-LINE,CANISTER TO PURGE

2522190

$63.99

HOSE CLAMP, RED

7080003

$1.49

FILTER-CANISTER VENT

2521750

$55.99

BRKT-MNT,PRG VLV,FILTER,E COAT

5268313-329

$51.99

FITTING-VENT LINE

5453465

$5.59

SCR-HXFL-5/16-18X1.75 GR5 ZY3

7518341

$4.79

SCR-M6X1.0X20,HXHD,FLG,TDFM,BK

7518529

$1.49

NUT-5/16-18 HX FLG NL-Y

7542343

$4.79

NUT-M6-1.0,U-TYPE (2.5-3.8)

7547674

$1.49

ASM-LINE,TANK TO CANISTER,1UP [INCL SLEEVE]

2522188

$137.93

ASM-LINE,PURGE TO TB [INCL SLEEVE]

2522191

$117.03

CABLE-TIE,7-46MM,DUAL-LOOP

7081033

$3.99
