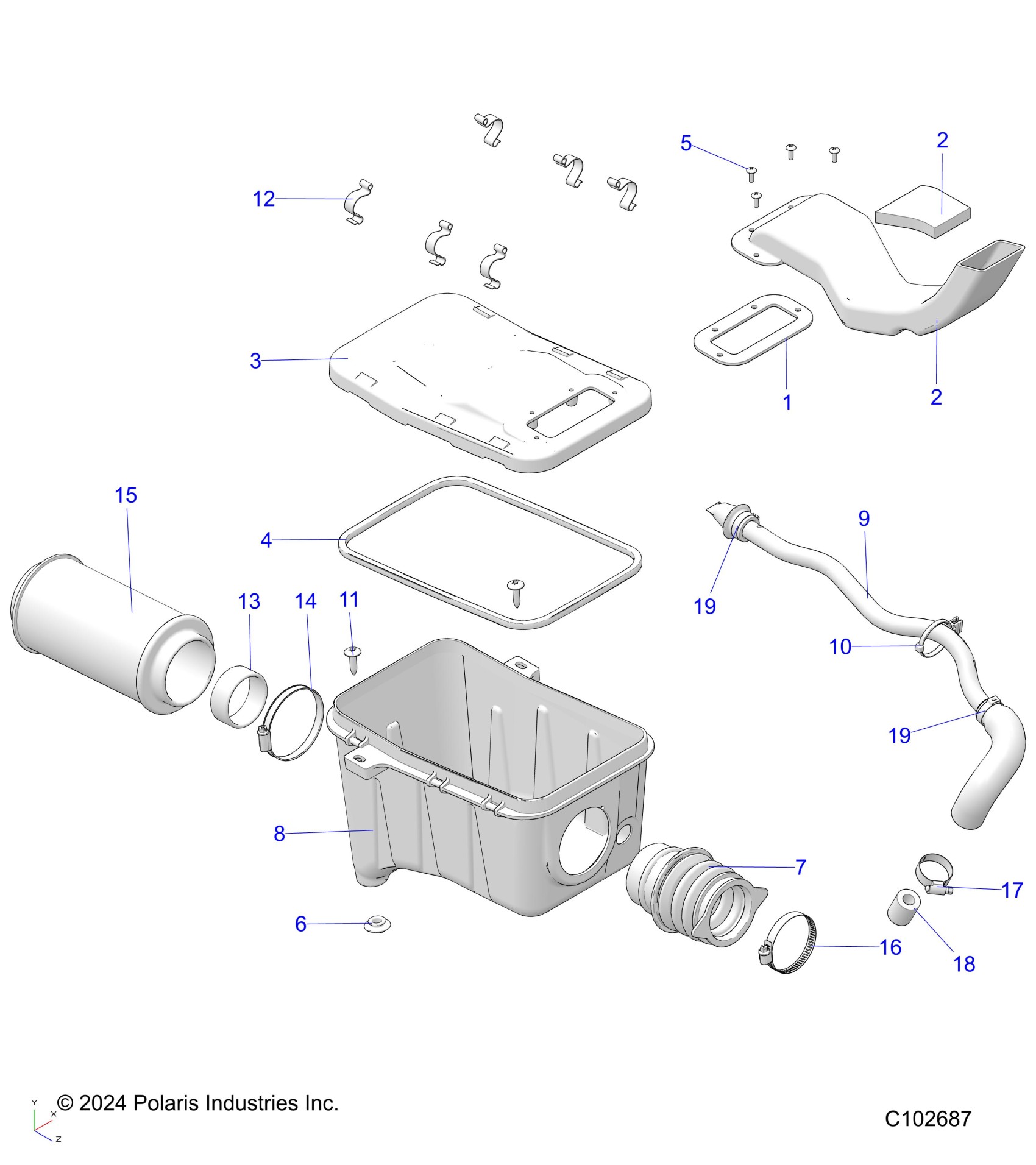

Polaris SPORTSMAN 570 (R03) - A25SEA57A1/A3/A6/A9 ENGINE, AIR INTAKE SYSTEM - A25SEA57A1/A3/A6/A9 (C102687) Diagram

#

Description
Price

1

Gasket, Intake

5411422

$6.63

2

DUCT, AIR INLET

5450386

$35.99

2

FOAM,INTAKE,STICK ON

5815089

$6.39

2

DUCT, AIR INLET

5450386

$35.99

2

FOAM,INTAKE,STICK ON

5815089

$6.39

3

COVER-AIR BOX

5459622

$39.99

4

SEAL, AIRBOX COVER

5813949

$27.99

5

SCR-#8X1/2,TR/PH,TYPE B-Y

7517317

$3.19

6

PLUG-COMPARTMENT

5418084

$3.73

7

BOOT, INTAKE

5414638

$23.99

8

BOX, AIR INTAKE

5450387

$127.99

9

ASM-CRANK BREATHER,ATV [INCL. HOSE, VALVE, & CLAMP]

2522621

$59.99

10

CLIP-EDGE, 1-3mm THICKNESS

7082402

$7.19

11

SCR-TXTH-M6X1.0X25 ZFB

7519650

$3.99

12

CLIP-AIR BOX

5242044

$9.59

13

Sleeve, Carburetor, Inner

5433847

$13.59

14

CLAMP-BAND,NARROW 60-80MM

7080707

$3.19

15

FILTER-AIR INTAKE,HD

7083107

$27.99

15

FILTER-HD AIR INTAKE, 208MM HD OPTION

7083114

$47.99

16

CLAMP, BAND, NARROW

7080413

$3.19

17

CLAMP-HOSE,13/16"-1 1/2"

7081174

$7.19

18

BUSHING-BREATHER HOSE

5418611

$7.19

19

CLAMP-HOSE,OETIKER,25.4-28.6

-------

Unavailable

19

CLAMP-HOSE,OETIKER,25.4-28.6

-------

Unavailable
