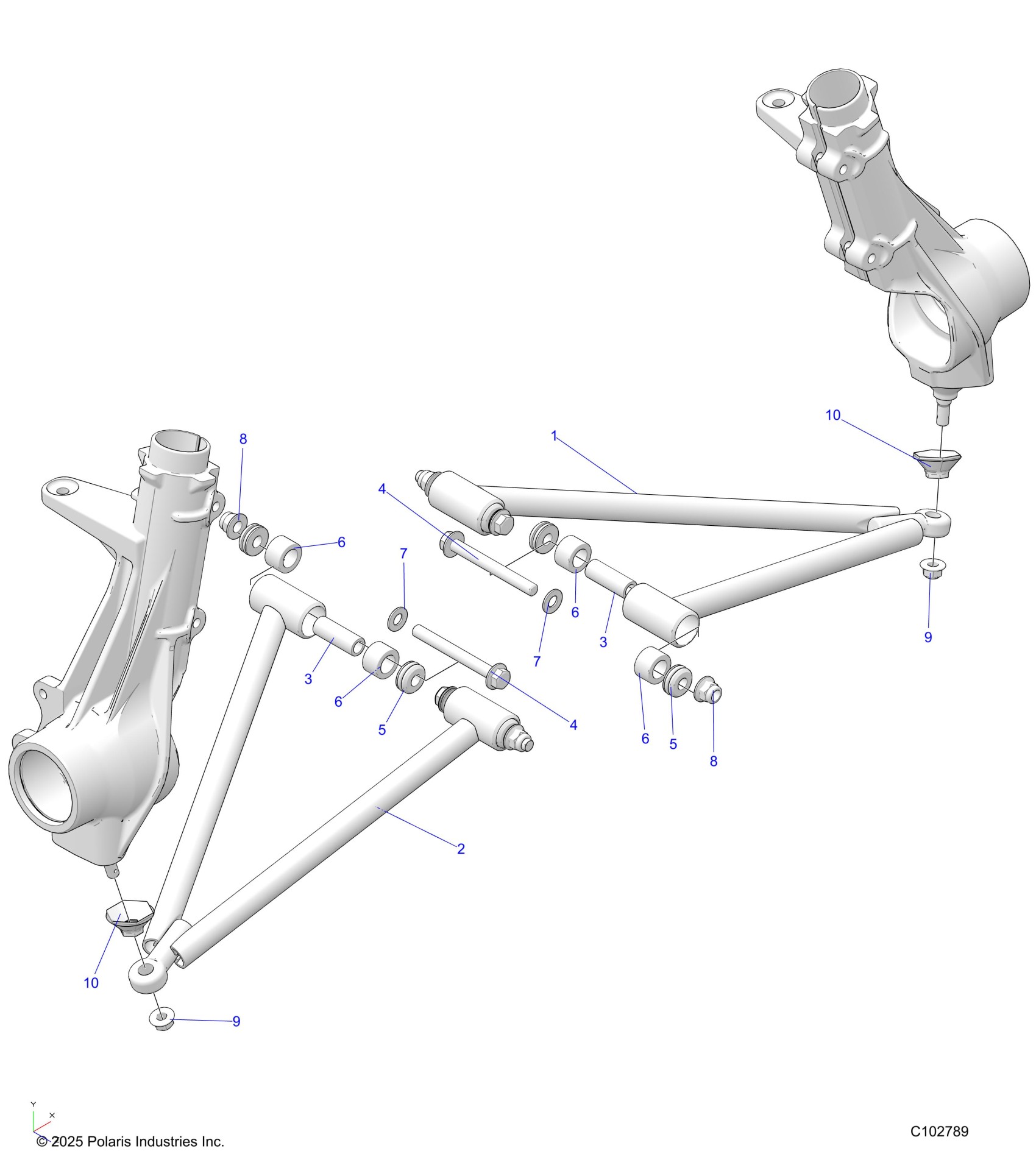

Polaris SPORTSMAN 570 (R01) - A26SEA57A1/A4/A6 SUSPENSION, A-ARM and STRUT MOUNTING - A26SEA57A1/A4/A6 (C102789) Diagram

WELD-A-FRAME,LH,M.BLK

1544005-458

$95.99

WELD-A-FRAME,RH,M.BLK

1544006-458

$95.99

SHAFT-PIVOT,SHORT,M10,43MM

5141292

$4.39

SHAFT-PIVOT,SHORT,M10,43MM

5141292

$4.39

SCR-HXFL-M10X1.5X90 10.9 ZPB

7521333-90

$1.59

SCR-HXFL-M10X1.5X90 10.9 ZPB

7521333-90

$1.59

ASM-PIVOT CAP, SEALED, M10

1543611

$5.59

ASM-PIVOT CAP, SEALED, M10

1543611

$5.59

BUSHING-STANDARD, SUSP, M10

5452233

$2.39

BUSHING-STANDARD, SUSP, M10

5452233

$2.39

BUSHING-STANDARD, SUSP, M10

5452233

$2.39

BUSHING-STANDARD, SUSP, M10

5452233

$2.39

WSHR-FLAT-M10X2.0 ZTB

7557235

$3.19

WSHR-FLAT-M10X2.0 ZTB

7557235

$3.19

NUT-HXFL-M10X1.5 8 ZTB NYL

7548029

$2.39

NUT-HXFL-M10X1.5 8 ZTB NYL

7548029

$2.39

NUT-3/8-24 FLG LOC

7547263

$3.19

NUT-3/8-24 FLG LOC

7547263

$3.19

BOOT-BALLJOINT,GREASELESS,STRT

5418091

$4.79

BOOT-BALLJOINT,GREASELESS,STRT

5418091

$4.79
