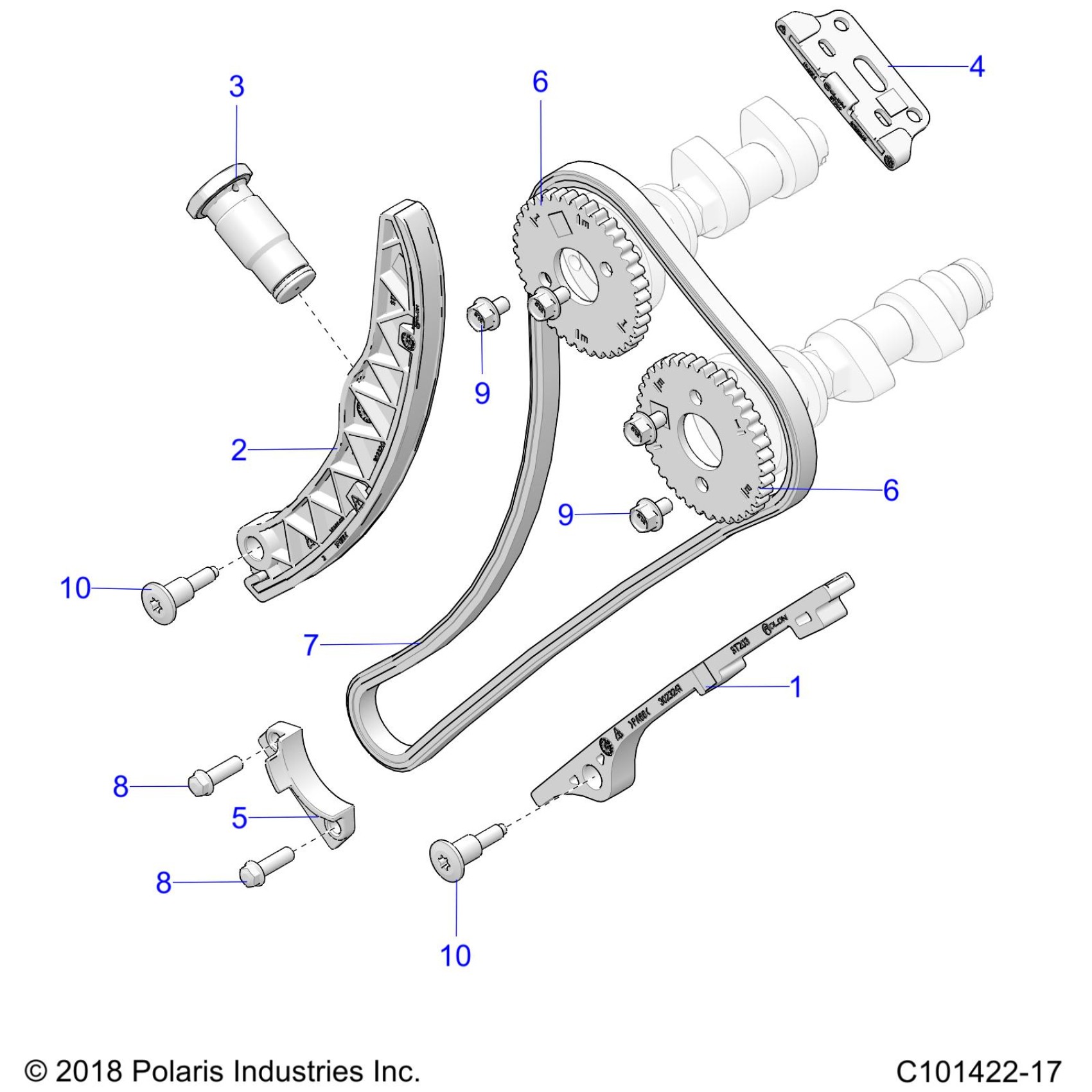

Polaris SPORTSMAN 570 PS EBS RC LE (R03) - A24SHR57AM ENGINE, CAM CHAIN and SPROCKET - A24SHR57AM (C101422-17) Diagram

#

Description

Price

1

GUIDE-CAM DRIVE,FIXED

3023241

$12.79

2

GUIDE-CAM DRIVE,TENSIONED

3023240

$23.99

3

TENSIONER-CAMCHAIN,HYD [INCL. TENSIONER GASKET]

3023501

$83.99

3

GASKET-TENSIONER

5814753

$7.19

4

GUIDE-CAM DRIVE,UPPER

3024019

$23.99

5

GUIDE-CAM DRIVE,LOWER

3022711

$9.59

6

SPROCKET-CAM,DRIVEN,DOHC

3222265

$35.99

6

SPROCKET-CAM,DRIVEN,DOHC

3222265

$35.99

7

CHAIN-CAMSHAFT 144L

3222264

$75.99

8

SCREW-HXFL-M6X1.0X20 8.8 ZY3

7518576

$3.19

8

SCREW-HXFL-M6X1.0X20 8.8 ZY3

7518576

$3.19

9

SCREW-HXFL,M6X1.0X10 10.9

7519164

$3.99

9

SCREW-HXFL,M6X1.0X10 10.9

7519164

$3.99

10

SCREW-TXPH-M6X1.0X14 8.8 A2K SHB

7519165

$13.59

10

SCREW-TXPH-M6X1.0X14 8.8 A2K SHB

7519165

$13.59
