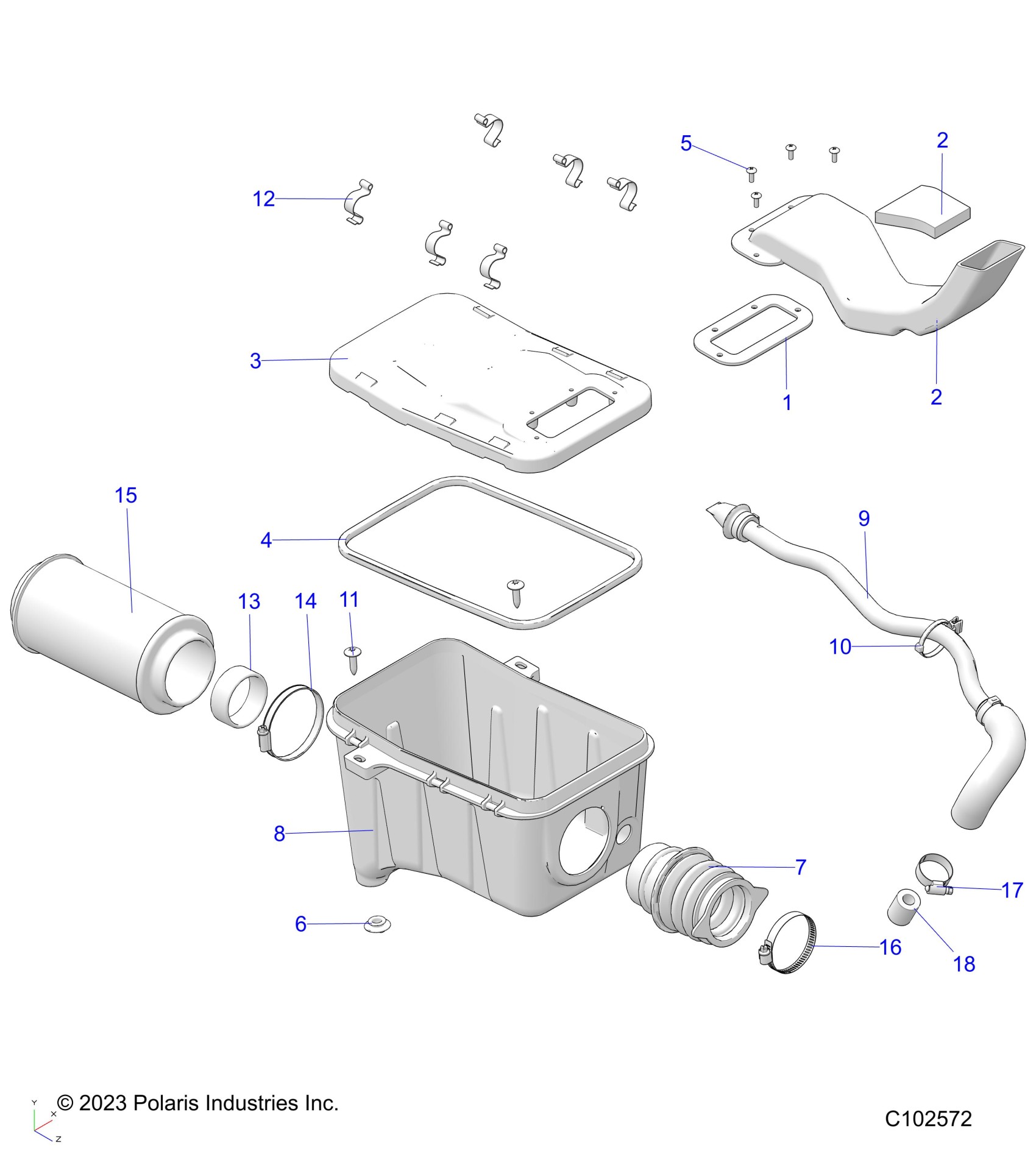

Polaris SPORTSMAN 570 PS EBS RC LE (R03) - A24SHR57AM ENGINE, AIR INTAKE SYSTEM - A24SHR57AM (C102572) Diagram

Description

Price

Gasket, Intake

5411422

$6.59

DUCT, AIR INLET

5450386

$40.46

FOAM,INTAKE,STICK ON

5815089

$7.27

DUCT, AIR INLET

5450386

$40.46

FOAM,INTAKE,STICK ON

5815089

$7.27

COVER, AIR BOX [TO 12/4/2023]

5450388

$44.51

COVER-AIR BOX [FRM 12/4/2023]

5459622

$44.51

SEAL, AIRBOX COVER

5813949

$28.32

SCR-#8X1/2,TR/PH,TYPE B-Y

7517317

$3.17

PLUG-COMPARTMENT

5418084

$3.79

BOOT, ENGINE, INTAKE

5415034

$97.76

BOX, AIR INTAKE

5450387

$137.60

ASM-CRANK BREATHER,ATV [INCL. HOSE, VALVE, & OETIKER CLAMPS]

2522621

$77.44

CLIP-EDGE,1-3MM THICKNESS

7082428

$4.76

SCR-TXTH-M6X1.0X25 ZFB

7519650

$3.97

CLIP-AIR BOX

5242044

$9.52

Sleeve, Carburetor, Inner

5433847

$14.56

CLAMP-BAND,NARROW 60-80MM

7080707

$3.17

FILTER-AIR INTAKE,HD �

7083107

$27.78

FILTER-HD AIR INTAKE, 208MM HD OPTION

7083114

$47.62

CLAMP, HOSE, 2.75" SS

7080446

$11.11

CLAMP-HOSE,13/16"-1 1/2"

7081174

$7.14

BUSHING-BREATHER HOSE

5418611

$7.14
