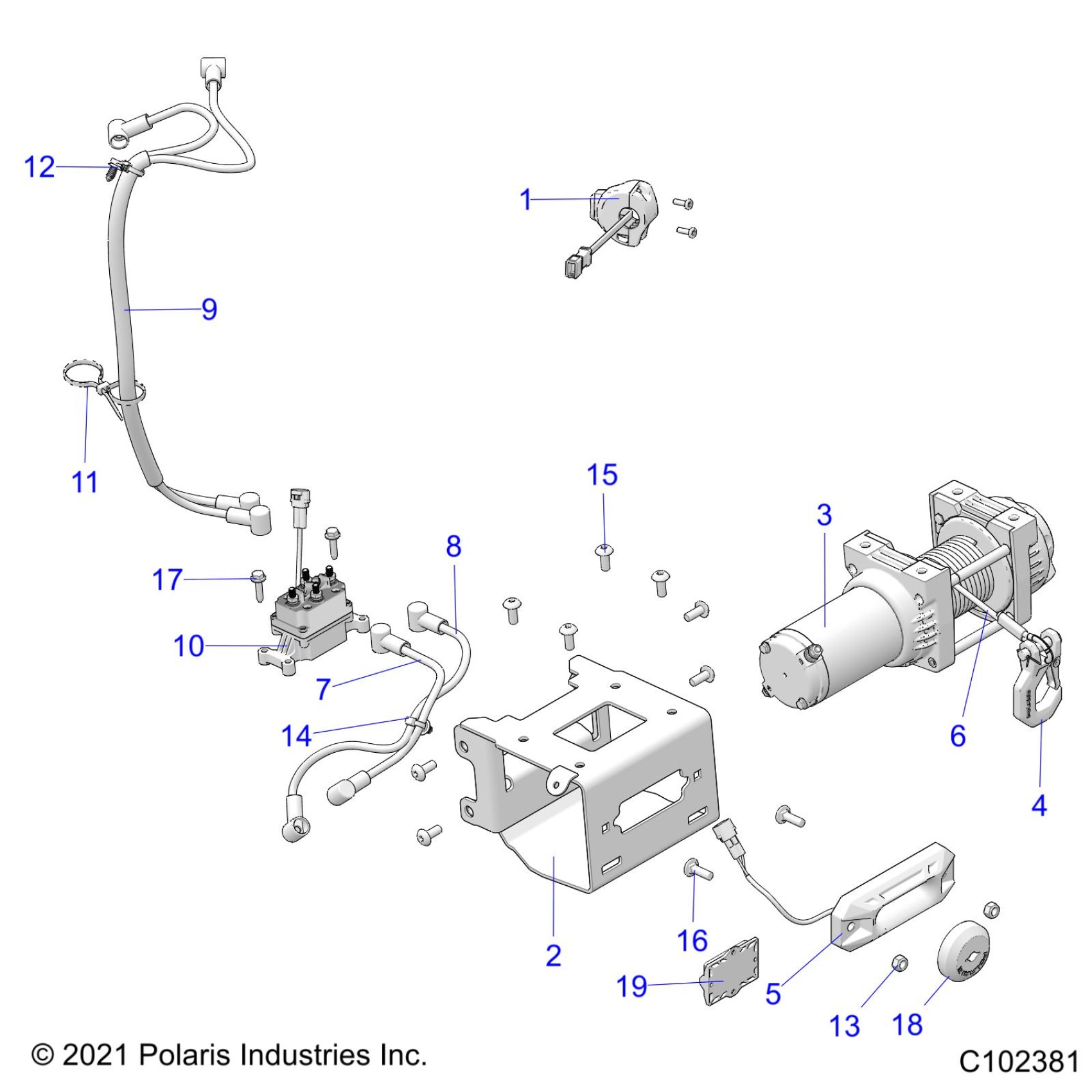

Polaris SPORTSMAN 570 PS EBS RC LE (R03) - A24SHR57AM CHASSIS, WINCH - A24SHR57AM (C102381) Diagram

K-WINCH SWITCH,HBR,EU,ATV [INCL. HOUSING, SWITCH, & SCREWS]

2207175

$64.75

SWITCH-HBR,EU,ATV

4017111

$64.75

SCREW-10X5/8-HI/LO,PN-T25,TRX-M

7518238

$3.97

WELD-BRKT,WINCH MOUNT,SAP

1025981

$111.33

WINCH-POL3500,BT

2206562

$364.99

ASM-WINCH,35SYN,RC,SAP [INCL. 2-10,13-14, QTY 4 OF 15,17]

2638513

$1,049.99

HOOK-LATCH,WINCH,ULT,CMN

5910705

$10.99

ASM-FAIRLEAD,HWS,MACH,ULT,NRW

2637782

$42.74

ROPE-WINCH,SYNTHETIC,50'

2878888

$94.99

CABLE-WINCH,YELLOW 6 GA,300MM

4013468-300

$36.41

CABLE-WINCH,BLUE 6 GA,410MM

4013469-410

$24.27

ASM-HARN,POWER,WINCH,SAP

2415675

$84.99

CONTACTOR-WINCH,POL,LIF,CAP

4015095

$104.49

CABLE-TIE,DIA6-38MM,DUAL-LOOP

7081916

$4.84

CLIP-FIR TREE,12.5MM OFF,90DEG

7082406

$3.17

NUT-NYLOCK M8X1.25-Y

7547144

$3.17

CLIP FIR-TREE,DIA6-33MM

7081496

$4.76

SCR-TXTH-M8X1.25X20 8.8 ZODP30

7519260

$6.35

SCR-RHCAR-M8X1.25X25 8.8 ZOD

7519324

$3.17

SCR-TFHFL-M6X1.0X25,ZOD

7519342

$1.99

STOP-MAGNET,BMPR,V2

5415787

$61.74

CONTROL BOX-HWSE FAIRLEAD NWBX [TO 9/27/2024]

2415867

$15.19

ASM-WINCH AUTOSTOP CNTRL,ATV [FRM 9/27/2024]

2417688

$29.99
