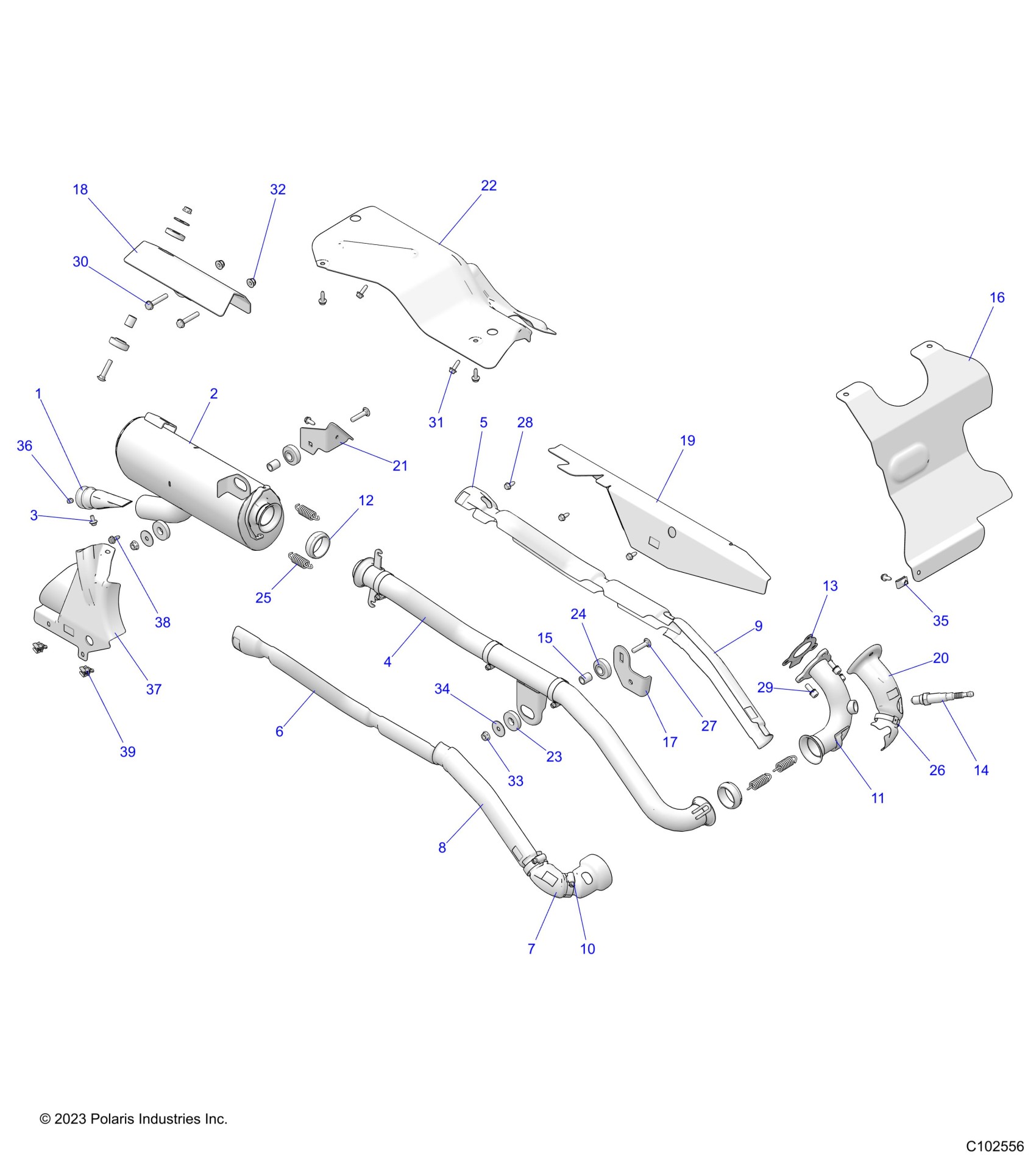

Polaris SPORTSMAN 570 PREMIUM (R02) - A23SEZ57AM/BM ENGINE, EXHAUST - A23SEZ57BM (C102556) Diagram

#

Description
Price

1

WELD-SPARK ARRESTOR,QT [TO 8/15/2023]

1262239

$48.56

1

WELD-SPARK ARRESTOR,1IN [FRM 8/15/2023]

1263571

$48.56

2

WELD-SILENCER,570,CAT,PWDR BLK [TO 8/15/2023]

1263699

$459.99

2

WELD-SILENCER,570,CAT [FRM 8/15/2023]

1263823

$459.99

3

SCREW-HXFL-M6X1.0X12 10.9 ZPC

7517257

$9.52

4

ASM-EXHAUST PIPE,570 EFI,SS

1263315

$719.99

5

SHIELD-HEAT,EXHAUST,REAR

5267238

$87.13

6

SHIELD-HEAT,EXHAUST,REAR

5267239

$87.13

7

SHIELD-HEAT,EXHAUST,MID

5267240

$77.44

8

SHIELD-HEAT,EXHAUST,MID

5267284

$39.99

9

SHIELD-HEAT,EXHAUST MID,INNER

5267368

$39.99

10

CLAMP-HOSE, 2.00-SS

7082359

$13.49

11

WELD-MANIFOLD,570,O2

1263515

$129.51

12

GASKET-DOUBLE SPHERICAL,1.625"

3610312

$9.70

13

SEAL-EXHAUST,MANIFOLD,570

3610360

$11.32

14

SENSOR-LAMBDA,LSF 4.2

4011853

$140.38

15

BUSHING-EXHAUST,15.87 X 21

5144284

$6.35

16

SHIELD-HEAT,FUEL TANK,1UP

5267108

$29.99

17

BRKT-EXHAUST PIPE SUPPORT,BLK

5267243-067

$14.99

18

BRACKET,SILENCER,FRAME

5267285

$44.51

19

SHIELD-HEAT,AIRBOX

5268861

$56.65

20

SHIELD-HEAT,MANIFOLD,570,O2

5269130

$48.56

21

BRKT-EXHAUST MOUNT,BLK

5269883-329

$15.99

22

SHIELD-FENDER

5269956

$76.89

23

WSHR-15.4X38.1X7.9 RUBBER

5414945

$4.76

24

DAMPER-VIBRATION

5414946

$4.84

25

SPRING-EXHAUST

7045211

$8.89

26

CLAMP-45.0DX7W,304SS,OETIKER

7082132

$4.76

27

BOLT-CARR-5/16-18X1 1/2 GR5-Y

7515316

$2.38

28

SCR-1/4-20X5/8,TAP/R-Y

7517386

$1.19

29

SCR-M8X1.25X20,HXSOC-CSSPL-SEM

7517555

$8.73

30

SCREW, HXFL-5/16-18X0.75 GR5 ZY3

7518341

$4.76

31

SCR-M6X1.0X20,HXHD,FLG,TDFM,BK

7518529

$1.19

32

NUT-5/16-18 HX FLG NL-Y

7542343

$4.76

33

NUT-5/16-18,HX,TCHLCK,FLNG,ZNC

7547623

$3.17

34

WASHER-.328X1.25X16GA, FL-Y

7555716

$1.59

35

NUT-CHIMNEY 1/4-20,GR-5

7670096

$1.59

36

NUT-HEX-M6X1.0 8 SPC

7547120

$5.22

37

SHIELD-DEBRIS,FMC, BLK

5459928-070

$15.99

38

BOLT,M6X1.0X15,HXFLG,TAP/T-OD

7518513

$4.76

39

NUT-HXFL-M6X1.0 8 ZB3 NYL

7547453

$3.97
