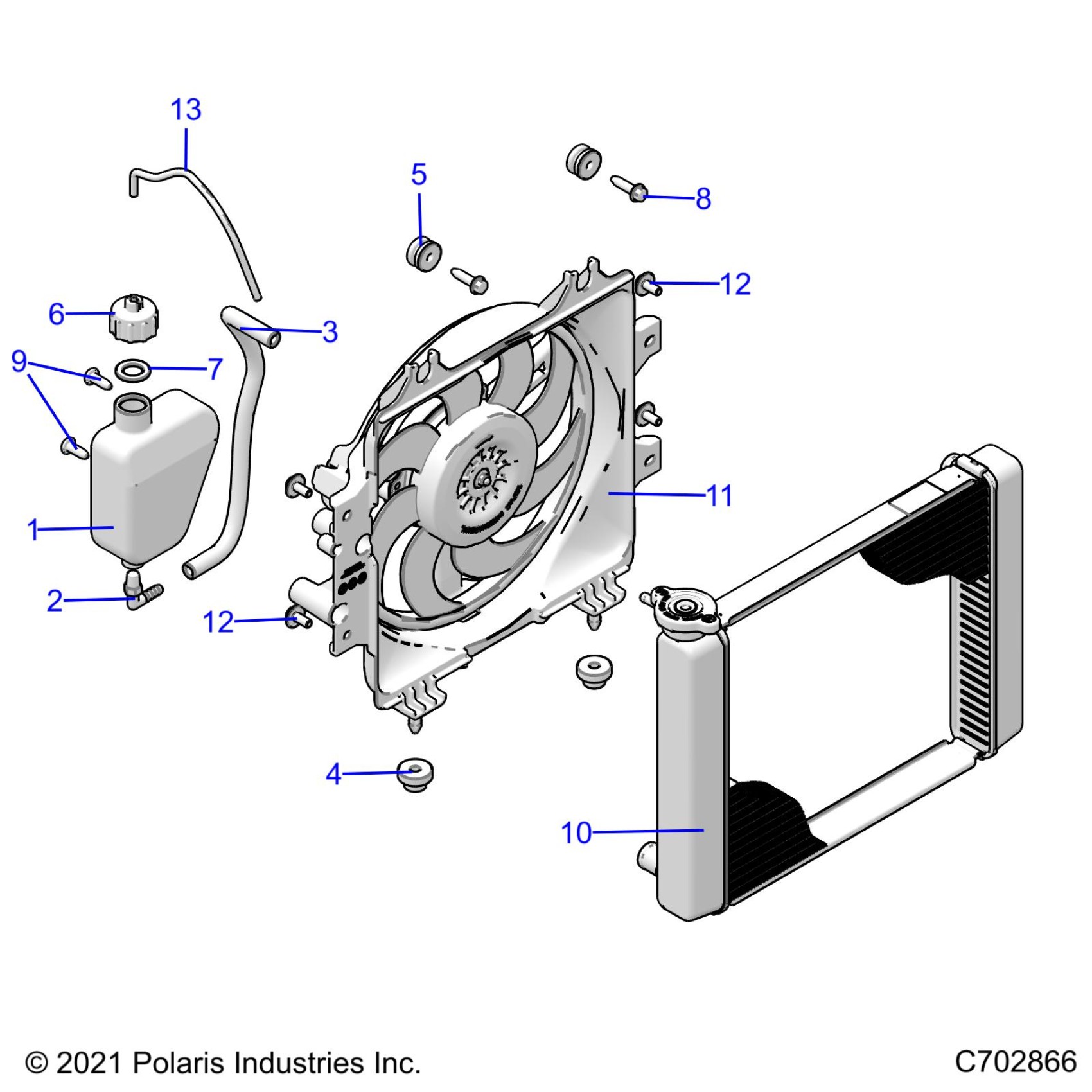

Polaris SPORTSMAN 570 PREMIUM (R02) - A23SEZ57AM/BM ENGINE, COOLING SYSTEM, RADIATOR, FAN & OVERFLOW BOTTLE - A23SEZ57AM/BM (C702866) Diagram

#

Description

Price

1

ASM-SURGE TANK [INCL. 1-3,6,&7]

-------

Unavailable

1

TANK-SURGE

5436936

$75.99

2

FITTING-1/8-27, BARBED, 90 DEG

7052065

$7.19

3

1/4"SAEJ2002,EPDM HOSE,32 CM

8450120-32

Unavailable

4

BUSHING-MOUNT,LOWER RADIATOR

5410584

$5.59

5

ASM-GROMMET & INSERT

5416503

$3.99

6

CAP, OVER FLOW BOTTLE, W/FITTING

5437635

$4.79

7

GASKET-OVERFLOW CAP

5810279

$2.41

8

SCR-1/4-20X1 HX/WH/TAP/R GR5-Y

7515179

$2.39

9

SCREW-#10X3/4-HI/LO-PN-T25,TRX-M

7512026

$1.49

10

ASM-RADIATOR

1244705

$395.99

11

ASM-FAN AND MOTOR,TRIPAC,SGL

2415473

$189.59

12

BOLT, M6X15MM

7519585

$9.59

12

BOLT, M6X15MM

7519585

$9.59

13

VENT LINE,1/8,BULK Substituted by 8360009-600

8360009

Unavailable
