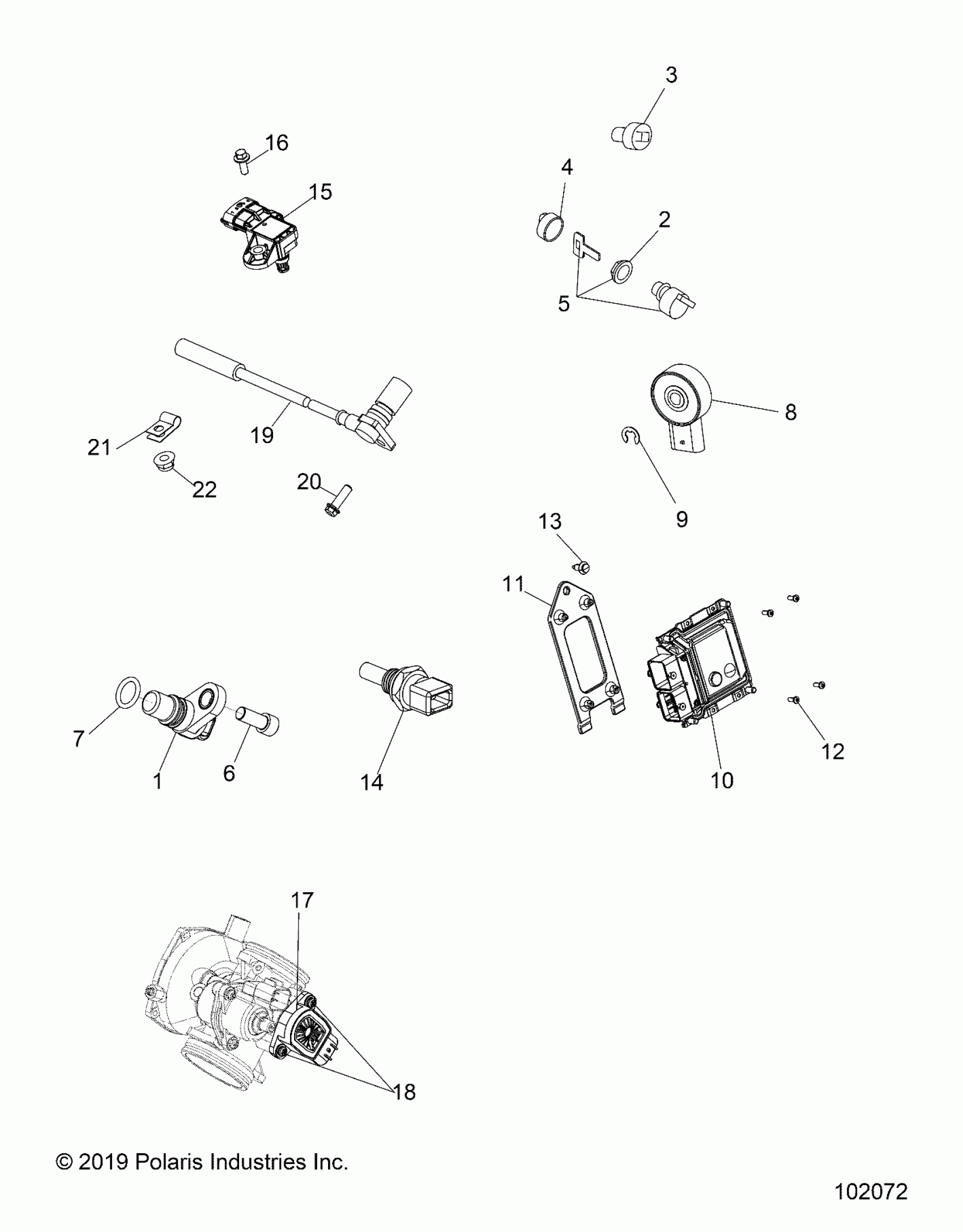

Polaris SPORTSMAN 570 PREMIUM/PREMIUM LE (R05) - A20SHE57AN/AF/BN/BF/Z57AX/BX ELECTRICAL, SWITCHES, SENSORS and ECM - A20SHE57AN/AF/BN/BF/Z57AX/BX (102072) Diagram

#

Description
Price

1

SENSOR-SPEED,TRANS

4013908

Unavailable

2

NUT-IGNITION SWITCH,HOBBS

5433733

$23.99

3

SWITCH-BRK,1/8"-27 NPTF,SEALED [BRAKE PRESSURE][AN/AF/AX]

4110164

Unavailable

3

SWITCH-BRK,1/8"-27 NPTF,SEALED [BRAKE PRESSURE][BN/BF/BX]

4015069

$111.10

4

KEY SWITCH KEY COVER

5433534

$12.35

5

SWITCH, KEY, 3 POSITION, SEALED [INCL. 5,7,KEY]

4015033

Unavailable

6

SCREW

3234247

$5.59

7

O-RING

3234302

$7.19

8

SWITCH, ROTARY, 2 PIN RESISTIVE [GEAR POSITION]

7661999

$111.99

9

RING, RETAINING

3233834

$10.39

10

ECU BASE [AN] [AF] [AX]

4012838

$440.69

10

ECM-HARD,ME17,2CYL,250K [BN] [BF] [BX]

4014125

$694.99

11

MNT-ECM,REAR,BLK

5438708-070

$10.39

12

SCREW

7519091

$3.19

13

Rivet

7661855

$1.49

14

SENSOR-THERMISTER

4010644

$87.13

15

SENSOR-TMAP DSS3-TF

2411528

$93.08

16

BOLT

7516603

$10.39

17

ASM., SENSOR [AN] [AF] [AX]

3131705

$187.99

18

SCREW [AN] [AF] [AX]

3131628

$5.27

19

SENSOR, CRANK POSITION

2411719

$101.17

20

SCREW

7518576

$3.19

21

CLAMP-CABLE

7080367

$2.39

22

NUT-5/16-18,NYLOC,THIN-Y

7542344

$3.99
