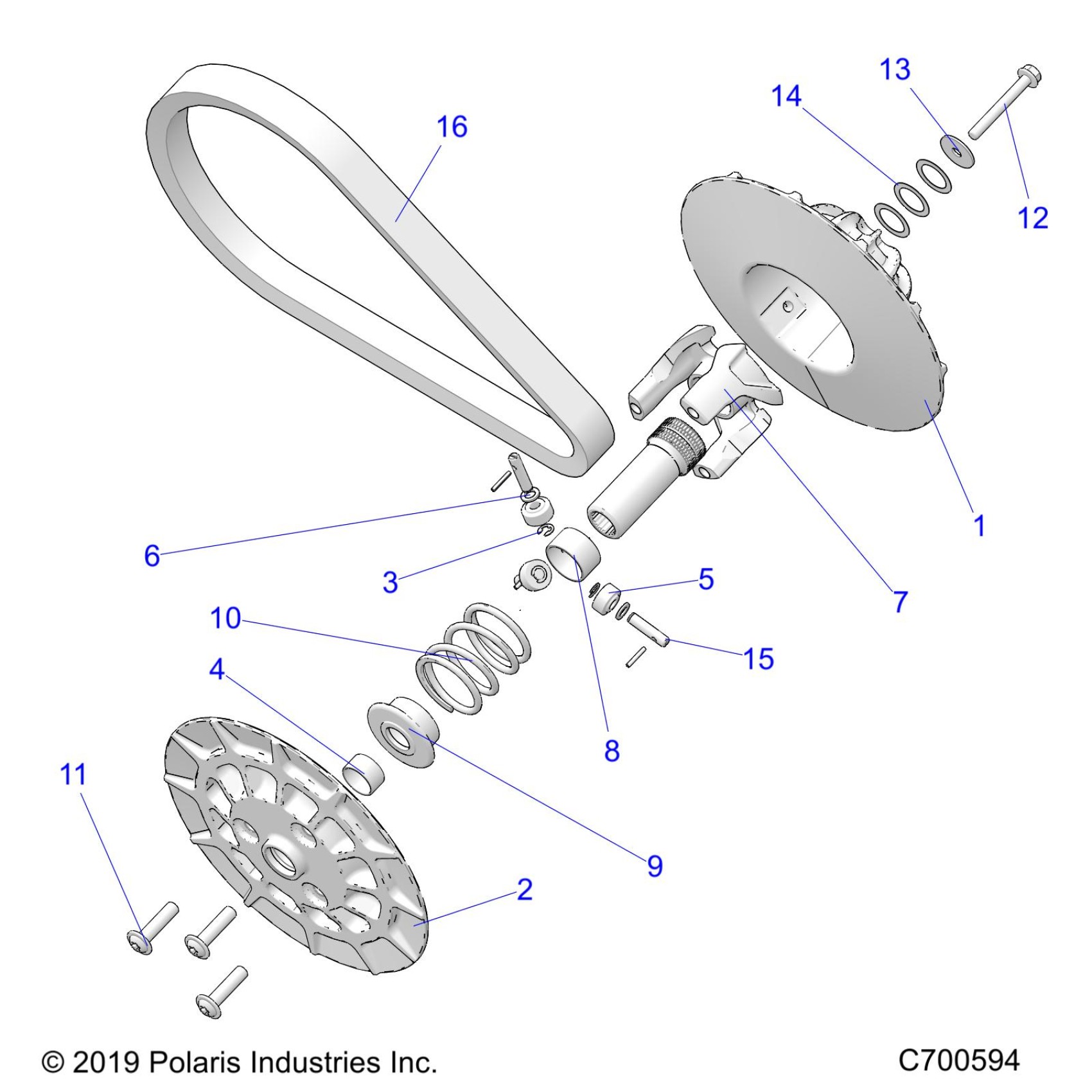

Polaris SPORTSMAN 570 HUNTER PACKAGE (R03) - A21SHD57A9 DRIVE TRAIN, SECONDARY CLUTCH - A21SHD57A9 (C700594) Diagram

ASM-DRIVEN,STATIONARY,P190X [INCL. 3,5,6,15]

1323610

Unavailable

ASM-MOVABLE SHEAVE,P190X,CS [INCL. 4]

1323638

Unavailable

ASM-MOVEABLE,P190X,CS,570 [INCL. 2,7-11]

1323719

$155.99

E-CLIP,M6, DIN 6799

7710466

$3.19

BEARING-MU,25X15

3515176

$23.99

ROLLER-8X22X11.25,PA46 TW341R

5456032

$27.99

WSHR-8.4X14 .0X1.6

7556211

$4.79

ASM-HELIX,P190X,40-56P/70BA

1323720

$171.99

BEARING-DU,32X20

3515085

$31.99

CUP-DRIVEN SPRING,P190X

5633950

$27.99

SPRING-DRIVEN,120-210

7045554

$75.99

SCR-TXFLBH-M10X1.25X40 10.9SPC

7520698

$4.79

SCR-M8X1.25X65-HX/FL-Y,CL 10.9

7519212

$4.79

WSHR-8.4X30. 0X2.0 ZPB

7556219

$6.39

SHIM-RING,23.25X32.25X0.5

7557060

$2.39

PIN-DRIVEN,ROLLER,8MM

5141086

Unavailable

BELT-DRIVE,P190X,10.05

3211229

$79.99
