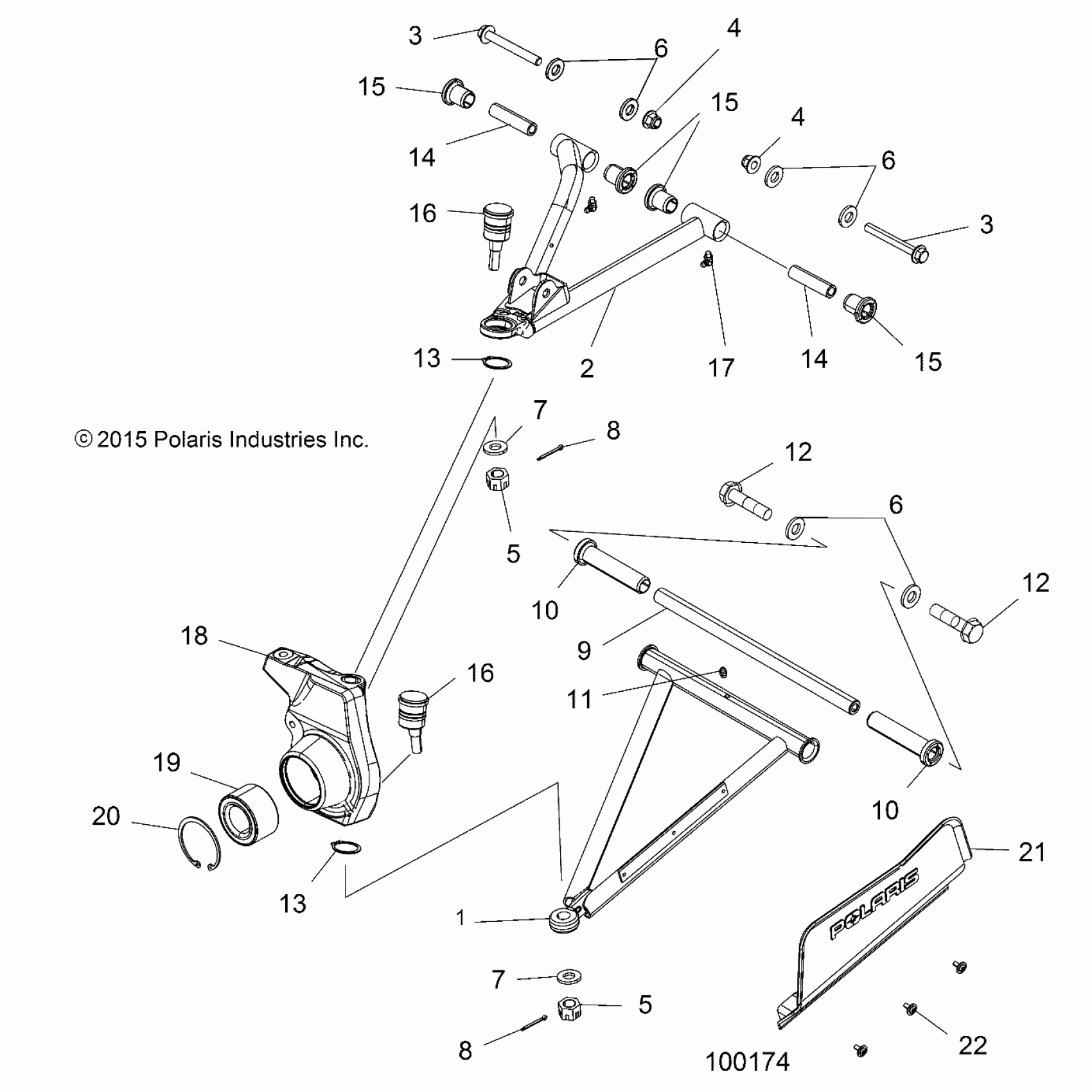

Polaris SPORTSMAN 570 HUNTER EDITION (R05) - A20SHD57A9 SUSPENSION, FRONT - A20SHD57A9 (100174) Diagram

#

Description
Price

-

K-HD,BUSHING,SUSP,SPM,570,SP,16+ [INCL. 9,10, AND14 HD OPTIONS]

2830563

$215.99

1

CONTROL, ARM, LOWER, FRONT, LH, BLACK

1020987-067

$107.99

1

CONTROL, ARM, LOWER, FRONT, RH, BLACK

1020988-067

$119.99

1

CONTROL, ARM, LOWER, FRONT, LH, BLACK

1020987-067

$107.99

1

CONTROL, ARM, LOWER, FRONT, RH, BLACK

1020988-067

$119.99

2

CONTROL, ARM, UPPER, FRONT, LH, BLACK

1020527-067

$131.99

2

CONTROL, ARM, UPPER, FRONT, RH, BLACK

1020528-067

$131.99

3

PIN-COTTER 1/8X1 1/2-Y

7515472

$2.39

3

PIN-COTTER 1/8X1 1/2-Y

7515472

$2.39

4

NUT

7542439

$1.49

4

NUT

7542439

$1.49

5

NUT, CASTLE

7547336

$11.19

5

NUT, CASTLE

7547336

$11.19

6

WASHER

7556153

$1.99

6

WASHER

7556153

$1.99

6

WASHER

7556153

$1.99

7

WASHER

7556212

$8.79

7

WASHER

7556212

$8.79

8

PIN, COTTER

7661404

$4.79

8

PIN, COTTER

7661404

$4.79

9

SHAFT-A-ARM,C-BORE

5139929

$27.99

10

BUSHING, LONG

5436973

$5.19

10

ASM-BUSHING,HD,W/SEAL,6.75 FLG (HEAVY DUTY) [OPTIONAL]

1543326

$12.79

10

BUSHING, LONG

5436973

$5.19

10

ASM-BUSHING,HD,W/SEAL,6.75 FLG (HEAVY DUTY) [OPTIONAL]

1543326

$12.79

11

FITTING-LUB,1/4-28-STR/1792-Y

7080433

$1.49

12

SCR-3/8-24X1 3/4,HX,GR5,P30,Y [TO 9/9/2019]

7520340

Unavailable

12

SCR-3/8-24X1 3/4,HX,GR8,P30,Y [FROM 9/9/2019]

7521149

$3.19

12

SCR-3/8-24X1 3/4,HX,GR5,P30,Y [TO 9/9/2019]

7520340

Unavailable

12

SCR-3/8-24X1 3/4,HX,GR8,P30,Y [FROM 9/9/2019]

7521149

$3.19

13

Ring, Retainer, External

7710533

$2.39

13

Ring, Retainer, External

7710533

$2.39

14

SHAFT, A-ARM, 63.5MM

5137346

$14.39

15

BUSHING-STANDARD,ORV

5439874

$2.39

15

ASM-BUSHING,HD,W/SEAL,5.23 FLG [OPTIONAL]

1543367

$10.39

15

BUSHING-STANDARD,ORV

5439874

$2.39

15

ASM-BUSHING,HD,W/SEAL,5.23 FLG [OPTIONAL]

1543367

$10.39

15

BUSHING-STANDARD,ORV

5439874

$2.39

15

ASM-BUSHING,HD,W/SEAL,5.23 FLG [OPTIONAL]

1543367

$10.39

16

BALL, JOINT

7061230

$39.99

16

BALL, JOINT

7061230

$39.99

17

FITTING, ZERK

7080510

$5.59

18

ASM., STEERING, KNUCKLE, LH [INCL., KNUCKLE, 19, 20]

1824434

$283.99

18

ASM., STEERING, KNUCKLE, RH [INCL., KNUCKLE, 19, 20]

1824435

$271.99

18

KNUCKLE, STEERING, MACH, LH

5139686

$63.99

18

KNUCKLE, STEERING, MACH, RH

5139687

$163.99

19

BEARING-WHEEL, 35X64X37MM

3514634

$39.99

19

BEARING-WHEEL,35X64X37MM HD [OPTIONAL]

3515088

$63.99

20

RING, RETAINING, INTERNAL

7710507

$2.39

21

Shield, CV, Front, LH, Black

5435028-070

$23.99

21

Shield, CV, Front, RH, Black

5435029-070

$23.99

22

Screw

7512084

$1.49
