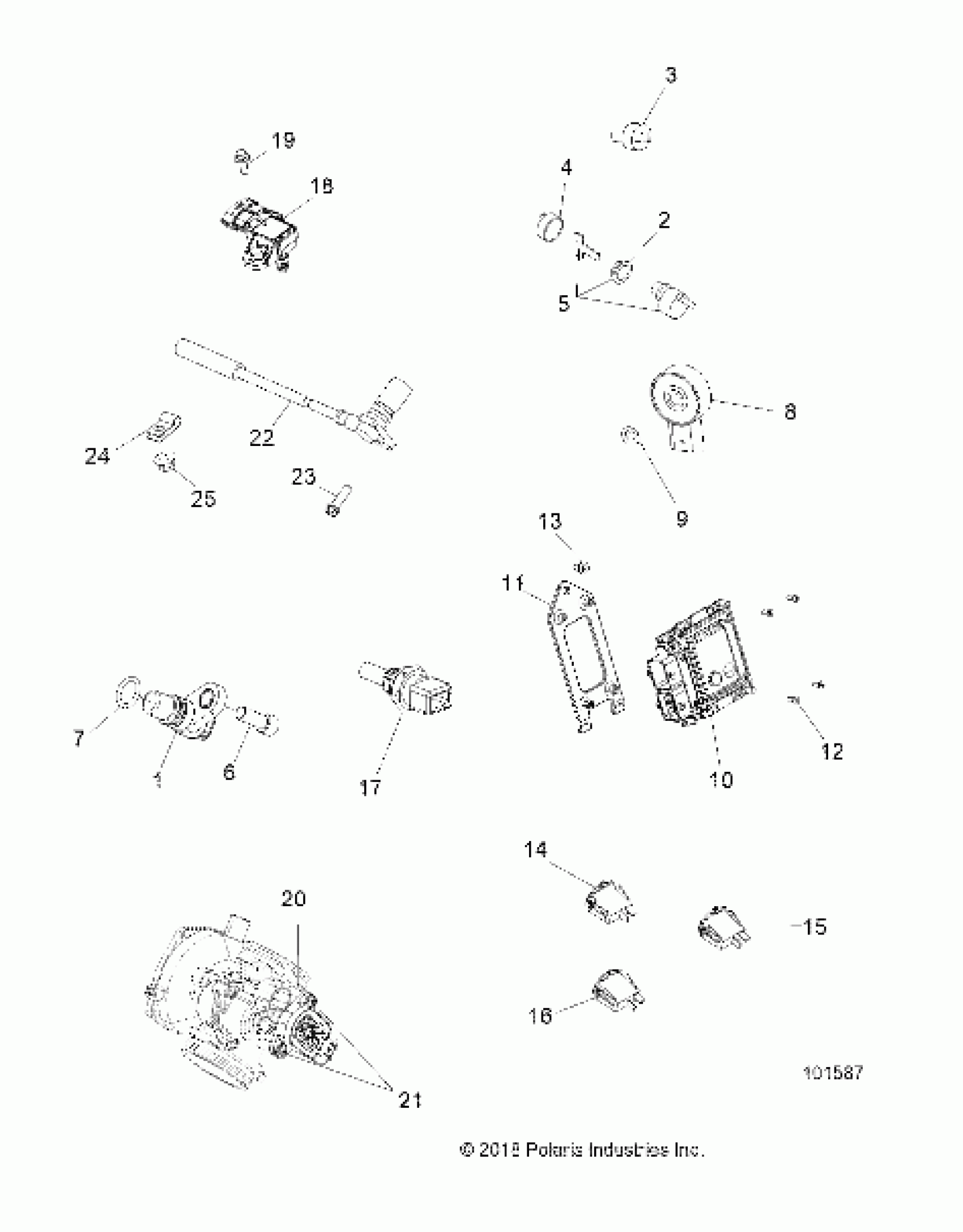

Polaris SPORTSMAN 570 HUNTER EDITION (R05) - A20SHD57A9 ELECTRICAL, SWITCHES, SENSORS and ECM - A20SHD57A9 (101587) Diagram

#

Description
Price

1

SENSOR-SPEED,TRANS

4013908

Unavailable

2

NUT-IGNITION SWITCH,HOBBS

5433733

$23.99

3

SWITCH-BRK,1/8"-27 NPTF,SEALED [BRAKE PRESSURE]

4110164

Unavailable

4

KEY SWITCH KEY COVER

5433534

$12.35

5

SWITCH-KEY,3 POSITION,SEALED [INCL. 5,7,KEY]

4015033

Unavailable

6

SCREW

3234247

$5.59

7

O-RING

3234302

$7.19

8

SWITCH, ROTARY, 2 PIN RESISTIVE [GEAR POSITION]

7661999

$111.99

9

RING, RETAINING

3233834

$10.39

10

ECU BASE

4012838

$440.69

11

MNT-ECM,REAR,BLK

5438708-070

$10.39

12

SCREW

7519091

$3.19

13

Rivet

7661855

$1.49

14

Switch, Worklight, On/Off

4011074

$49.99

15

SWITCH-HANDWARMER,SPDT

4011319

$54.99

16

SWITCH, THUMB WARMER, HI/LO, V

4012483

$43.99

17

SENSOR-THERMISTER

4010644

$87.13

18

SENSOR-TMAP DSS3-TF

2411528

$93.08

19

BOLT

7516603

$10.39

20

ASM., SENSOR

3131705

$187.99

21

SCREW

3131628

$5.27

22

SENSOR, CRANK POSITION

2411719

$101.17

23

SCREW

7518576

$3.19

24

CLAMP-CABLE

7080367

$2.39

25

NUT-5/16-18,NYLOC,THIN-Y

7542344

$3.99
