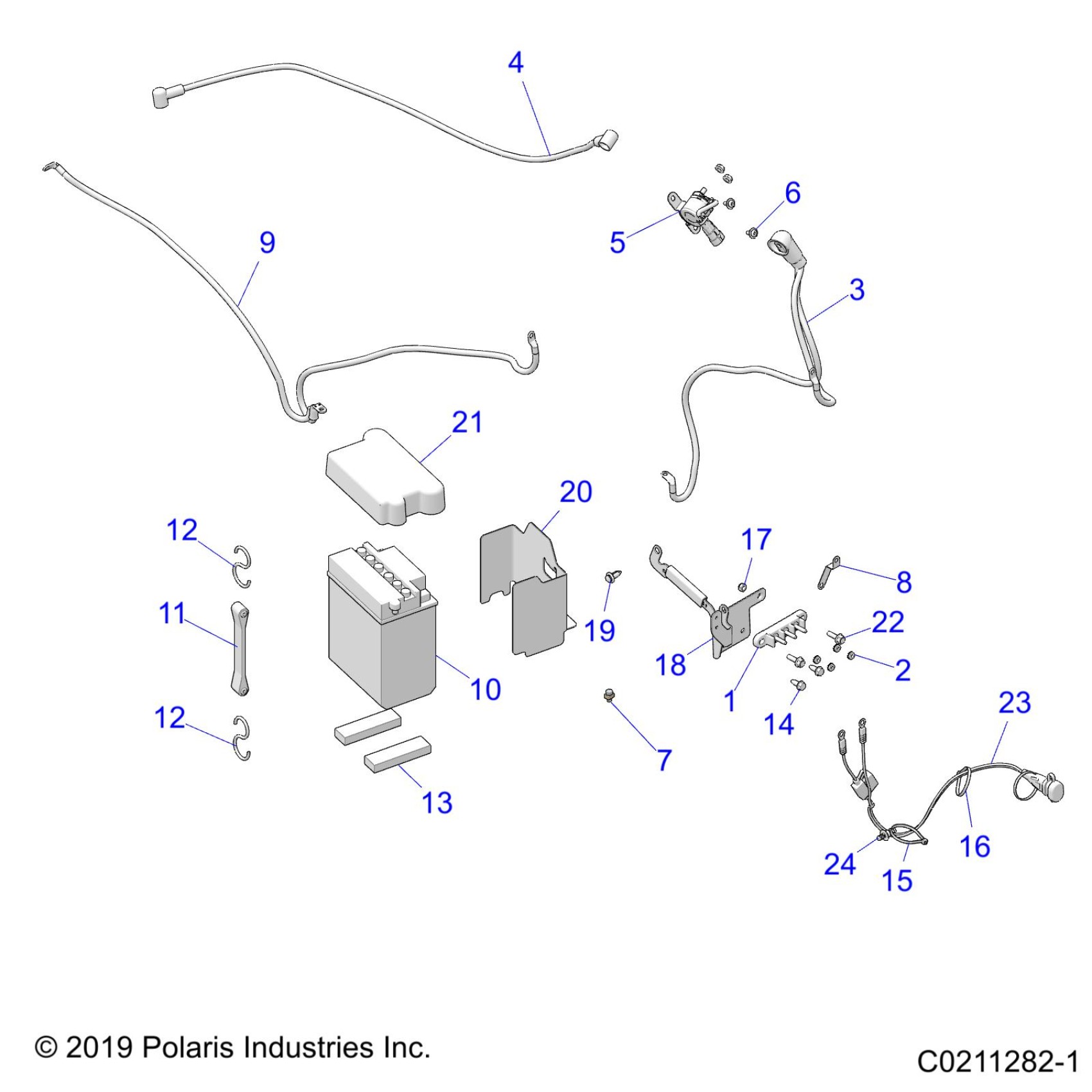

Polaris SPORTSMAN 570 HUNTER EDITION (R05) - A20SHD57A9 ELECTRICAL, BATTERY - A20SHD57A9 (C0211282-1) Diagram

#

Description
Price

1

BLOCK, TERMINAL, 3 POST

4011892

$27.99

2

NUT

7547341

$1.49

3

CABLE, BATTERY, 6 GAUGE

4014935

$55.99

4

INSULATOR-CABLE [USE WITH 4014424-750]

5410346

$6.39

4

CABLE, BATTERY, 6 GAUGE, FLAT

4014424-750

$43.99

5

SOLENOID, STARTER

4012001

Unavailable

6

Screw

7512084

$1.49

7

KIT, BATTERY BOLT

2202213

$3.79

8

STRAP, GROUND

5260167

$14.07

9

CABLE, BATTERY, 6 GAUGE

4014936

$51.99

10

BATTERY-14AH

4140006

$99.99

10

TUBE-BATTERY VENT,650 MM

5432077

$8.08

11

Strap, Battery Hold Down

5412499

$4.62

12

Hook, Battery Strap

7010032

$1.59

12

Hook, Battery Strap

7010032

$1.59

13

Foam, Cover

5813265

Unavailable

14

SCREW [TO 7/1/2019]

7517386

$1.49

15

CABLE-TIE,DIA12-50MM,WTHR-RES.

7080138

$2.41

16

CABLE-TIE,10-102MM,WEATH.-RES.

7080761

$2.39

17

NUT-6MM X 1 NYLOK-Z [QTY 2 TO 8/26/2019]

7546703

$1.49

17

NUT-M6 FLANGE,NYLOC [FROM 8/26/2019]

7547274

$1.49

18

BRKT-FUSE BLOCK [TO 8/7/2019]

5259734

$27.99

18

BRACKET, FUSE BLOCK [FROM 8/7/2019][TO 9/26/2019]

5262951

Unavailable

18

BRACKET, FUSE BLOCK [FROM 9/26/2019][TO 3/25/2020]

5269271

$14.39

18

BRKT-FUSE BLOCK [FROM 3/25/2020]

5270030

$14.39

19

Rivet

7661855

$1.49

20

BRACKET, BATTERY, GUARD

5259571

$31.99

21

BATTERY, COVER

5431769

$14.39

22

SCR-HXFL-M6X1.0X20 8.8 RIE [FROM 7/1/2019]

7519121

$3.99

23

PLUG-HARNESS BATTERY CHARGE

2415060

$27.99

24

CLIP FIR-TREE,DIA6-33MM

7081496

$4.79
