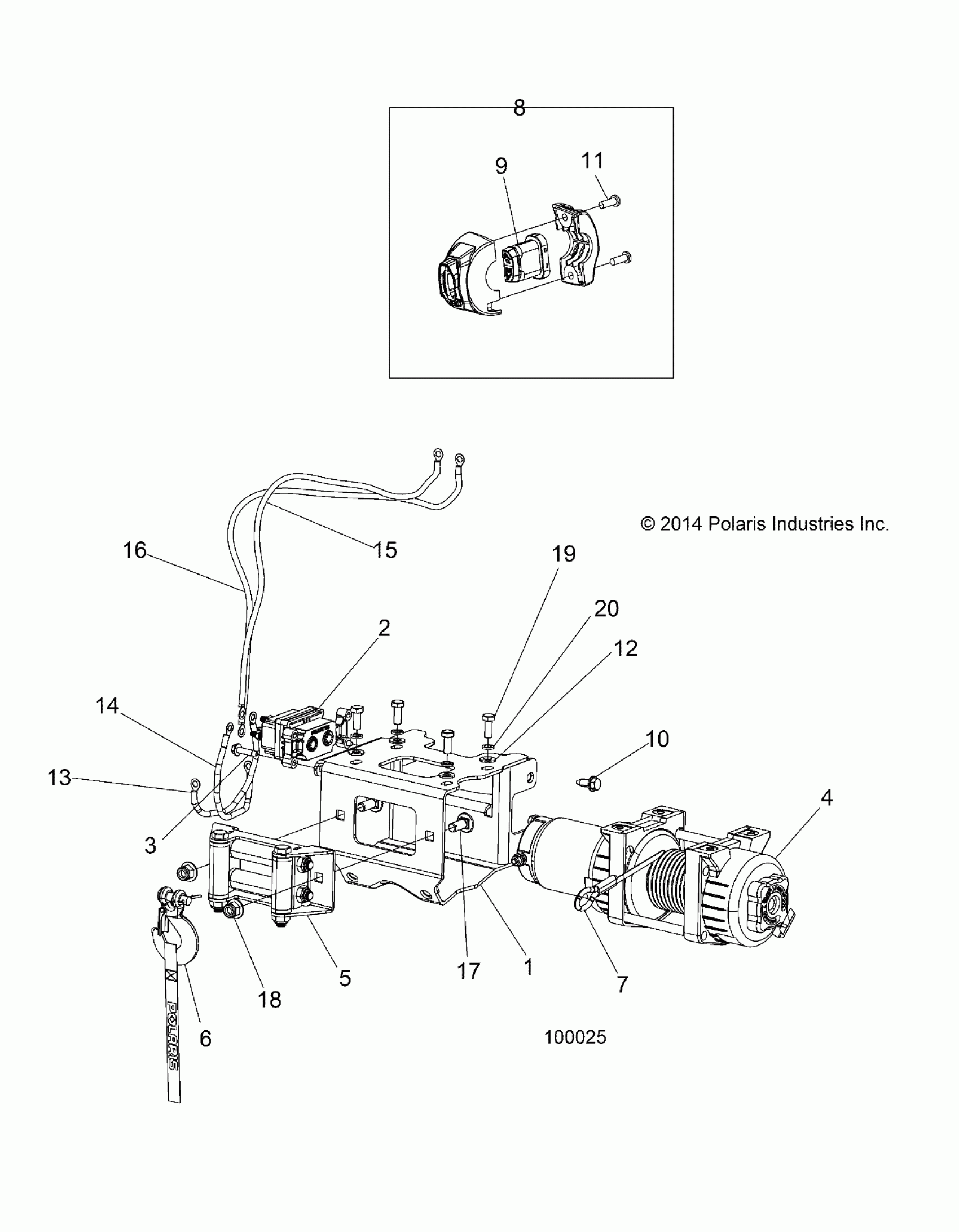

Polaris SPORTSMAN 570 HUNTER EDITION (R05) - A20SHD57A9 CHASSIS, WINCH - A20SHD57A9 (100025) Diagram

#

Description
Price

1

WELD-WINCH MT BRKT,CTR,ATV

1022577

$111.33

2

CONTACTOR

4015095

$104.49

3

SCREW

7519342

$1.99

4

WINCH, POLARIS, 2.5

2206563

$519.99

5

ROLLER, FAIRLEAD

2411848

$80.94

6

HOOK-LATCH,WINCH [INCL. STRAP]

2411836

$10.44

6

STRAP-WINCH,HOOK

7082085

$1.99

7

CABLE, WINCH, STEEL

2878890

$44.43

8

K-WINCH SWITCH,HBR,EU,ATV

2207175

$64.75

9

SWITCH-HBR,EU,ATV

4017111

$64.75

10

BOLT-M8X1.25X25,HXFLG-OLIVE D

7518514

$1.59

11

SCREW

7518238

$3.97

12

WASHER, FLAT

7555770

$0.99

13

CABLE, WINCH, YELLOW, 6 GAGE

4013468-300

$36.41

14

CABLE, WINCH, BLUE, 6 GAGE

4013469-300

$36.41

15

CABLE-POWER,WINCH,BLK #6,530MM

4013470-530

$36.41

16

CABLE-POWER,WINCH,RED #6,510MM

4013471-510WC

$36.41

17

SCREW

7519372

$2.38

18

NUT

7547423

$3.97

19

Screw

7518097

$3.97

20

Washer, Lock

7556111

$1.59
