- SPORTSMAN 570 HUNTER EDITION (R05) - A20SHD57A9
BRAKES, BRAKE LINES - A20SHD57A9 (49ATVBRAKELINE15570SP)

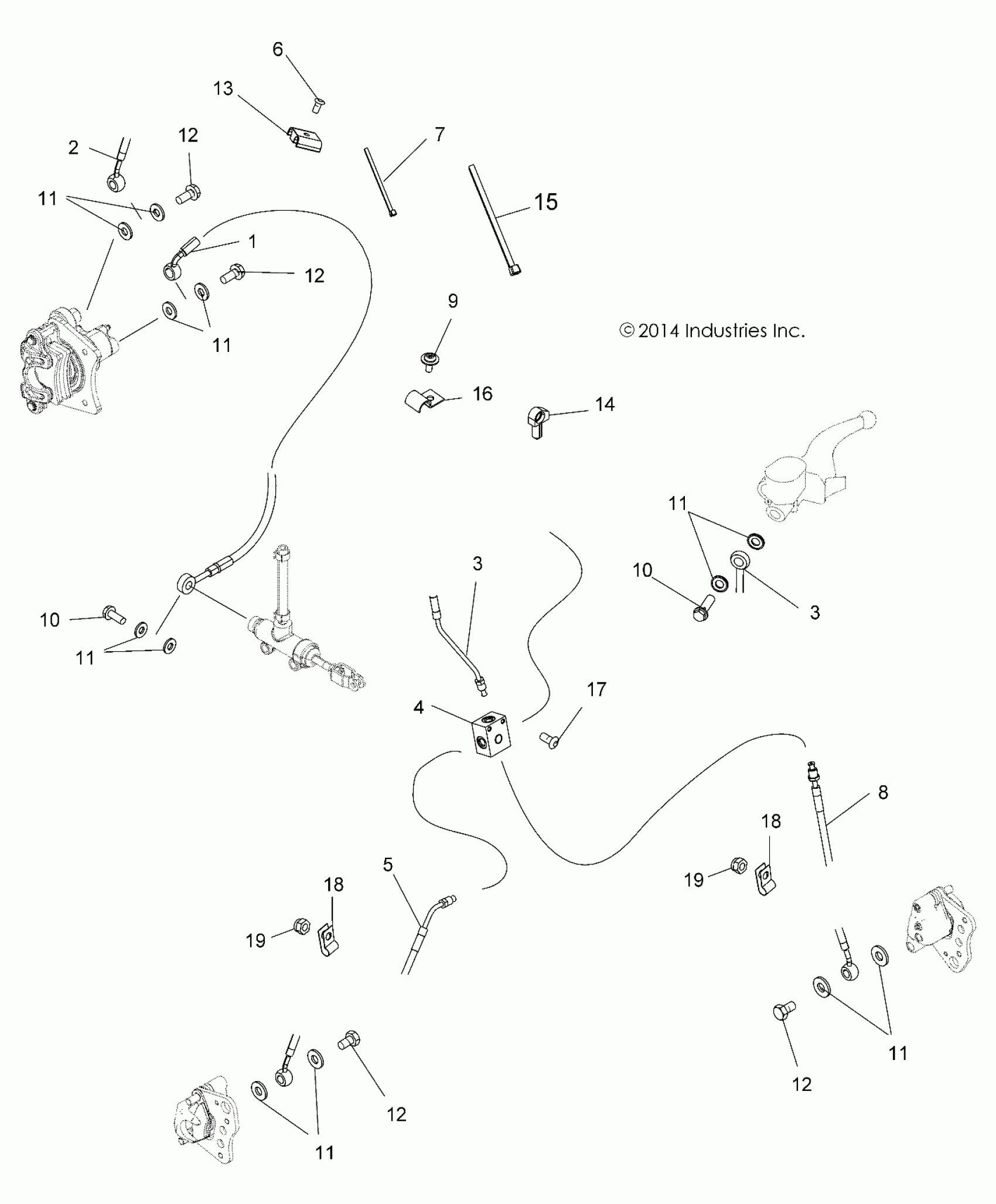

Polaris SPORTSMAN 570 HUNTER EDITION (R05) - A20SHD57A9 BRAKES, BRAKE LINES - A20SHD57A9 (49ATVBRAKELINE15570SP) Diagram
#
Description
Price
1
LINE-BRK,RR,38,70B,20B,90,G2
1913040
$103.99
2
LINE-BRK,RR,81,70B,90F,70,G2
1913039
$107.99
3
LINE-BRK,MCT,22,30B,CF1,0,JF
1913044
$63.99
3
LINE-BRK,MCT,22,30B,CF1,0,JF
1913044
$63.99
4
FITTING, CROSS
7052292
$39.99
5
LINE, BRAKE, FRONT
1912386
$67.99
6
Screw
7517756
$1.49
7
CABLE-TIE,DIA12-50MM,WTHR-RES.
7080138
$2.41
8
LINE, BRAKE, LEFT FRONT
1912385
$59.99
9
SCREW
7512024
$4.79
10
BOLT-BANJO, 10MM X 1.25-6G
1910958
$7.99
10
BOLT-BANJO, 10MM X 1.25-6G
1910958
$7.99
11
SEAL
5413212
$4.79
11
SEAL
5413212
$4.79
11
SEAL
5413212
$4.79
11
SEAL
5413212
$4.79
11
SEAL
5413212
$4.79
11
SEAL
5413212
$4.79
12
BOLT, BANJO
1910499
$5.59
12
BOLT, BANJO
1910499
$5.59
12
BOLT, BANJO
1910499
$5.59
12
BOLT, BANJO
1910499
$5.59
13
CLIP, RETAINING
7670126
$4.79
14
CLIP-NYLON,C,FIR-TREE
7662310
$4.79
15
CABLE-TIE,10-102MM,WEATH.-RES.
7080761
$2.39
16
CLIP, HALF
7081940
$3.99
17
Screw
7512084
$1.49
18
CLIP-P,W/CUSHION,BLACK,VINYL
7082067
$4.39
18
CLIP-P,W/CUSHION,BLACK,VINYL
7082067
$4.39
19
NUT, NYLOK
7547025
$2.63
19
NUT, NYLOK
7547025
$2.63
