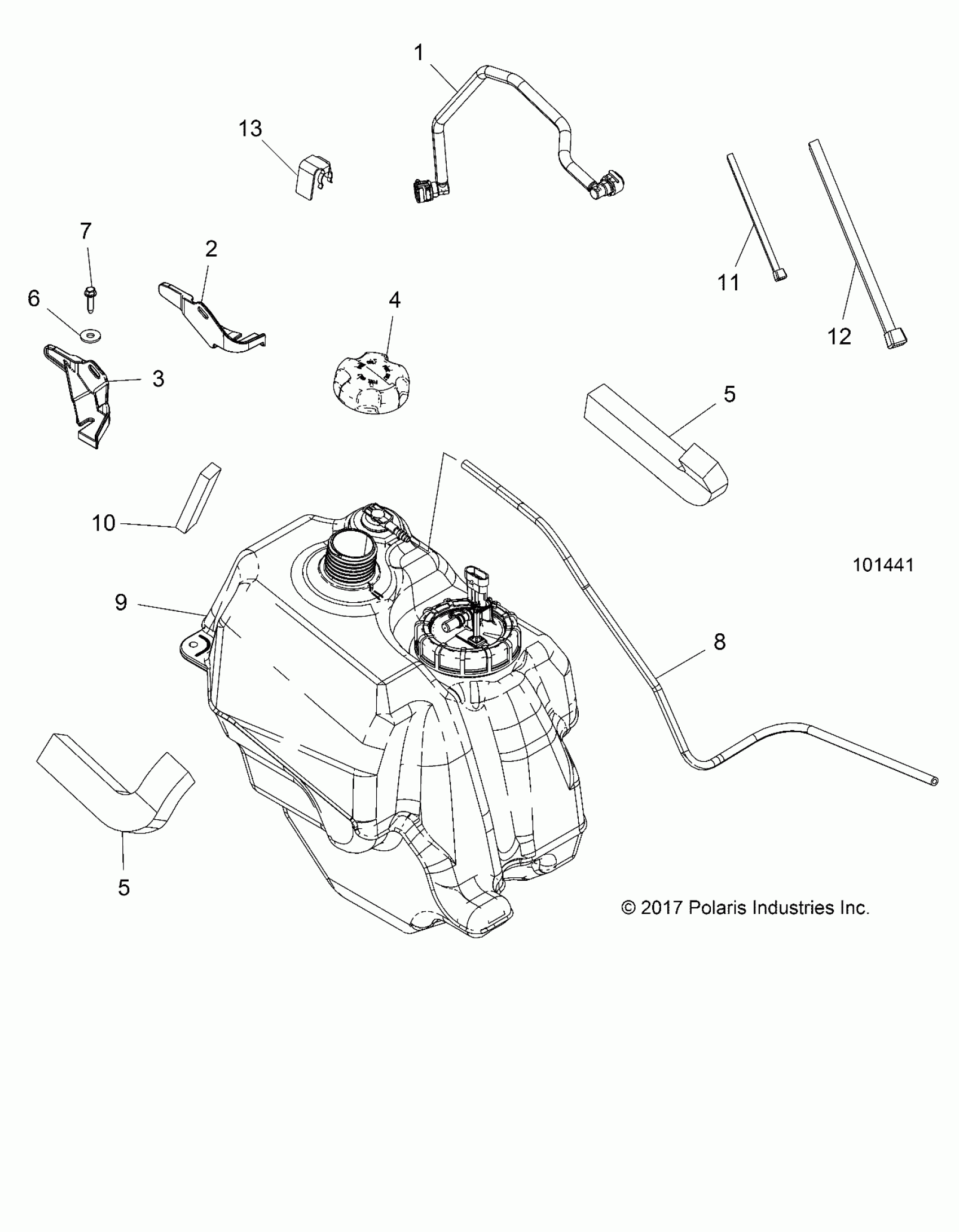

Polaris SPORTSMAN 570 HUNTER EDITION (R05) - A20SHD57A9 BODY, FUEL TANK ASM. - A20SHD57A9 (101441) Diagram

#

Description

Price

1

ASM., FUEL LINE, HARD

2521664

$51.99

2

BRKT-SEAT BASE,CAB MNT,PP,LH

5452276

$5.59

3

BRKT-SEAT BASE,CAB MNT,PP,RH

5452277

$5.59

4

CAP-GAS TANK

5439075

$23.99

5

FOAM, SEAL

5813255

$7.19

5

FOAM, SEAL

5813255

$7.19

6

WASHER-.327X.875X.090,FL-Y

7555960

$3.99

7

Screw

7515179

$2.39

8

FUEL LINE-86 CENTIMETERS

8450040-86

$11.99

9

ASM., FUEL TANK

2522071

Unavailable

9

K-FUEL PUMP,ATV570 [INCLS. FUEL PUMP, GASKET, NUT, INSTRUCTIOINS]

2208126

Unavailable

10

Foam, Cover

5813265

Unavailable

11

CABLE-TIE,DIA12-50MM,WTHR-RES.

7080138

$2.41

12

CABLE-TIE,10-102MM,WEATH.-RES.

7080761

$2.39

13

COVER-FUEL LINE CONNECTOR

5454451

$8.79
