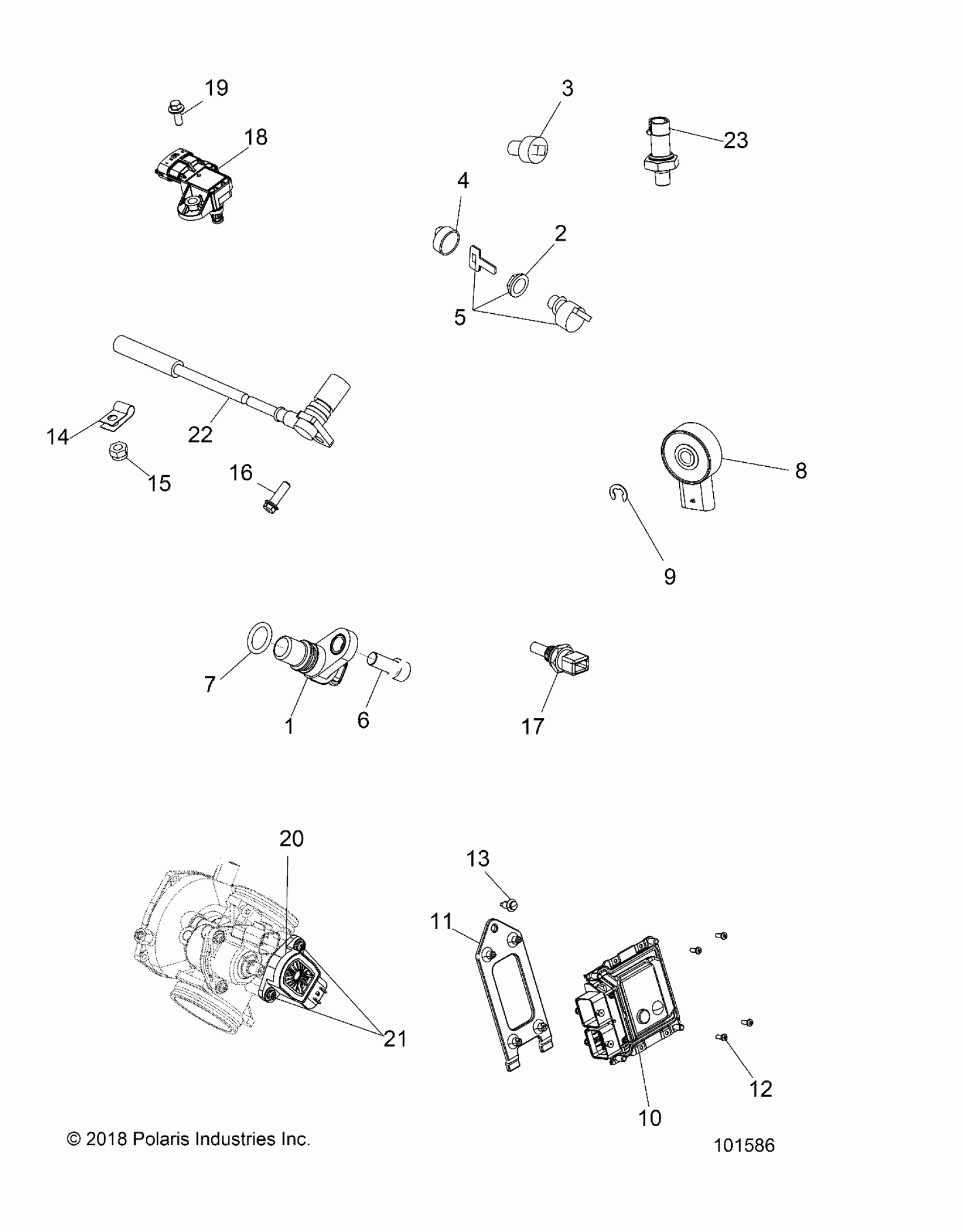

Polaris SPORTSMAN 570 EPS UTILITY PACKAGE (R04) - A20SEJ57A1/A4/A7/A9/B1/B4/B7/B9 ELECTRICAL, SWITCHES, SENSORS and ECM - A20SEJ57A1/A4/A7/A9/B1/B4/B7/B9 (101586) Diagram

SENSOR-SPEED,TRANS

4013908

$109.27

NUT-IGNITION SWITCH,HOBBS

5433733

$23.81

SWITCH-BRK,1/8"-27 NPTF,SEALED [A1/A4/A7/A9]

4110164

$204.24

SWITCH-BRK,1/8"-27 NPTF,SEALED [B1/B4/B7/B9]

4015069

$111.10

KEY SWITCH KEY COVER

5433534

$13.75

SWITCH-KEY,3 POSITION,SEALED [INCL. 5,7,KEY]

4015033

$62.92

BLANK, KEY, SERIES 2000, 2100, 6700, 6800 NOTE: YOUR KEY CAN BE DUPLICATED ONLY BY OBTAINING A KEY BLANK FROM POLARIS AND HAVING IT CUT BY MATING IT WITH YOUR EXISTING KEY.

4010278

$14.56

Blank, Key, Series 2200, 2300, 2700, 2800. NOTE: YOUR KEY CAN BE DUPLICATED ONLY BY OBTAINING A KEY BLANK FROM POLARIS AND HAVING IT CUT BY MATING IT WITH YOUR EXISTING KEY.

4010321

$14.29

SCREW

3234247

$5.56

O-RING

3234302

$7.27

SWITCH, ROTARY, 2 PIN RESISTIVE [GEAR POSITION]

7661999

$117.37

RING, RETAINING

3233834

$10.32

ECU BASE

4012838

$569.99

ECM-NO START,ME17

4014125

$749.99

MNT-ECM,REAR,BLK

5438708-070

$10.51

SCREW

7519091

$3.17

Rivet

7661855

$1.19

CLAMP-CABLE

7080367

$2.38

NUT-5/16-18,NYLOC,THIN-Y

7542344

$3.97

SCREW

7518576

$3.17

SENSOR-THERMISTER

4010644

$91.97

SENSOR-TMAP DSS3-TF

2411528

$97.13

BOLT

7516603

$10.32

ASM., SENSOR

3131705

$232.74

SCREW

3131628

$5.69

SENSOR, CRANK POSITION

2411719

$105.22

SWITCH - BRAKE

4015069

$111.10
